Gen 2 Ladder Adjustment
Part# 2583&2683
Ladder Adjustment Instructions
For the most adjustment, press in the top most steps buttons and then collapse ladder. If
more or less adjustment is needed. The second thru the eighth step can be adjusted in
smaller increments. Depress the ladder buttons and collapse the ladder slightly, then
release buttons and compress ladder till it stops in the half adjustment position. Ensure
that all sections of the ladder are fully locked before use. Ladder should be solid when
putting downward pressure on it.
Ensure ladder is level on a flat, non-slip solid surface. Tie down ladder to vehicle if
needed to prevent movement.
Ladder is required to be in a locked position to support half of the tent. Failure to
properly adjust will cause damage to the tent, ladder, or mounting system.

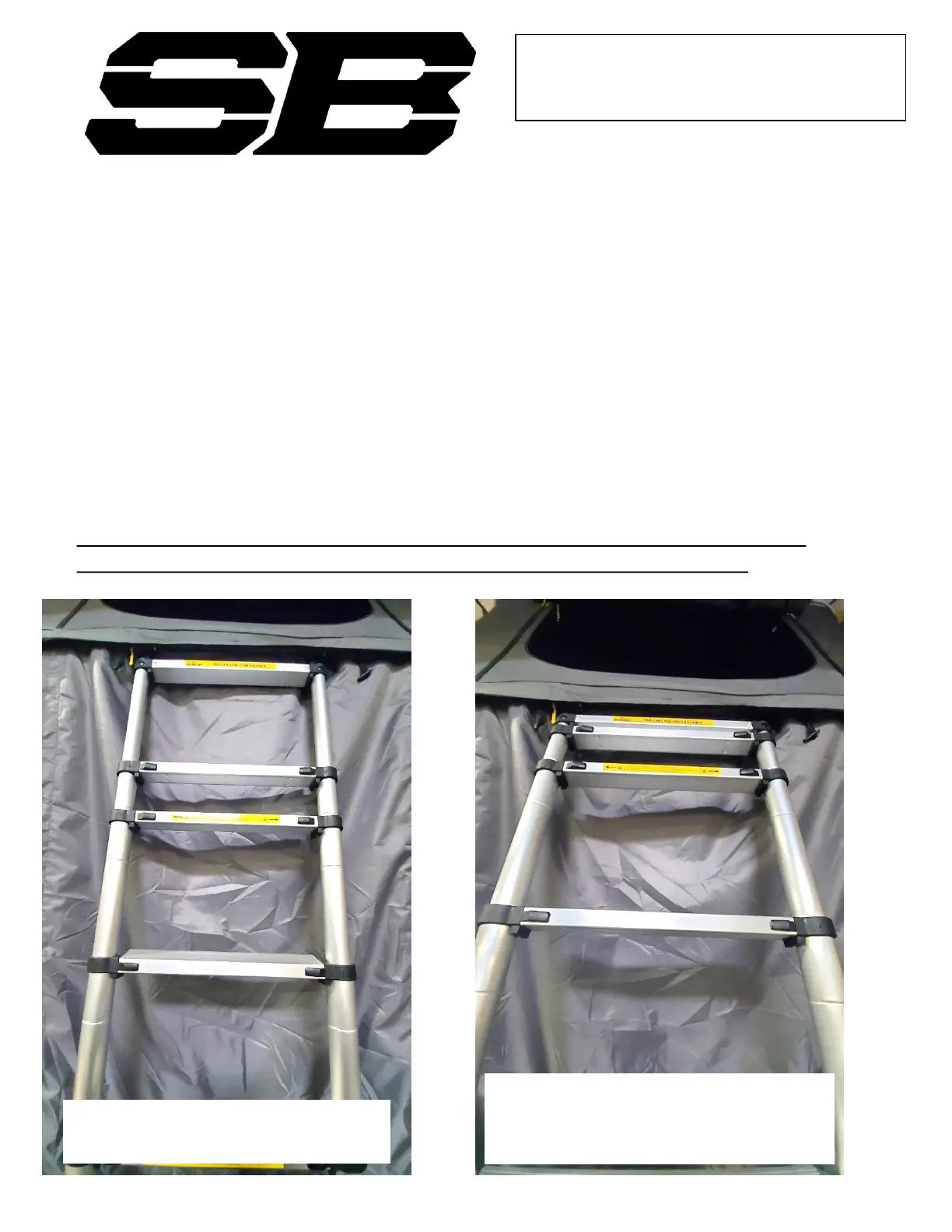

Top rung fully collapsed, second
from the top half way collapsed in
the locked position.
Second from the top rung shown
in the half way locked position.
Periodically check torque
of all hardware.
