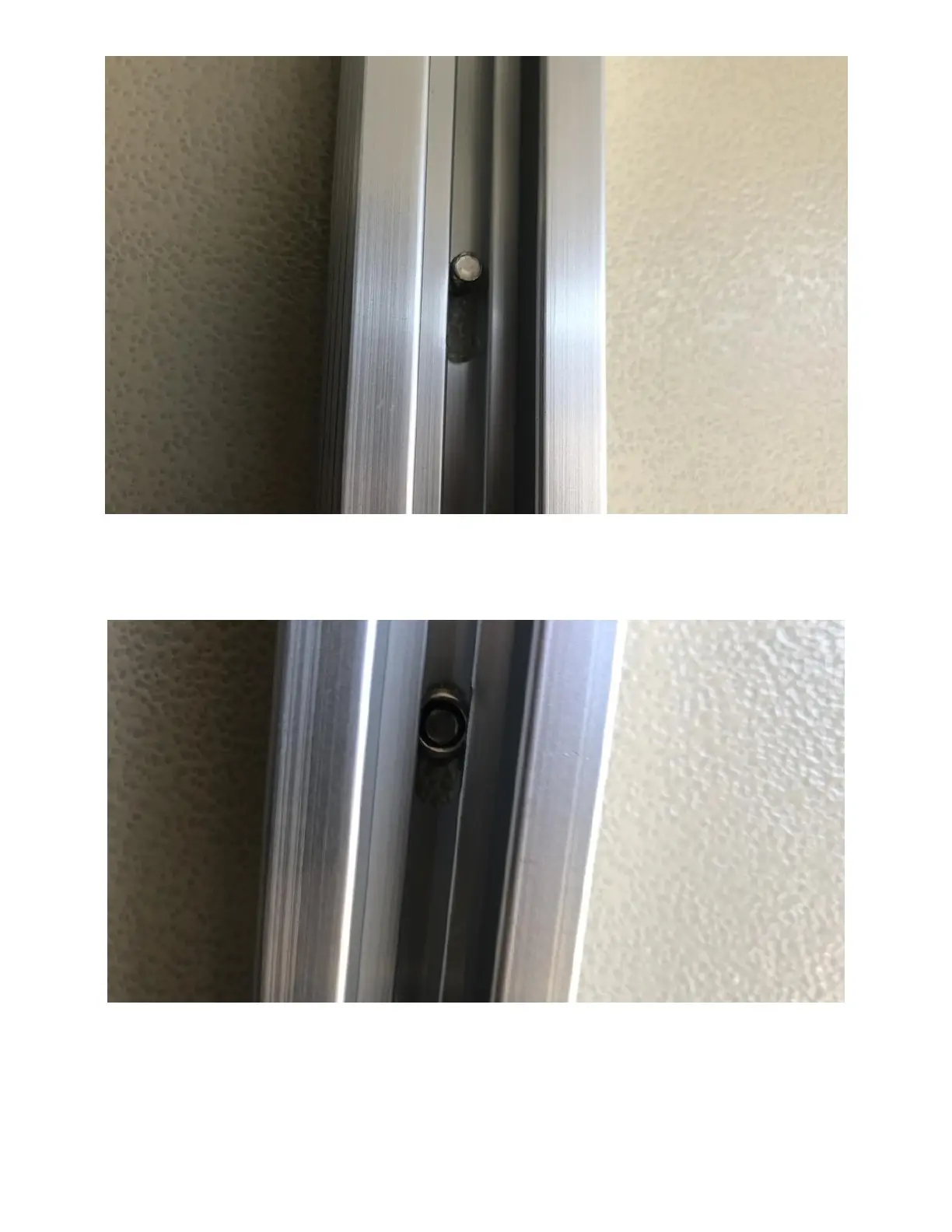

Figure D

5. Slide the 6mm nyloc nuts into the top of the mounting rails and screw the 6mm bolts in, tightening the tent base

to the mounting rails using a 10mm wrench (Figure E).

Figure E

6. Using self-tapping screws and washers (provided), attach the outside edges of the mounting rails to the tent

base through the pre-drilled holes (Figure F).
