Smittybilt Overlander XL User Manual

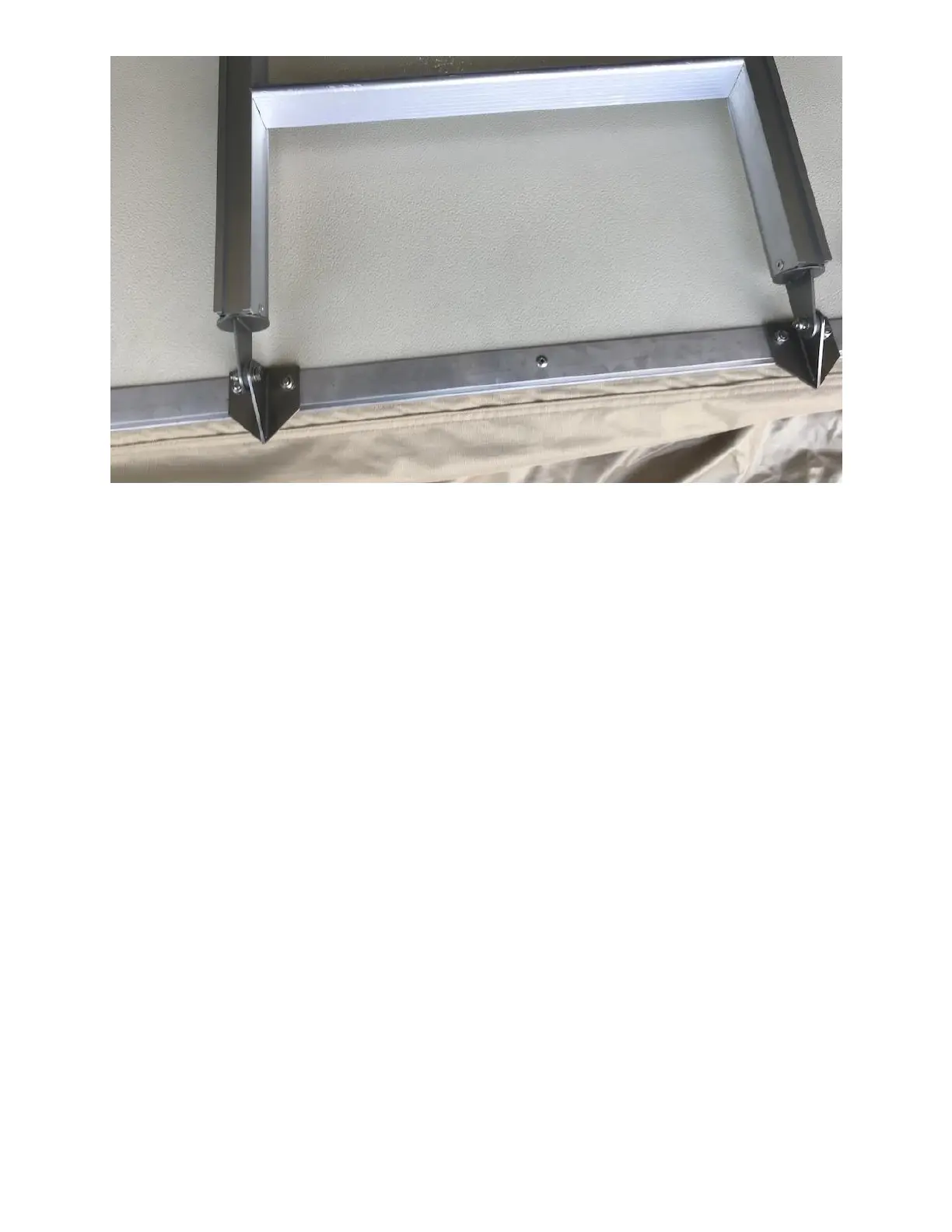

Figure H
9. Slide the mount bolts into each mounting rail and tighten supplied bracket to roof rack (configuration will
depend on each vehicle's roof rack).
10. Remove the protective cover if this hasn’t already been done and undo the Velcro straps on each of the sides of
the tent.
11. Slide out the ladder to full extension and walk it backward to unfold/open the tent (Figure I).

Smittybilt Overlander XL Specifications

General

Type	Roof Top Tent
Waterproof	Yes
Annex	Optional
Ladder Material	Aluminum
Weight Capacity	770 lbs
Mounting Type	Roof Rack Mount
Fabric	600D Polyester
Mattress	High-density Foam
Rainfly Material	420D Polyester Oxford
Base Material	Aluminum
Capacity	3-4 Persons
