Smittybilt SB2843 HD - Install Wheel Mount Studs & Bracket

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W Artesia, Compton, CA 90220
Revised 9.3.15
Installation Instructions:
(Part # SB2843 HD)
2007-2014 Jeep JK HD Tire Carrier Kit
Step 7: Press the wheel mount studs (90-4219), in your desired pattern, into the tire mount
bracket base (93-9183). (Fig. E)
NOTE: The studs may be pressed into place. DO NOT use lug nuts to install the studs.

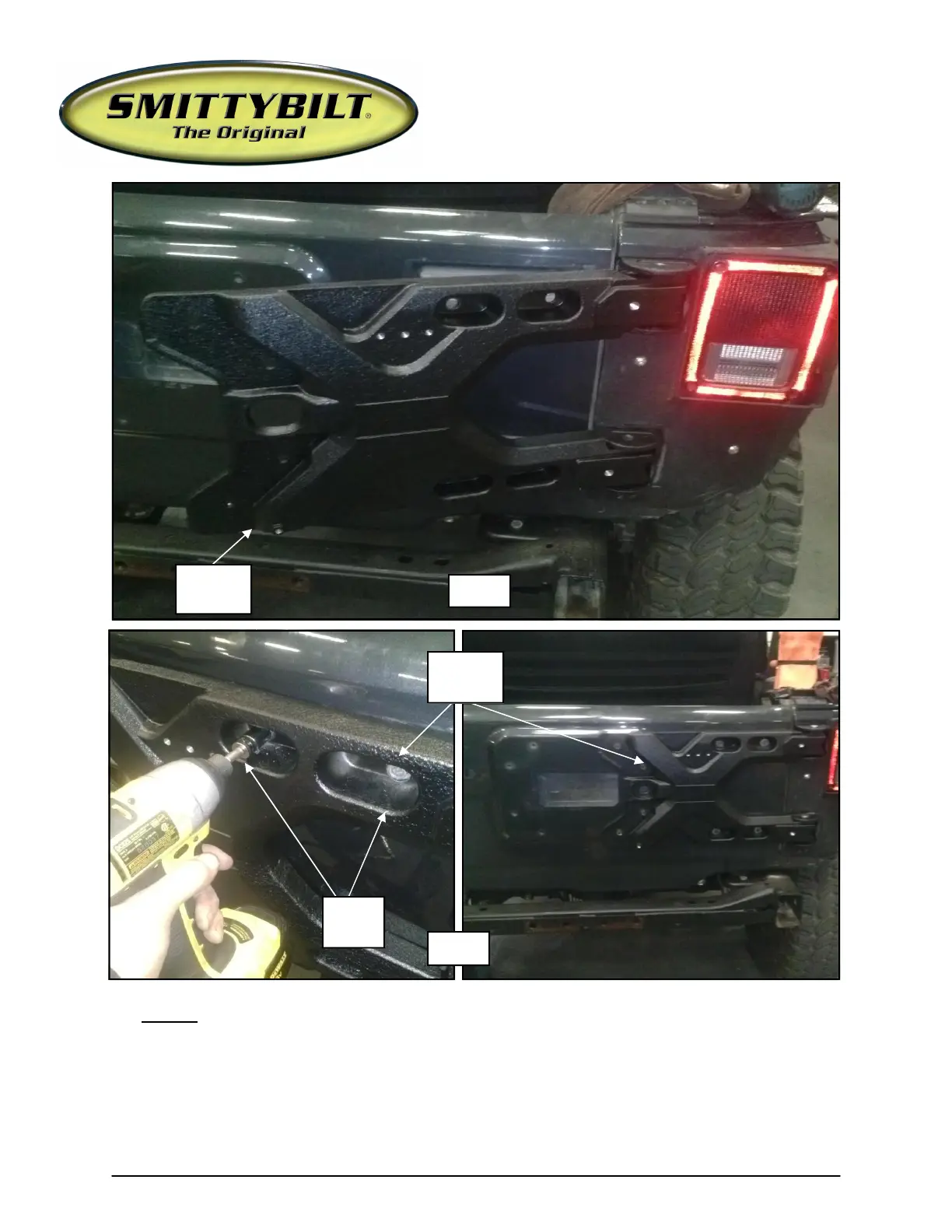

Fig. D
HD Tire
Carrier
OE
Bolts
HD Tire
Carrier
Fig. C
