For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W Artesia, Compton, CA 90220
Revised 12.09.09
Installation Instructions:
(Part # SB76654)
87-06 Jeep TJ/YJ XRC Tire Carrier

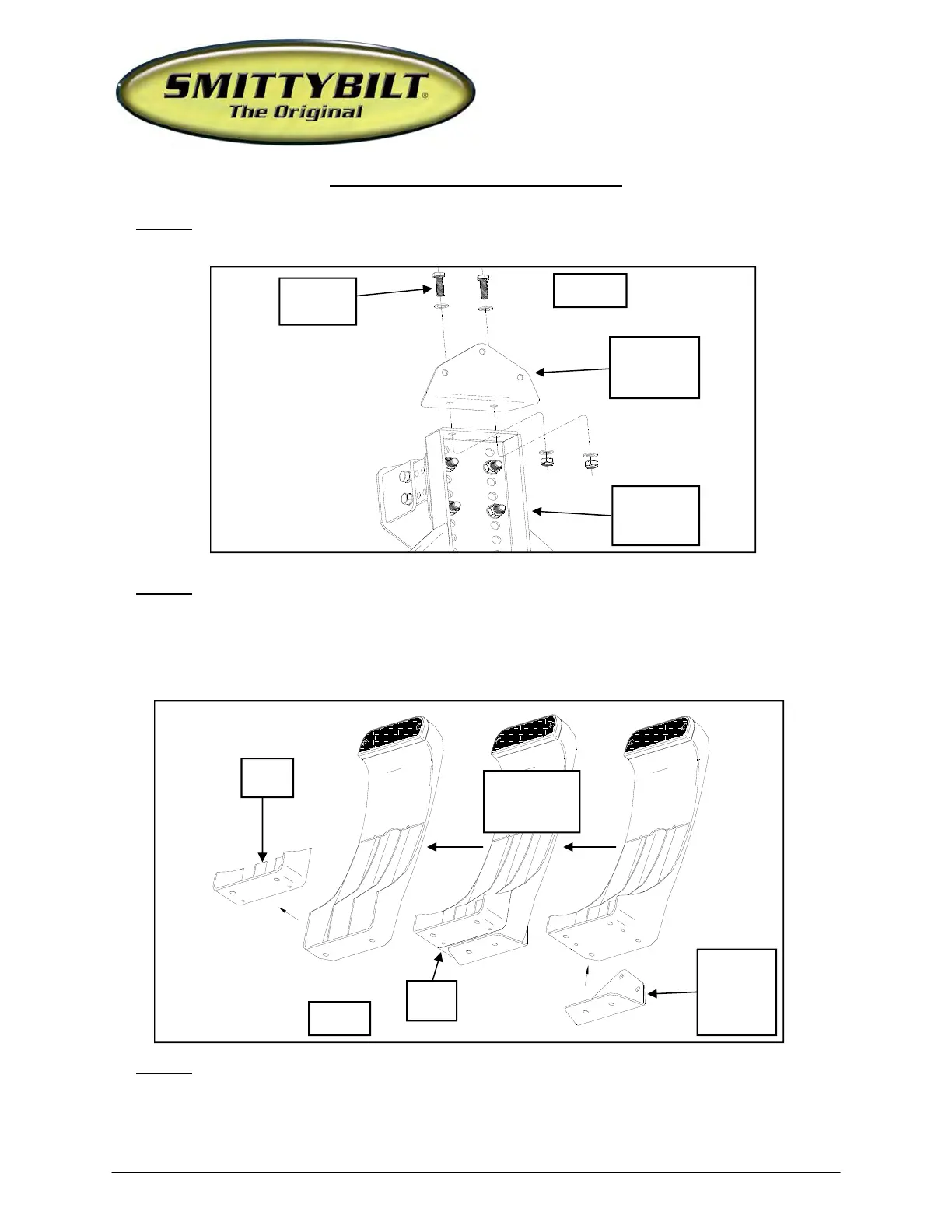

Third Brake Light Installation:
Step 1: Install the 3rd brake light bracket (93-5663) to the top of the tire carrier using the
supplied 3/8” X 1” bolts. (Fig. H) Torque the bolts according to the chart on page 9.
Step 2:
Place the OE 3rd brake light plastic housing flush against the back of the 3rd brake
light bracket (93-5663). Using the bracket as a guide, scribe a line across the bottom of the
plastic light housing. Trim the plastic housing along the scribed line. (Fig. I)
NOTE: Depending on the size of the spare tire, the OE 3rd brake light plastic housing
may need additional trimming. Use the spare tire as a guide for any additional trimming.
Step 3: Once the OE 3rd brake light plastic housing has been properly trimmed, place it
flush against the back 3rd brake light bracket (93-5663). Use the (3) holes in the bracket as a
OE 3rd
Brake Light
Housing
Cut
Line
Cut
Piece
(Fig I)
3rd Brake
Light
Bracket
93-5663
3/8” X 1”
bolts
Tire Carrier
Brace
91-5642
93-5663 3rd
Brake Light
Bracket
(Fig H)
To Next Page
