Installation Instructions
Scout Trailer Kit
Part#87400/87400-01
Kitchen drawer:
• Remove carpet from slider if placing a stove or heating device on it.
• Extend drawer fully, then fold down drawer supports. Lock legs by tightening the wing bolts.
• Periodically clean and lube legs with Break-free CLP. Wipe off excessive oil.
• Extra space behind the drawer can be used to hold a basin, trash bag or other object.
• Make sure to stow legs before closing drawer.
• 100 lb capacity when support legs are engaged.
• Drawer side may be repositioned by unbolting it and moving to the other side.

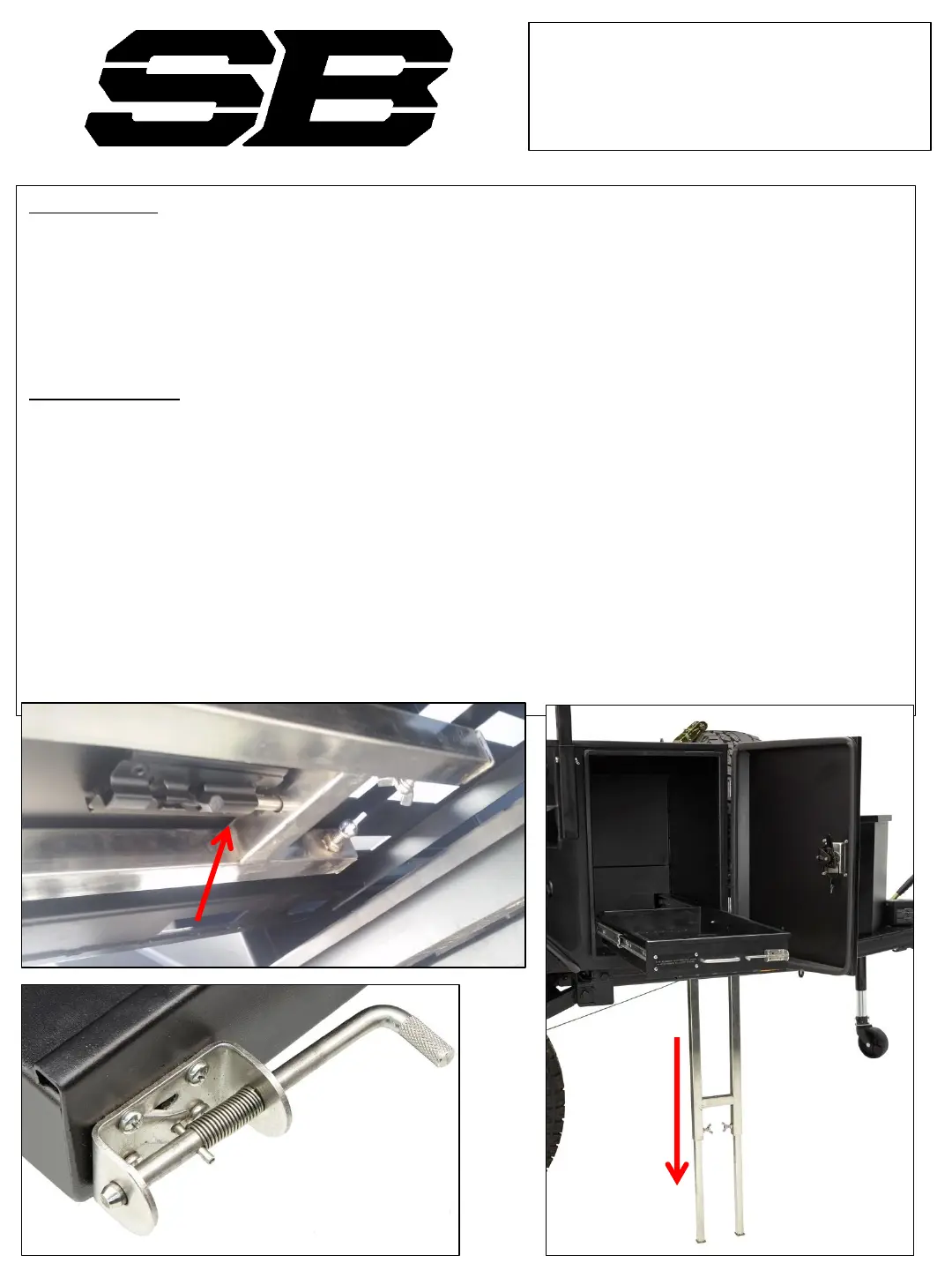

Generator drawer:
• Extend drawer fully, then fold down drawer supports. Lock legs by tightening the wing bolt.
• It is recommended to remove generator from drawer when ran for extended periods of time or when food
or other sensitive items are stored in the kitchen cabinet.
• Periodically clean and lube legs with Break-free CLP. Wipe off excessive oil.
• Make sure to stow legs before closing drawer.
• Slider features locking pin, make sure to engage pin when slider is stowed. Locking pin can be positioned to
stay open. Make sure it is in the hold open position when operating slider.
• It is HIGHLY recommended if you choose to keep your generator in the drawer and run for long periods of
time, that you re-route your exhaust system to an area below the trailer. Many generator exhaust systems
can be extended with the use of high temp hose silicon hose couplers and small diameter tubing. There are
also commercially made kits available. Check your local RV supply or generator supply. Do not disable the
spark arrestor.
• 100 lb capacity when support legs are engaged.
