WWW.SMITTYBILT.COM
Installation Instructions
Scout Trailer Kit
Part#87400/87400-01

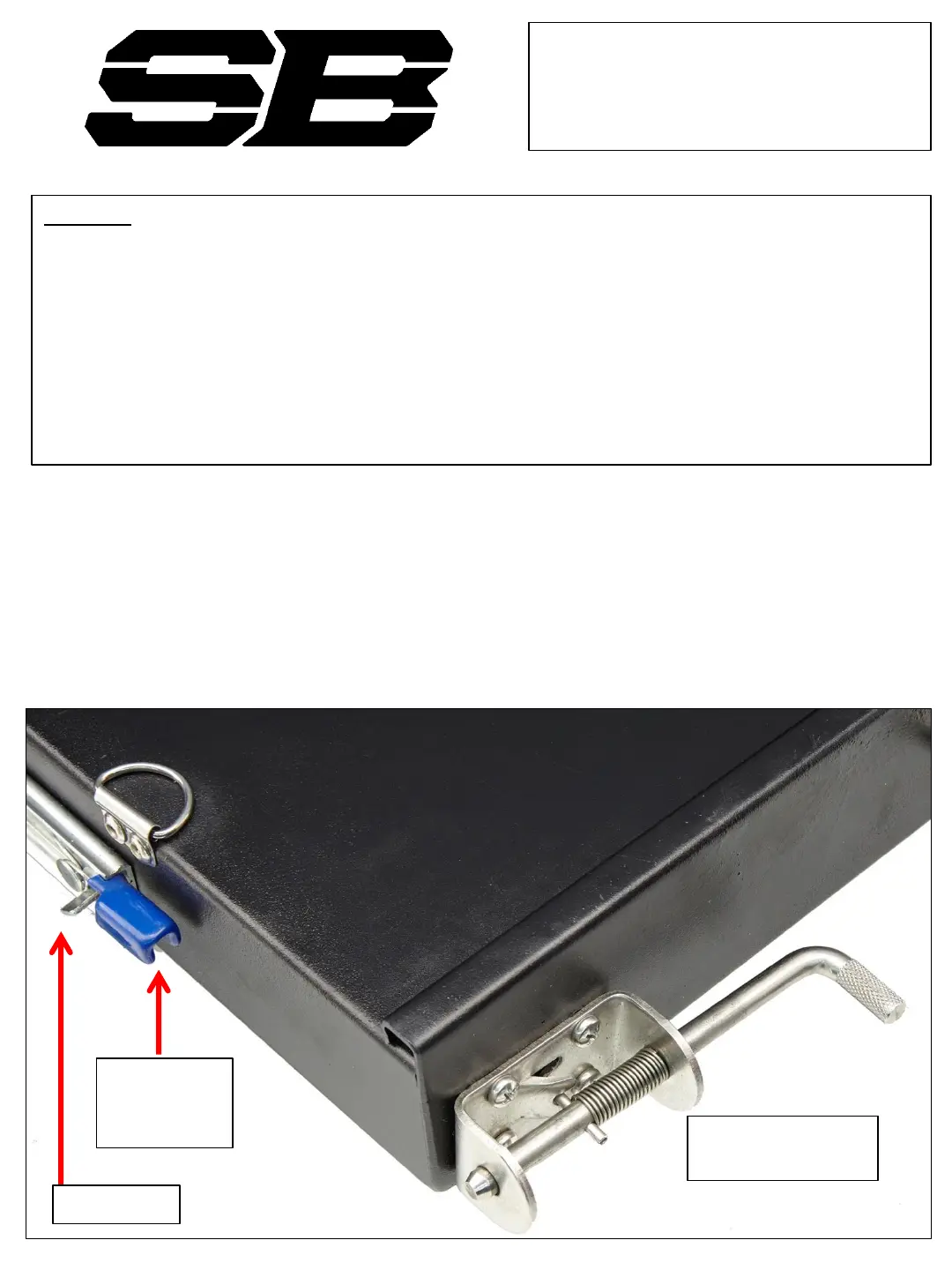

Rear door:
• Sliders feature a hold open/ closed latch. Depress mechanism when operating slider.
• Slider features locking pin, make sure to engage pin when slider is stowed. Locking pin can be
positioned to stay open. Make sure it is in the hold open position when operating slider.
• Always secure load to drawer.
• Use caution when operating slider as loads may have shifted during travel.
• Do not exceed 200 lb evenly distributed weight capacity.
• Keep sliders clean, re-grease if necessary. Use lithium or silicon based heavy grease.
• If hold open/closed latch fails to catch, it can be adjusted by slightly bending the locking tab
upwards.
Hold
open/closed
lever
Locking pin in the
open position
Locking tab
33
