Snap-On PTGR410 - Parts Listing

42
ZPTGR410CE Rev B (12/19)
ENEN
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
7
7
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
Torque
90-130 in-lb
Torque
20-25 ft-lb
Torque
15-20 in-lb
Torque
20-25 ft-lb
Lubricate Air Motor Oil
Bevel Facing Outward

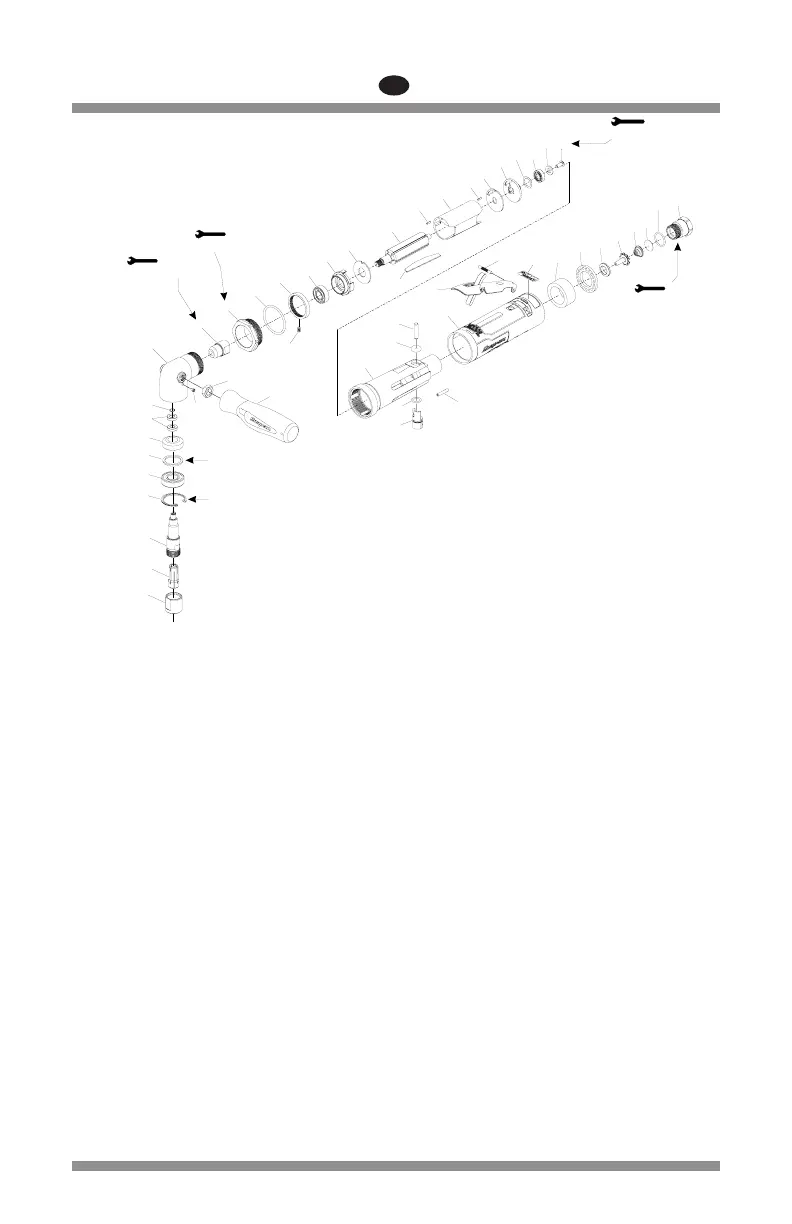

Figure 2: PTGR410 Angle Die Grinder
Ref Description Qty Part
Number
Ref Description Qty Part
Number
1 Collet Nut .........................................1.............74071
2 Collet 1/8” ........................................1.............74072
Collet 3/16” ......................................1.............74073
Collet 1/4” ........................................1.............74074
Collet 3/8” ........................................1.............68030
Collet 3 mm ......................................1.............74075
Collet 6 mm ......................................1.............74076
3 Output Spindle .................................1.....PT450-32C
4 Retaining Ring ..................................1.............77081
5 Ball Bearing ......................................1.............10145
6 Felt Washer ......................................1.............74890
7 Bevel Gear Set ..................................1...PT450-3334
8 Ball Bearing .500 x.25 x. 125............2..........SDR-26
9 1/4" Retaining Ring...........................1.............74920
10 Angle Head .......................................1.......PT450-31
11 Grease Fitting ...................................2........ESD1333
12 Jam Nut ............................................1.............09593
13 Handle (Red) ....................................1.....PT450-40A
Handle (Green) .................................1.. PT450G-40A
Handle (Gun Metal) ..........................1...PT450GM-40A
Handle (High Vis) .............................1... PT450HV-40A
Handle (Orange) ...............................1.. PT450O-40A
14 Angle Head Clamp Nut .....................1.........SWG-97
15 O-Ring ..............................................1.......... 14333B
16 Lock Ring .........................................1.............77106
17 Set Screw 6-32 x 1/4 ........................1.............77105
18 Ball Bearing ......................................1.............10257
19 Front End Plate .................................1.........PT450-4
20 Front Wear Plate ...............................1.....PT450-502
21 Rotor ................................................1.............74028
22 Vane .................................................5.............74048
23 Roll Pin 5/64 X 1/4”..........................2.............66194
24 Cylinder ............................................1.........PT450-7
25 Rear Wear Plate ................................1.....PT450-501
26 Rear End Plate ..................................1.........PT450-5
27 Wave Washer .440 X .618 X .008 .....1.............41338
28 Ball Bearing ......................................1.............10253
29 Washer .............................................1.............74054
30 Screw #8-32 X 3/8 But Hd Cap .........1.............74055
31 Housing ............................................1............SDG-1
32 O-Ring ..............................................1.............67793
33 Torr Pin 3/16 X 7/8” .........................1.............74018
34 O-Ring 1/16 X 3/8 X 1/2” .................1.............14290
35 Regulator..........................................1.............74013
36 Set Screw6-32 x 3/4 .........................1.............06402
37 Housing Cover (Red)........................1....PTGR400-100
Housing Cover (Green).....................1....PTGR400G100
Housing Cover (Gun Metal)..............1..PTGR400GM100
Housing Cover (High Vis).................1..PTGR400HV100
Housing Cover (Orange)...................1....PTGR400O100
38 Lever ................................................1........SP79112
39 Knurl Pin ..........................................1.............74020
40 Warning Label ..................................1.............67408
41 Muffler..............................................1.............74016
42 Exhaust Deflector .............................1.............74017
43 Throttle Valve Seat ...........................1.............74008
44 Throttle Valve ...................................1.............74009
45 Taper Spring .....................................1.............74010
46 Screen ..............................................1.............74011
47 O-Ring 1/16 X 5/8 X 3/4” .................1.......... 14281B
48 Inlet Bushing ....................................1.............74012
Not Shown:
Wrench ..................................................2.............74058
Parts Listing
