Snapper 1600 Series Service Manual

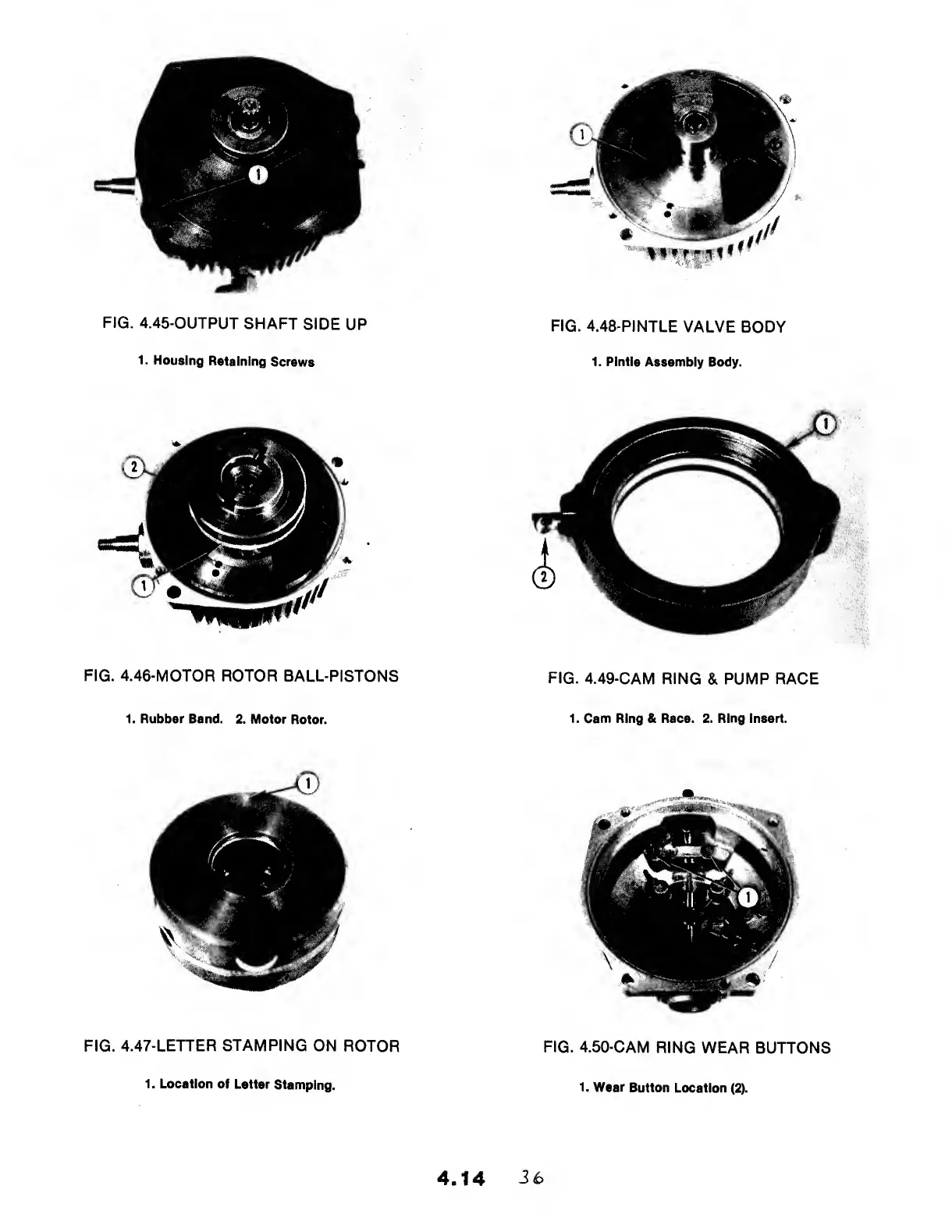

FIG. 4.45-OUTPUT SHAFT SIDE UP
FIG. 4.48-PINTLE VALVE BODY
1. Housing Retaining Screws
1. Pintle Assembly Body.
FIG. 4.46-MOTOR ROTOR BALL-PISTONS
FIG. 4.49-CAM RING & PUMP RACE
1. Rubber Band. 2. Motor Rotor.
1. Cam Ring & Race. 2. Ring Insert.
FIG. 4.47-LETTER STAMPING ON ROTOR
1. Location of Letter Stamping.
FIG. 4.50-CAM RING WEAR BUTTONS
1. Wear Button Location (2).
4.14 36
