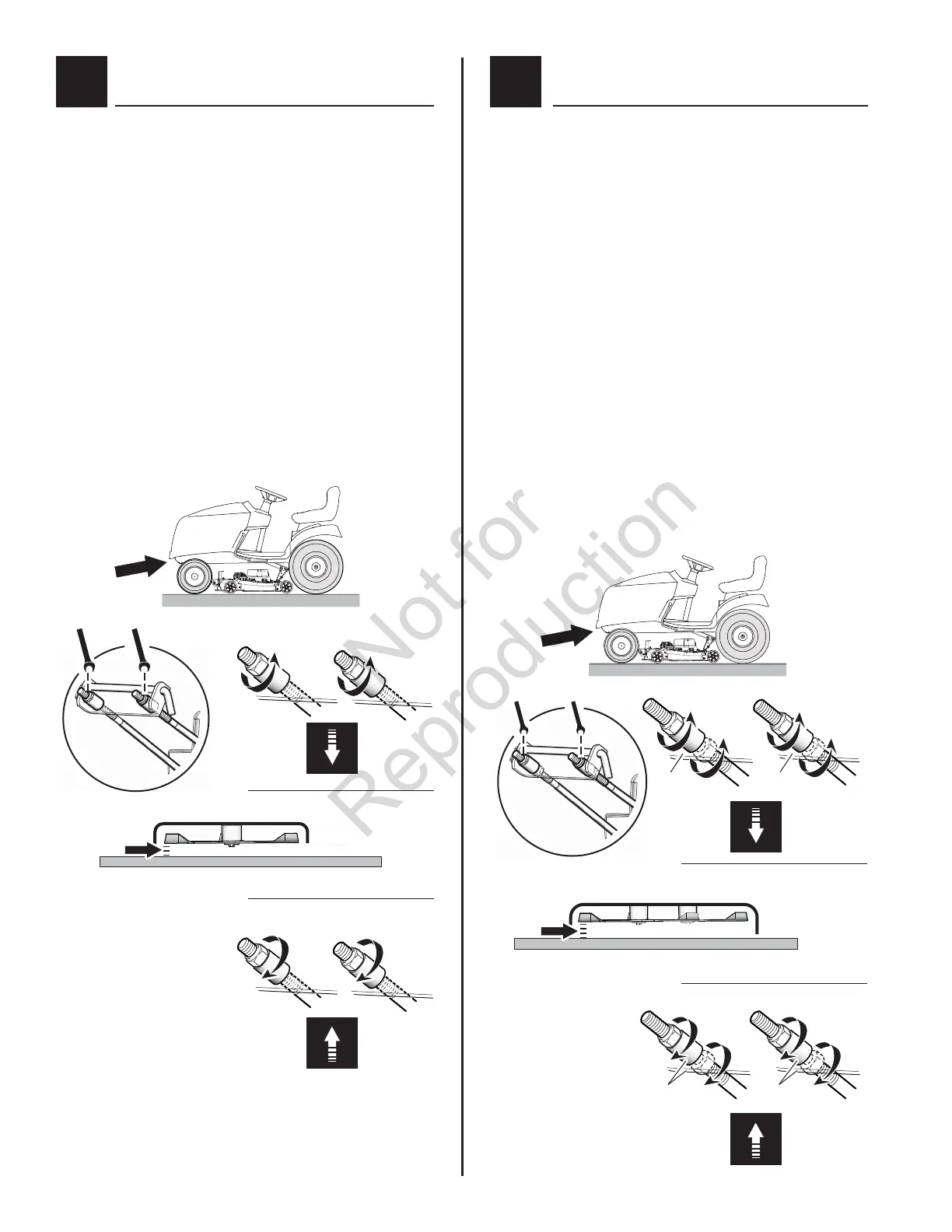

To LOWER the front of mower deck (b).
Turn locknuts (c) counterclockwise. Locknuts
must be turned evenly on both sides to keep deck
level (Side-to Side).
Recheck measurement (b). When correct, turn jam
nuts (d) counterclockwise against the bracket (e) to
secure.
IF AN ADJUSTMENT IS NEEDED:
IF AN ADJUSTMENT IS NEEDED:
To LOWER front of mower deck (b).
Turn locknuts (c) counterclockwise. Locknuts
must be turned evenly on both sides to keep
deck level (Side-to-Side).
Recheck measurement (b).
To RAISE front of mower deck (b).
Turn locknuts (c) clockwise. Locknuts must be
turned evenly on both sides to keep deck level
(Side-to-Side).
Recheck measurement (b).
42˝
46˝
To RAISE front of deck (b).
Turn jam nuts (c) clockwise. Nuts must be turned
evenly on both sides to keep deck level (Side-to
Side). Turn locknuts (d) clockwise against the
spacer / bracket (e) to secure.
Recheck measurement (b).
3/4˝ 3/4˝
c
e
b
e
ee
dd
c
cc
d
3/4˝ 3/4˝
c
b
c
c
c
