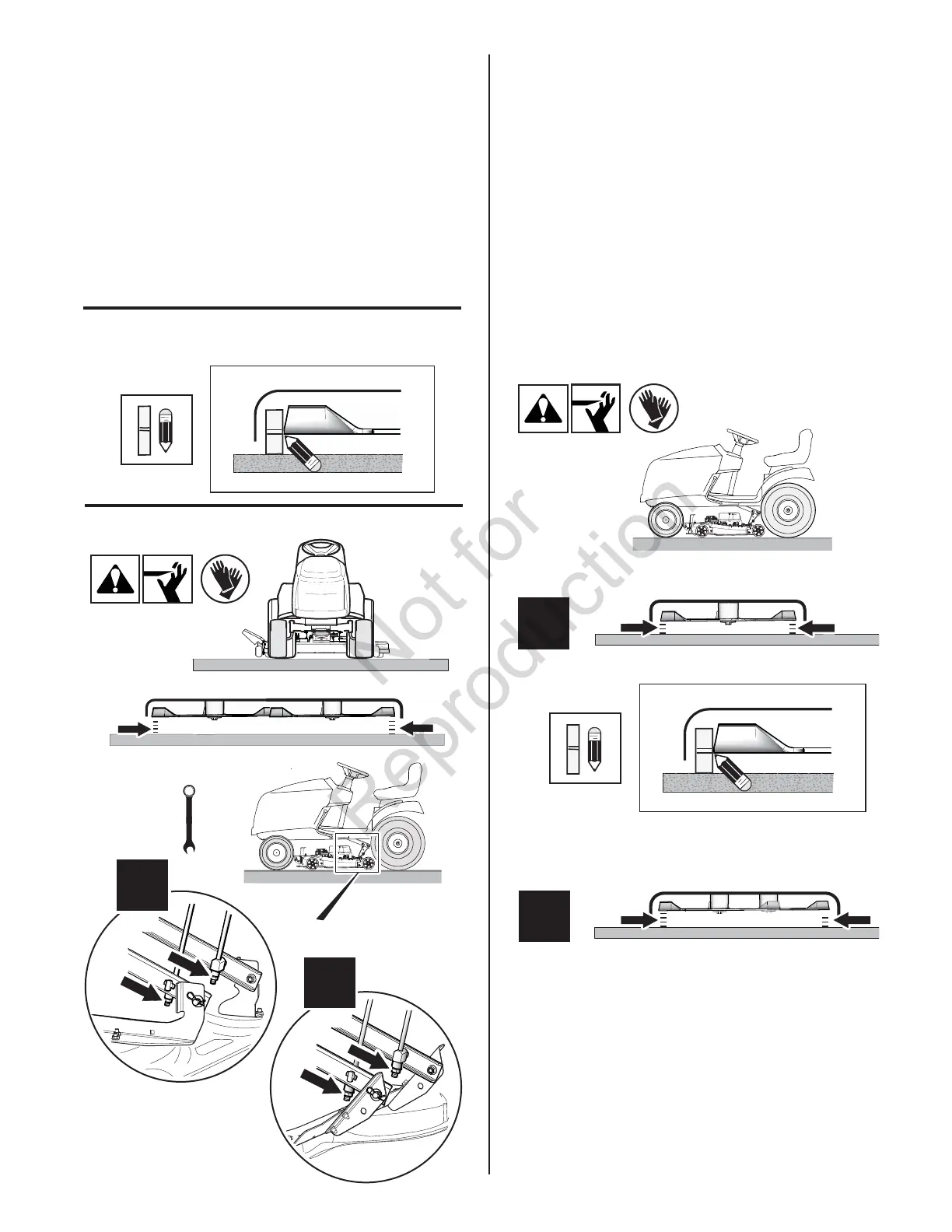

SIDE-to-SIDE LEVELING
Arrange the blades (two rear blades - 46") so they
are pointing from side-to-side. Using a measuring tool,
measure the distance between the outside tips of each
blade (a / b) and the ground.
The diff erence should be: less than 1/8˝ (3 mm).
IF AN ADJUSTMENT IS NEEDED:
Tighten / loosen nuts (c) (right and left side) as needed
to adjust side-to-side leveling.
MEASURING TOOL - for leveling mower
(4 inch / 100 mm - stiff card board)
FRONT-to-BACK LEVELING
Arrange the blades so they face front to back.
Using a measuring tool, measure:
(a) - the distance between the rear tip of one
of the back blades and the ground.
(b) - the distance between the front tip of the
center blade and the ground.
This should be the same as measurement (a).
Important: Side-to-side leveling must be performed
fi rst.
9/16˝
a
b
a
c
c
b
42˝
46˝
42˝
46˝
a
b
a
b
ab
