29
Regular Maintenance

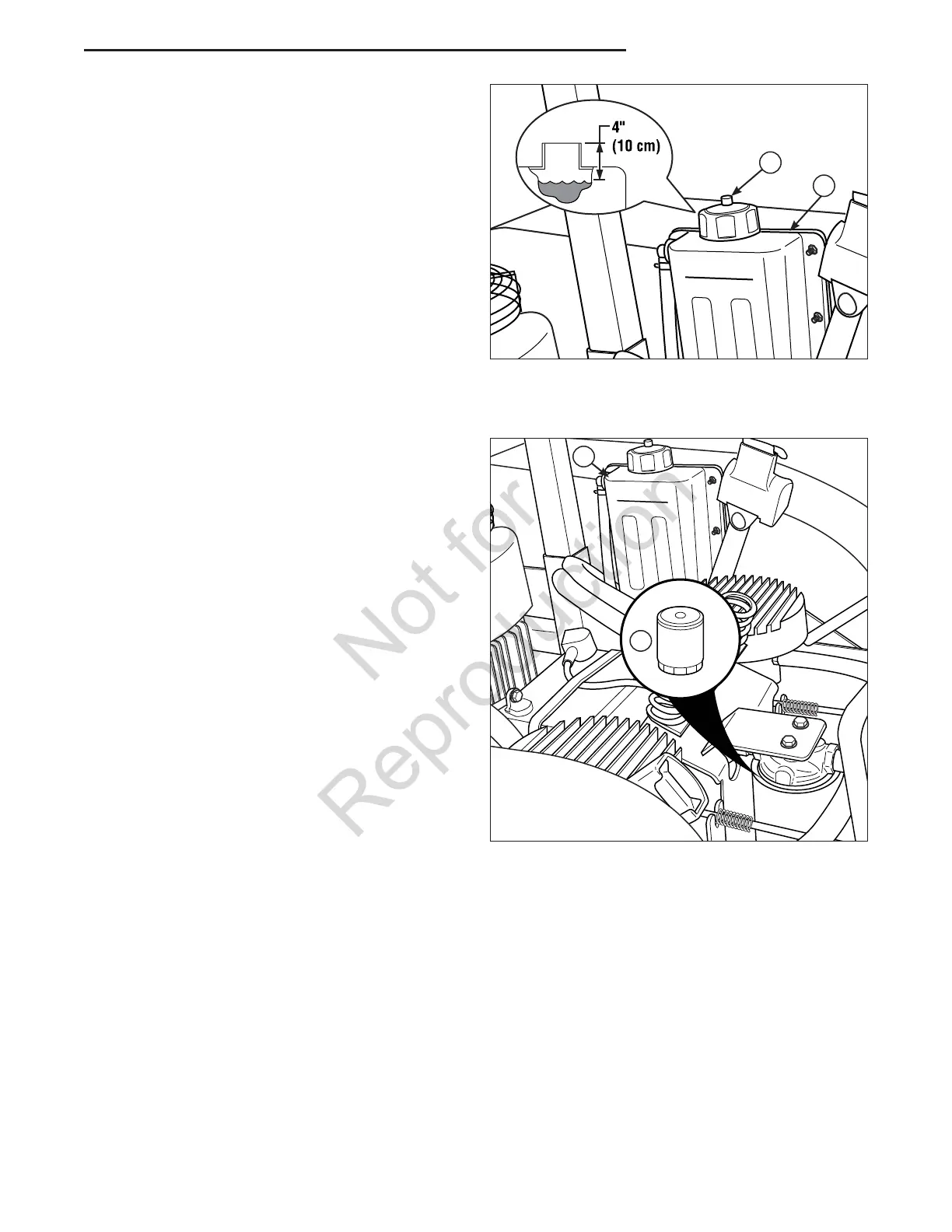

Figure 26. Battery Compartment
A. Hydraulic Oil Reservoir
B. Hydraulic Oil Filter
Figure 25. Checking Hydraulic Oil Level
A. Hydraulic Oil Reservoir
B. Reservoir Cap
A
B
Check Hydraulic Oil Level
1. Before removing the reservoir cap, make sure the area
around the reservoir cap and fill neck of the reservoir is
free of dust, dirt, or other debris.
2. Unscrew the reservoir cap (B, Figure 25).
3. Look down the filler neck of the hydraulic oil reservoir
(A) and observe the oil level. When cold, the oil level
should be approximately 4” (10 cm) below top of the
filler neck.
4. If necessary, remove the reservoir cap (B) and add SAE
20W-50 motor oil.
5. Reinstall the reservoir cap.
Change Hydraulic Oil Filter
Change Interval: Every 250 Hours
Filter Part Number: 1719168
NOTE: Removing the oil filter from the filter base
will drain the oil reservoir. Have a suitable container
ready to catch any spilled oil. The manufacturer
recommends this be a dealer-only service item.
1. Locate the transmission oil filter (B, Figure 26) at the
rear of the battery compartment under the seat.
2. Lubricate the new filter base with a few drops of
transmission oil. Fill the filter half full of oil.
3. Clean the area around the filter base and remove the
filter. Do NOT drain the hydraulic system oil.
4. Thread the new filter onto the filter base until the gasket
makes contact, then tighten 3/4 of a turn more.
5. Run the unit for several minutes and check the
transmission oil level.
IMPORTANT NOTE: Use caution after changing
the filter; air in the hydraulic system may affect the
responsiveness of the control levers. Repeat step 5
until the air is out of the system.
A
B
