www.snapper.com16
Installing the Grass Bag
(Optional Accessory on Some Models)
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for all
components to cool.
!
!
1. Install the grass bag adapter. Refer to the Section
entitled “Installing the Grass Bag Adapter”.
2. Install the grass bag by sliding the connector (A,
Figure 12) over the adapter flange.
3. Attach the grass bag hooks (B) over the middle
handle cross bar.

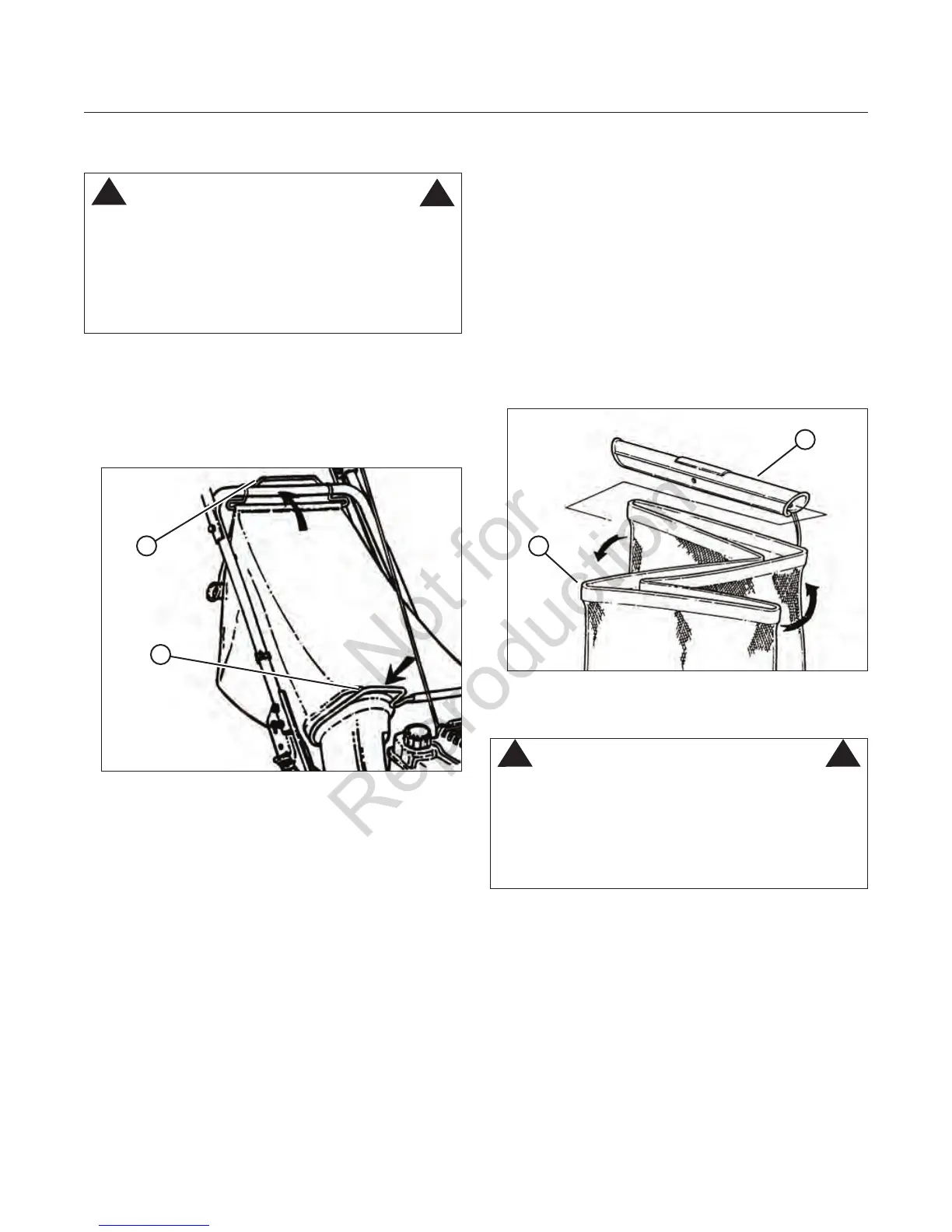

Figure 12: Installing the grass bag
B
A
Emptying the Grass Bag
1. Grasp the bag connector and bag handle. Lift up
on the bag handle, removing it from the mower
handle. Then lift up on the bag connector, remov-
ing it from the adapter flange.
2. Open the bag by pulling the bag slider (A, Figure
13) off of the Z-fold at the rear of the bag (B).
3. To close the bag, fold the rear of the bag into the
former Z-shape, keeping the edges aligned. Grasp
the edge of the Z-fold, and while holding the slider,
pull the Z-fold fully into the slider.
NOTE: An illustration of the Z-Fold is attached to the
bag.
Figure 13: Removing the bag slider
B
A
WARNING
Grass Catcher bags are made of woven fabric, and
are subject to deterioration and wear during normal
usage. Check condition of bag before each use.
Immediately replace worn or damaged catcher bags
with only genuine replacement bags. The grass
catcher is optional equipment on some models.
!
!
Operation
