Section 1 - FAMILIARIZATION
HOUR
METER
SWITCH
MOTION CONTROL
LEVER
CHOKE
CONTROL
BLADE
SWITCH
ENGINE SPEED
CONTROL
RIGHT HAND
FUELTANK
LEFTHAND
FUELTANK
MOTION CONTROL
LEVER
DECK LIFT
LEVER
PARKING
BRAKE LEVER
CONTROL PANEL
(SEE INSET)
DISCHARGE
DEFLECTOR,
DECK LIFT PEDAL
FIGURE
1.1 INTRODUCTION
This manual has been prepared for the operator's of
the SNAPPER MID MOUNT Z-RIDER Its purpose,
aside from recommending standard operating
procedures and routine service requirements, is to
promote SAFETY through the use of accepted
operating practices. Read, Understand and Follow the
IMPORTANT SAFETY INSTRUCTIONS on Pages 2
thru 4 of this manual and All SAFETY messages on the
MID MOUNT Z-RIDER and its attachments before
operating. SNAPPER recommends returning the MiD
MOUNT Z-RIDER to an authorized SNAPPER dealer
annually for inspection and addition of any new devices
which might upgrade the safety of the mower.
1.1
IMPORTANT
The figures and illustrations in this manual
are provided for reference only and may
differ from your specific model. Contact
your Snapper dealer if you have questions
1.2 NOMENCLATURE

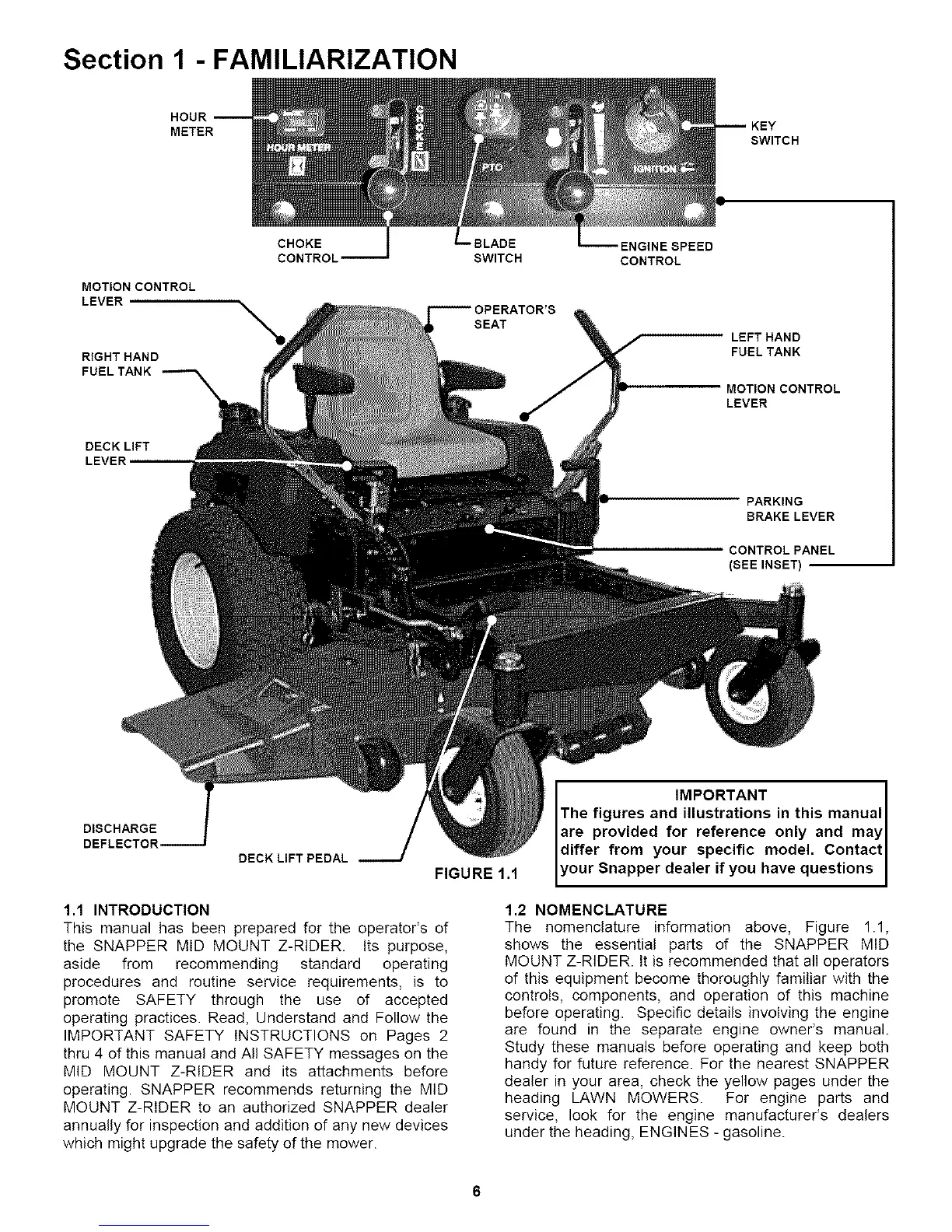

The nomenclature information above, Figure 1.1,
shows the essential parts of the SNAPPER MID
MOUNT Z-RIDER. It is recommended that all operators
of this equipment become thoroughly familiar with the
controls, components, and operation of this machine
before operating. Specific details involving the engine
are found in the separate engine owner's manual.
Study these manuals before operating and keep both
handy for future reference. For the nearest SNAPPER
dealer in your area, check the yellow pages under the
heading LAWN MOWERS. For engine parts and
service, look for the engine manufacturer's dealers
under the heading, ENGINES - gasoline.
