Section

IV

-

TRANSAXLE

DISASSEMBLY

Check

the

differential

axle

assembly

components

as

fol¬

lows:

1.

I

nspect

the

ring

gear

for

worn,

broken

or

missing

teeth.

See

Figure

4.7.

2.

C

heck

to

make

sure

that

the

sides

of

the

ring

gear

have

only

floating

contact

with

the

walls

of

the

case

half.

3.

Check

to

see

that

the

thrust

plates

are

holding

the

ring

gear

assembly

in

alignment.

4.

Inspect

the

bevel

gears

for

worn,

broken

or

missing

teeth.

5.

C

heck

to

make

sure

that

the

axle

shafts

are

smooth.

6.

C

heck

to

see

that

the

differential

bevel

gears

respond

instantly

to

movement

of

the

axle

shafts

and

bevel

gear

splines.

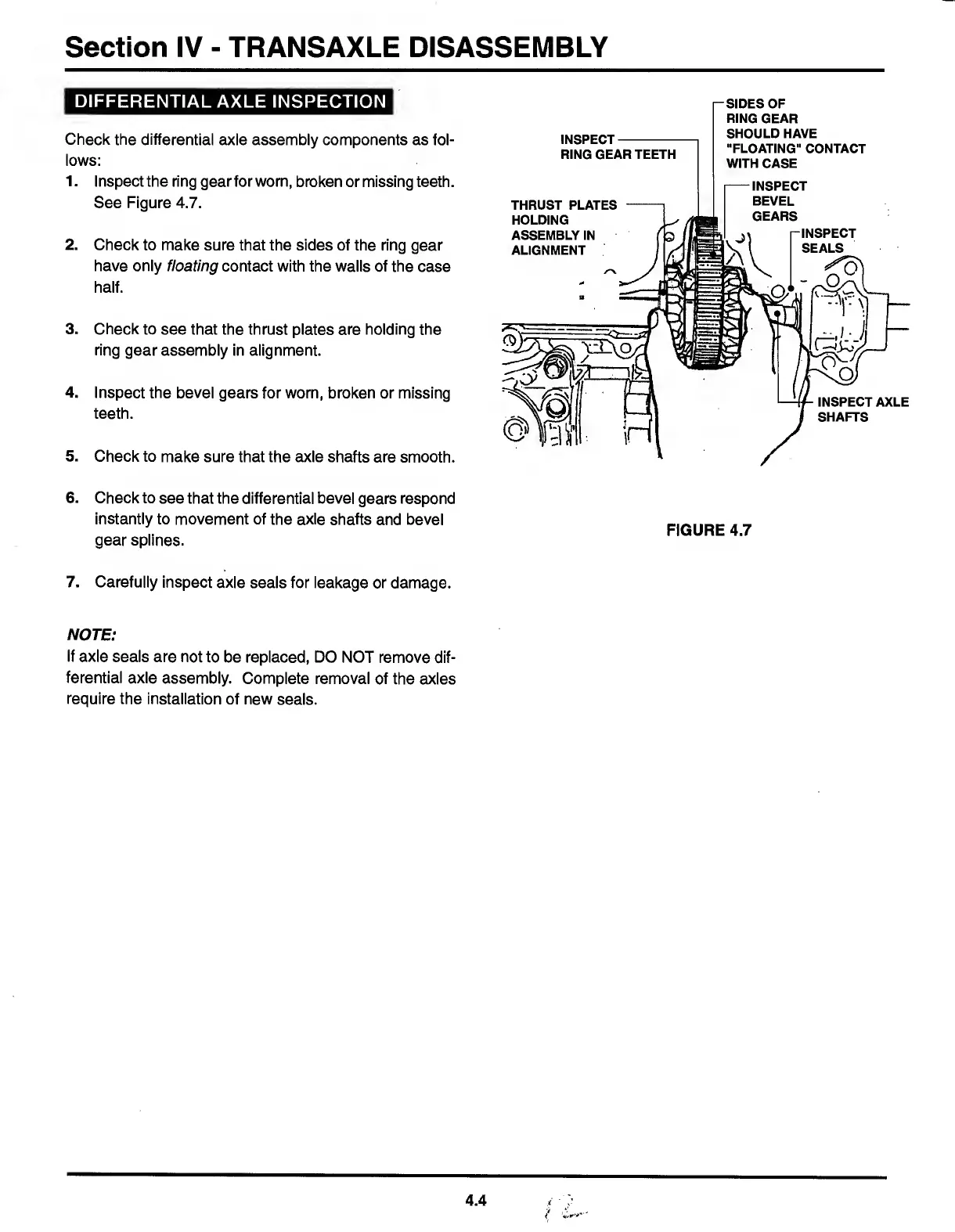

FIGURE

4.7

7.

C

arefully

inspect

axle

seals

for

leakage

or

damage.

NOTE:

If

axle

seals

are

not

to

be

replaced,

DO

NOT

remove

dif¬

ferential

axle

assembly.

Complete

removal

of

the

axles

require

the

installation

of

new

seals.
