Section IV - TRANSAXLE DISASSEMBLY
PUMP & SWASHPLATE DISASSEMBLY

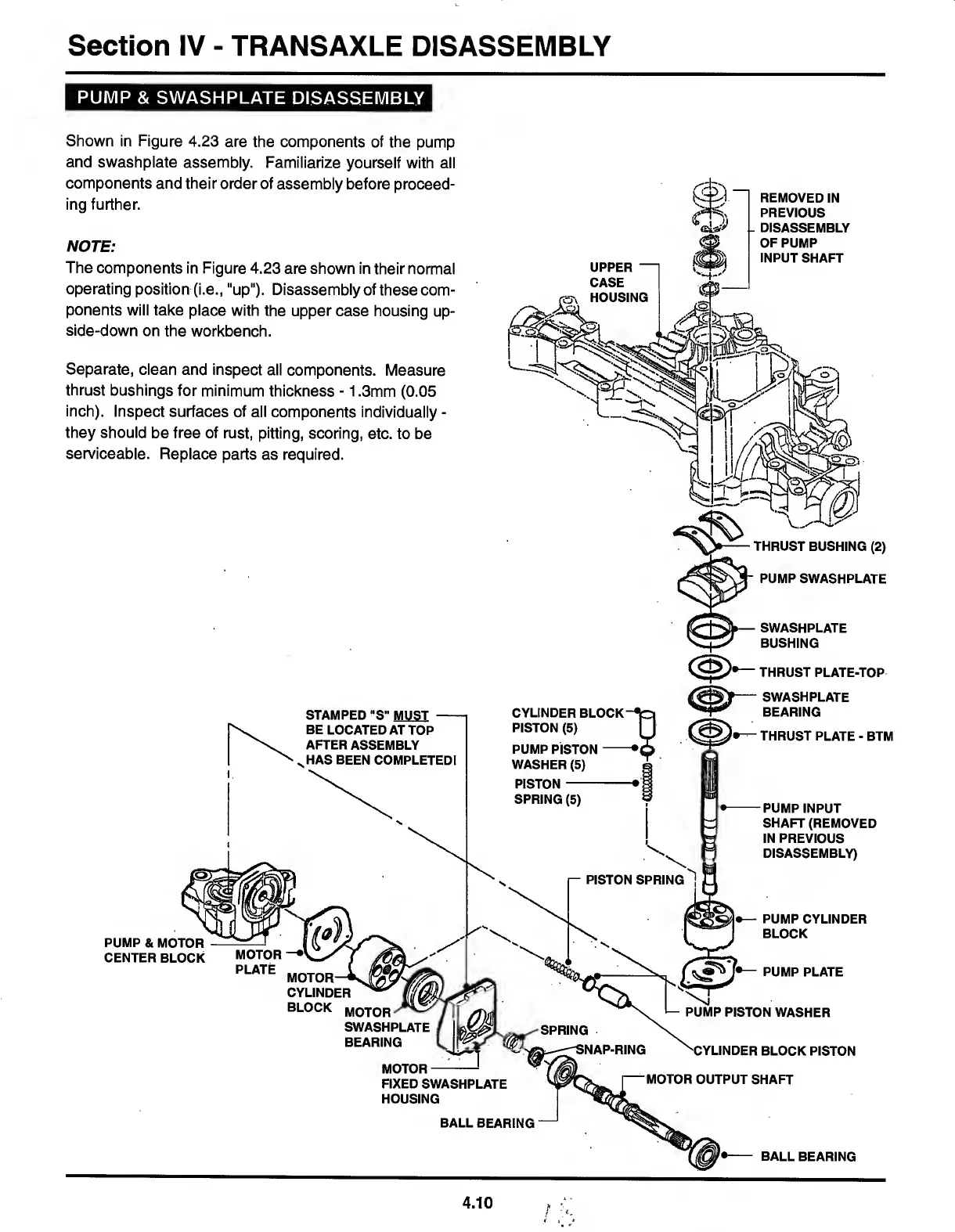

Shown in Figure 4.23 are the components of the pump
and swashplate assembly. Familiarize yourself with all
components and their order of assembly before proceed¬
ing further.
NOTE:
The components in Figure 4.23 are shown in their normal
operating position (i.e., "up"). Disassembly of these com¬
ponents will take place with the upper case housing up¬
side-down on the workbench.
Separate, clean and inspect all components. Measure
thrust bushings for minimum thickness -1.3mm (0.05
inch). Inspect surfaces of all components individually -
they should be free of rust, pitting, scoring, etc. to be
serviceable. Replace parts as required.
REMOVED IN
PREVIOUS
0^^ I- DISASSEMBLY
OF PUMP
INPUT SHAFT
^ -THRUST BUSHING (2)
PUMP SWASHPLATE
PUMP & MOTOR
CENTER BLOCK
THRUST PLATE-TOP
MOTOR
CYLINDER
BLOCK motor
SWASHPLATE
BEARING
THRUST PLATE - BTM
PUMP INPUT
SHAFT (REMOVED
IN PREVIOUS
DISASSEMBLY)
PUMP CYLINDER
BLOCK
PUMP PLATE
FIXED SWASHPLATE
HOUSING
XT
PUMP PISTON WASHER
CYLINDER BLOCK PISTON
MOTOR OUTPUT SHAFT
BALL BEARING —'
BALL BEARING
/
