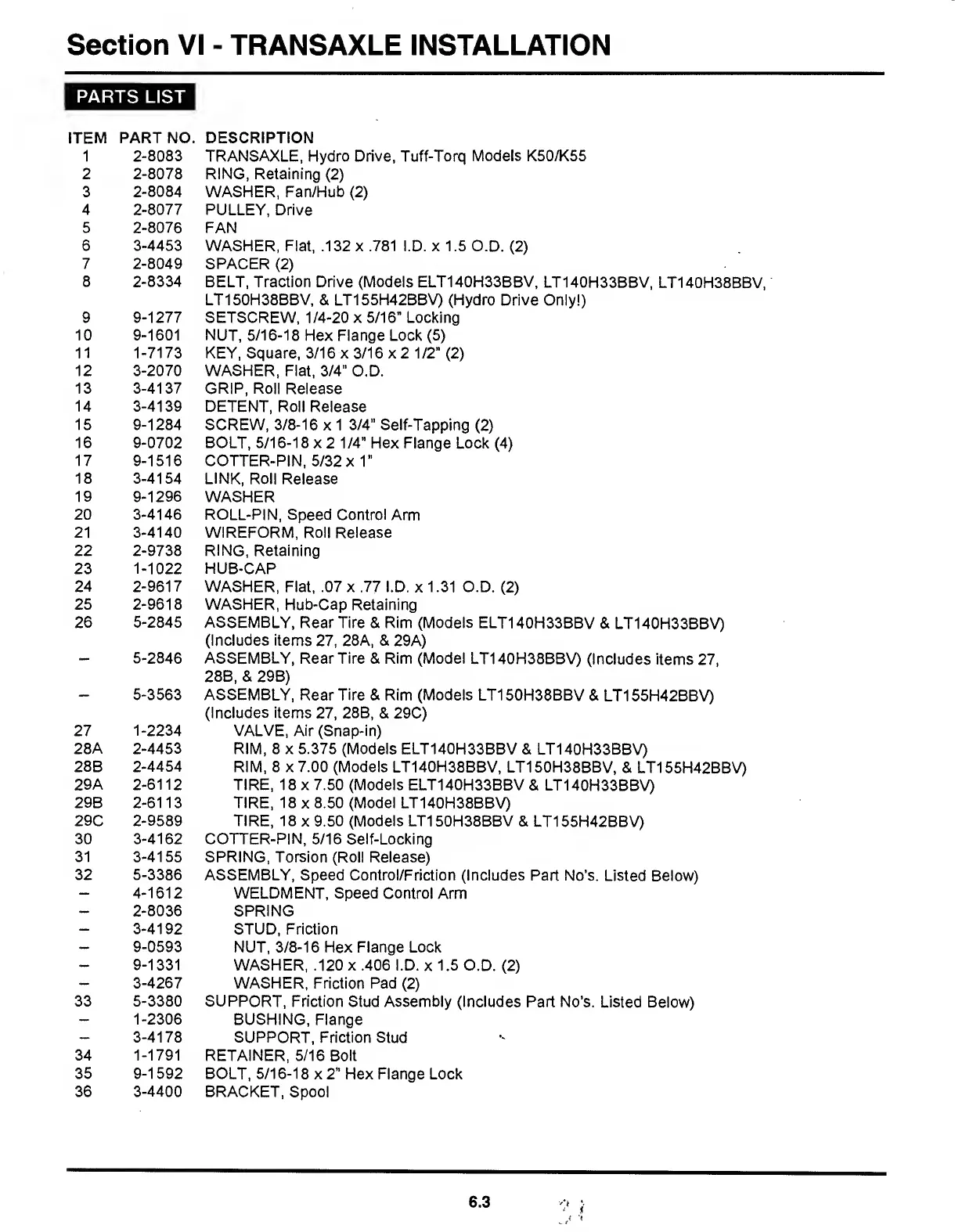

Section VI - TRANSAXLE INSTALLATION
PARTS LIST
ITEM PART NO. DESCRIPTION
1
2-8083
TRANSAXLE, Hydro Drive. Tuff-Torq Models K50/K55
2 2-8078
RING, Retaining (2)
3 2-8084 WASHER, Fan/Hub (2)
4 2-8077
PULLEY, Drive
5
2-8076 FAN
6 3-4453
WASHER, Flat, .132 x .781 I.D. x 1.5 O.D. (2)
7 2-8049
SPACER (2)
8 2-8334
BELT, Traction Drive (Models ELT140H33BBV, LT140H33BBV, LT140H38BBV,
LT150H38BBV. & LT155H42BBV) (Hydro Drive Only!)
9 9-1277 SETSCREW. 1/4-20 x 5/16" Locking
10 9-1601
NUT, 5/16-18 Hex Flange Lock (5)
11 1-7173 KEY, Square, 3/16 x 3/16 x 2 1/2" (2)
12 3-2070 WASHER, Flat, 3/4" O.D.
13 3-4137
GRIP, Roll Release
14 3-4139
DETENT, Roll Release
15 9-1284
SCREW, 3/8-16 X 1 3/4" Self-Tapping (2)
16
9-0702 BOLT, 5/16-18 X 2 1/4" Hex Flange Lock (4)
17 9-1516
COTTER-PIN, 5/32 X 1"
18 3-4154
LINK, Roll Release
19 9-1296
WASHER
20 3-4146
ROLL-PIN, Speed Control Arm
21 3-4140 WIREFORM, Roll Release
22
2-9738
RING, Retaining
23 1-1022
HUB-CAP
24
2-9617
WASHER, Flat, .07 x .77 I.D. x 1.31 O.D. (2)
25 2-9618
WASHER, Hub-Cap Retaining
26 5-2845
ASSEMBLY, Rear Tire & Rim (Models ELT140H33BBV & LT140H33BBV)
(Includes items 27, 28A, & 29A)
5-2846
ASSEMBLY, Rear Tire & Rim (Model LT140H38BB\/) (Includes items 27,
28B, & 29B)
5-3563
ASSEMBLY. Rear Tire & Rim (Models LT150H38BBV & LT155H42BBV)
(Includes items 27, 28B, & 29C)
27 1-2234 VALVE, Air (Snap-in)
28A 2-4453
RIM, 8 X 5.375 (Models ELT140H33BBV & LT140H33BBV)
28B
2-4454
RIM, 8 X 7.00 (Models LT140H38BBV, LT150H38BBV. & LT155H42BBV)
29A
2-6112
TIRE, 18 X 7.50 (Models ELT140H33BBV & LT140H33BBV)
29B 2-6113 TIRE, 18 X 8.50 (Model LT140H38BBV)
29C 2-9589
TIRE, 18 X 9.50 (Models LT150H38BBV & LT155H42BBV)
30 3-4162 COTTER-PIN, 5/16 Self-Locking
31
3-4155 SPRING, Torsion (Roll Release)
32 5-3386
ASSEMBLY, Speed Control/Friction (Includes Part No’s. Listed Below)
—
4-1612 WELDMENT, Speed Control Arm
—
2-8036
SPRING
—
3-4192 STUD, Friction
—
9-0593
NUT, 3/8-16 Hex Flange Lock
—
9-1331 WASHER, .120 X .406 I.D. x 1.5 O.D. (2)
—
3-4267
WASHER, Friction Pad (2)
33 5-3380
SUPPORT, Friction Stud Assembly (Includes Part No’s. Listed Below)
-
1-2306
BUSHING, Flange
—
3-4178
SUPPORT, Friction Stud
34 1-1791
RETAINER, 5/16 Bolt
35 9-1592
BOLT, 5/16-18 X 2” Hex Flange Lock
36 3-4400 BRACKET, Spool
6.3
