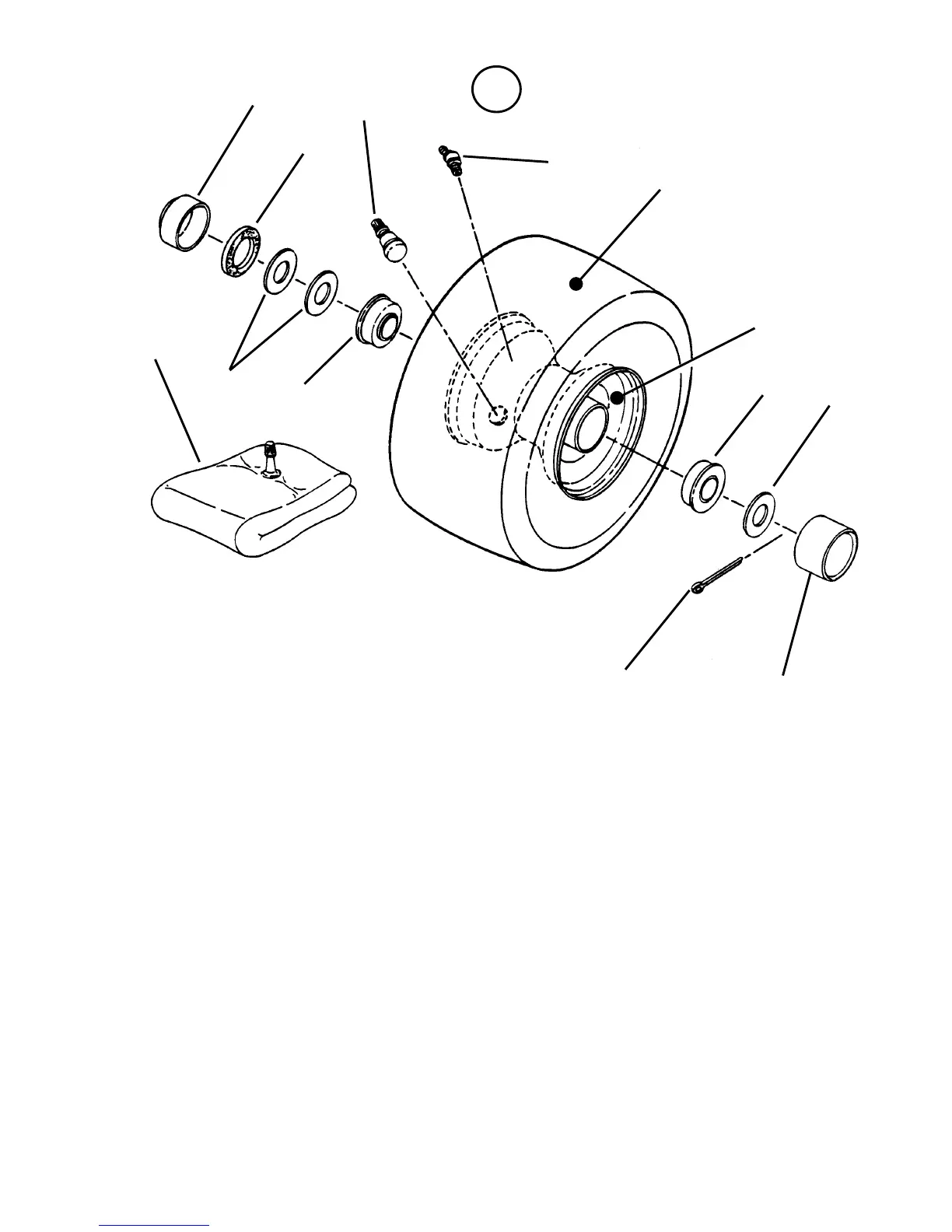

WHEELS - FRONT
ITEM PART NO. DESCRIPTION
1 5-8943 ASSEMBLY, Front Tire & Rim (Complete)
(Includes Items 2, 3, 4, 5 & 6, )
2 7-3563 TIRE, 11 x 4.00-4 (Kenda)
3 1-7146 RIM (For 4.10/3.50 x 4 Tire)
4 1-1807 BEARING, Ball
5 1-2234 VALVE, Air (Snap-in)
6 1-4669 FITTING Lube
7 1-0935 WASHER, 3/4” I.D.
8 1-1022 CAP, Hub
9 1-1032 SEAL, Felt
10 3-1038 CAP, Dust
11 9-1516 PIN, Cotter 5/32 x 1" (2)
12 1-0821 TUBE, Inner (For 4.10/3.50 x 4 Tire)
R. E. RIDER SERIES 22 MANUAL No. 06128
1 ASSEMBLY
To Next Page
