Snorkel TB66JRT - Chapter 3 - Specifications; Component Identification

TB66J – 0083740 3

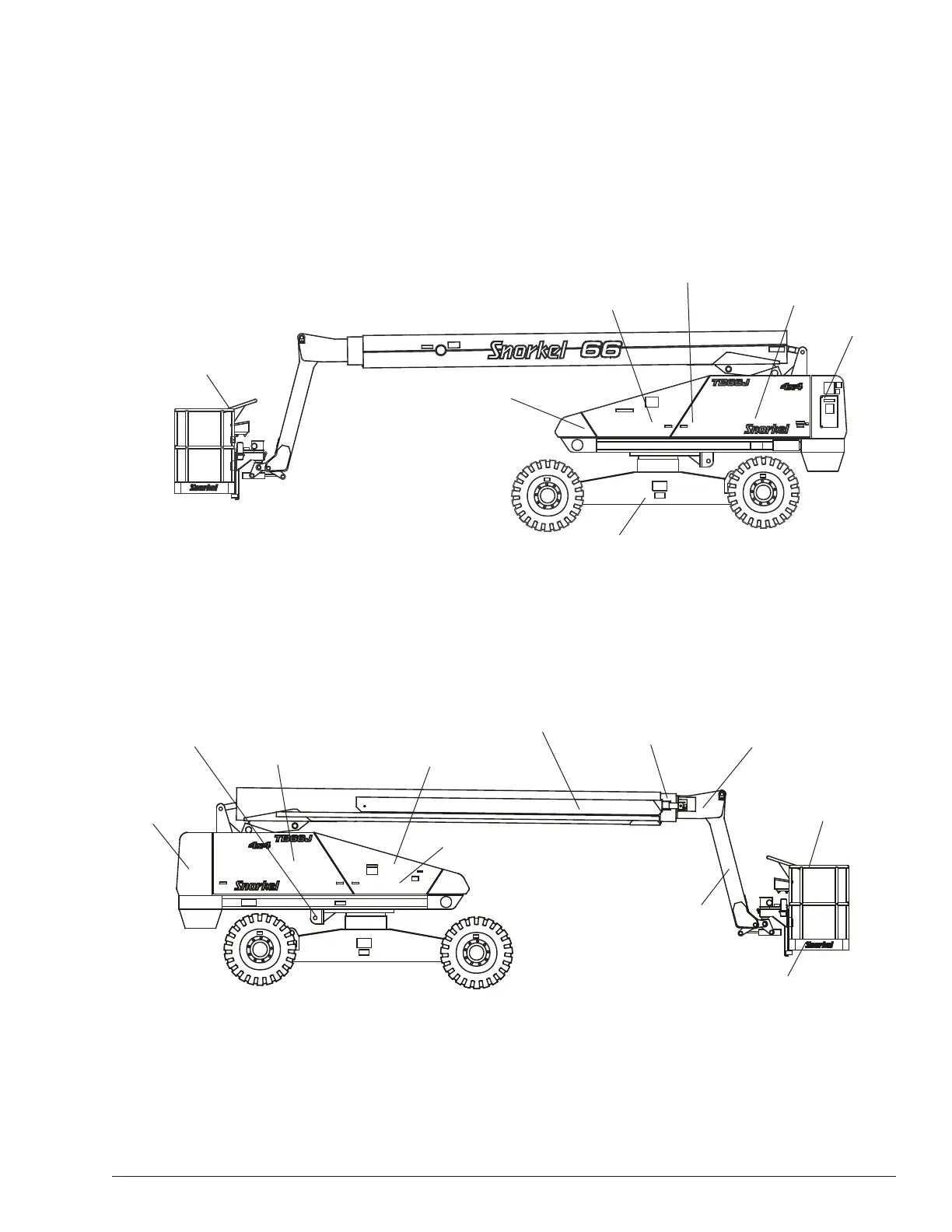

Component Identication
Right Side
Chassis
Lower Controls
Upper Controls
Wiring Box
Operator’s
Manual
Steer Wheels
Left Side
Platform
Main Boom
Tip Boom
Hydraulic Fluid Tank
And Filter
Battery Disconnect Switch
Batteries
Engine
Steer Wheels
Platform
Foot Switch
Emergency
Lowering
Valve
Intermediate
Boom
Jib Boom
Fuel Tank
LP Fuel Tank
Chapter 3 – Specications
