Chapter 5 – Gauges and Displays
20 TB80/TB85J – 0112622EE

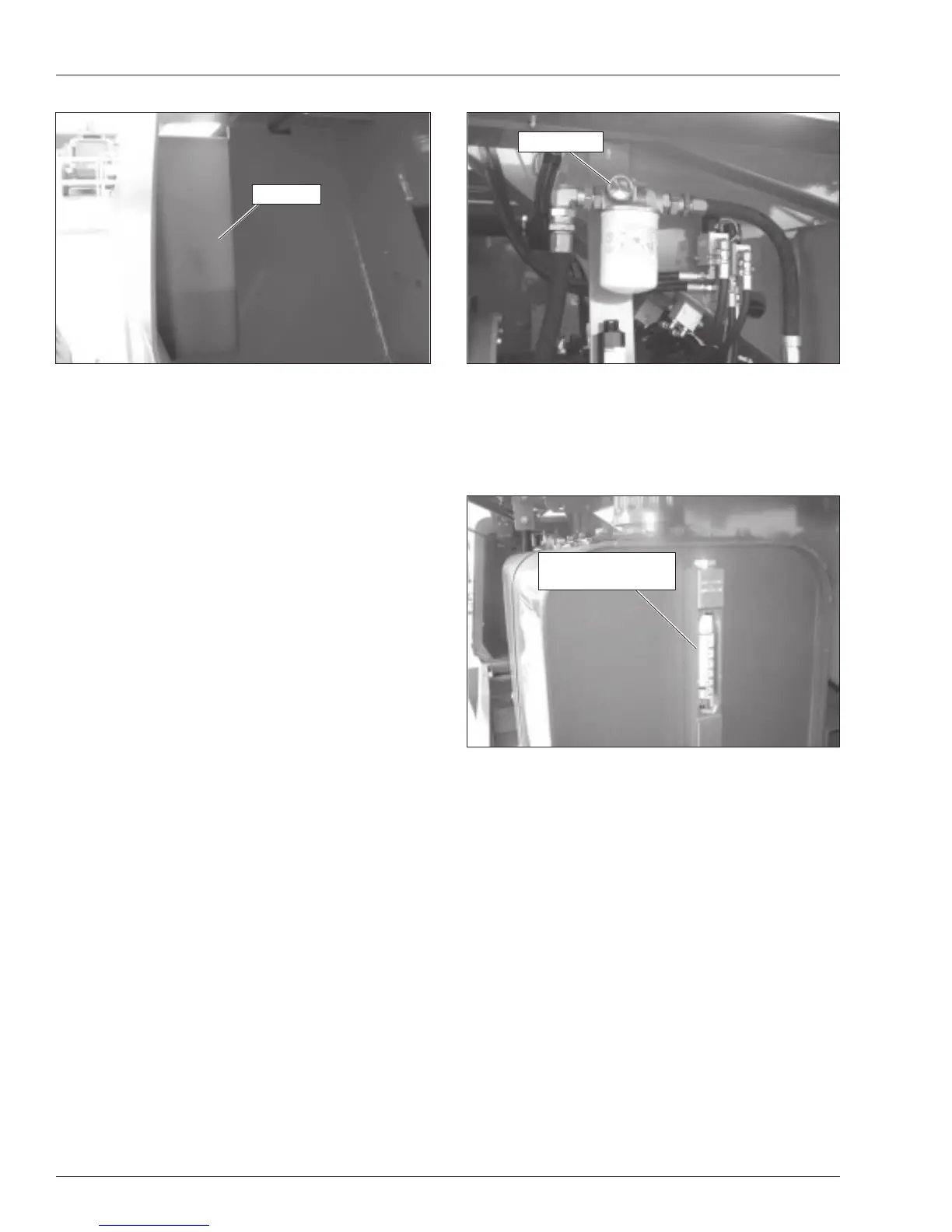

Figure 5.5 – Hydraulic Fluid Filter Gauge
Fluid Level and Temperature Gauge
A gauge on the right end of the reservoir displays the
level and temperature of the hydraulic fluid (refer to Figure
5.6).
Figure 5.6 – Hydraulic Fluid Gauge
If the temperature rises above 93°C (200°F) stop machine
operation and let the fluid cool before resuming opera-
tion.
Figure 5.4 – Fuel Tank
Note
Do not run a diesel fuel tank empty. Air in the fuel line
makes the engine hard to start.
Engine Oil
The engine oil level is measured with a dipstick. The dip-
stick is the only way to accurately determine the engine
oil level. The engine oil level should always be between
the add and full marks on the dipstick.
Hydraulic Fluid Filter Gauge
The fluid filter gauge (refer to Figure 5.5) is located on the
return line filter on top the reservoir. The reservoir is be-
hind the door on the left side of the turntable. During high
pump flow situations, the gauge indicates the condition
of the filter. When the needle on the gauge is in the red
zone, its time to change the filter.
Filter Gauge
Fuel Tank
Fluid Level and
Temperature Gauge
