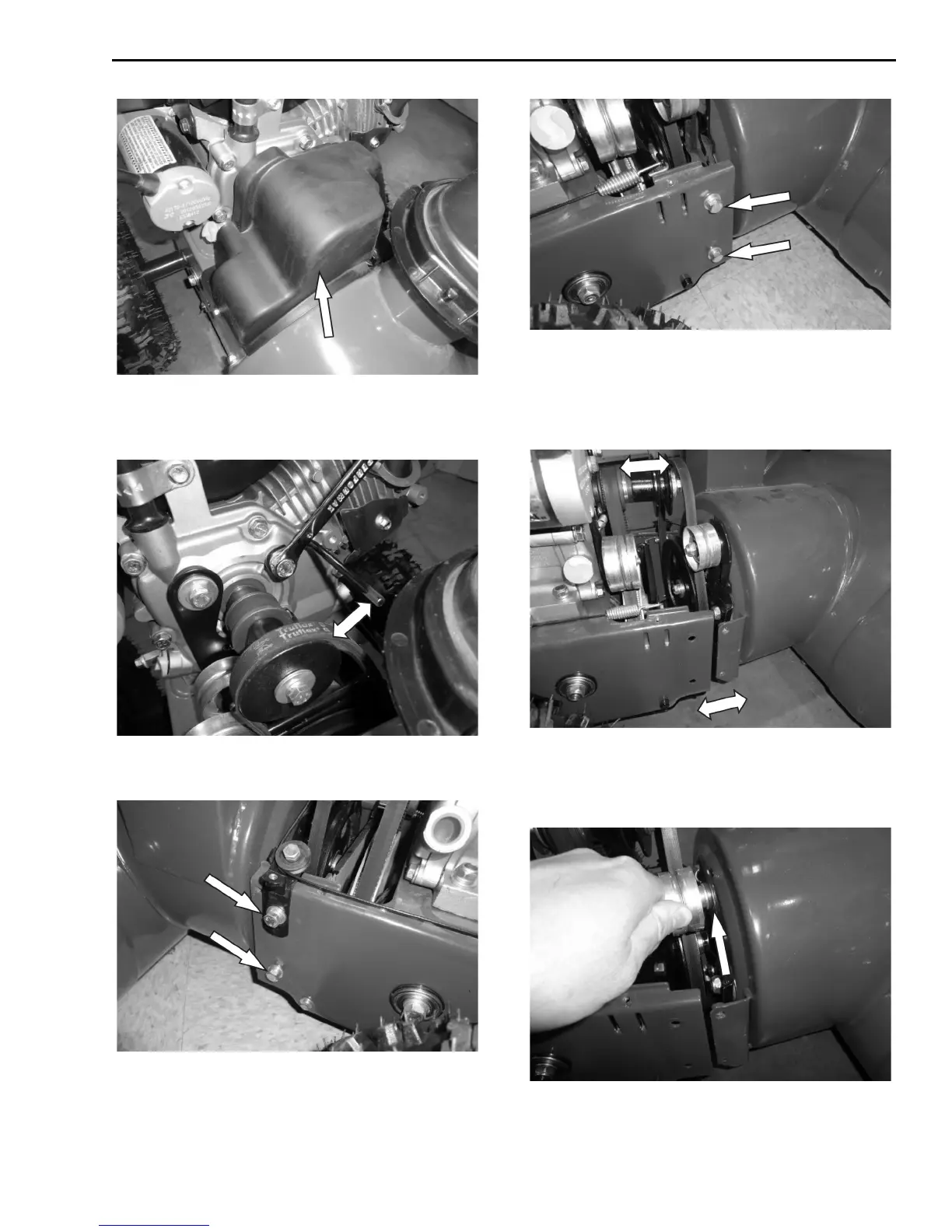

3. Loosen the belt guide pin hex head screw
(installed on engine crankcase) and rotate the
pin away from the pulley.
4. Left Side - Loosen the hex screws attaching
the auger housing to the main frame.
5. Right Side - Remove the hex screw, lock
washers and flat washers attaching the auger
housing to the main frame.
6. Remove the belt from the drive pulley while
pulling the right side of the auger housing
away from the main frame just enough to
access the belt and auger pulley.
7. Push the auger tension pulley arm to move
the auger brake, away from the belt to allow
removal of the belt.
