8

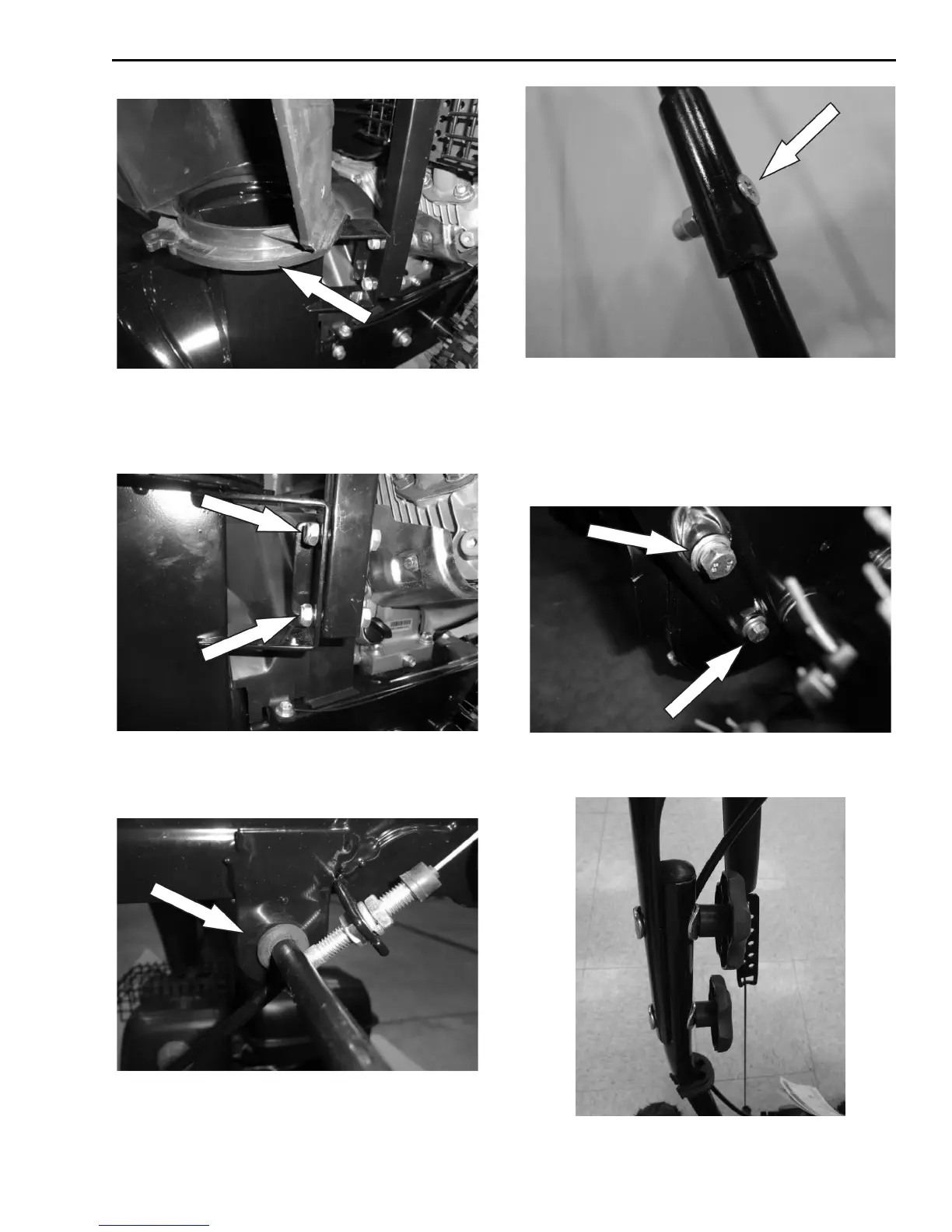

2. Attach the chute rotation bar to the mount
bracket onto the chute housing using two hex
screws, washers and locknuts. Tighten
fasteners securely.
3. Slide the upper chute crank rod through the
mounting hole under the control panel and
into the lower chute crank rod.
4. Align the holes and connect the crank rods
using the Phillips head screw and hex nut.
NOTICE: Make sure all fasteners are tightened
before starting the machine.
Handle Assembly
1. Attach the lower handles using four (4) bolts.
Each side will require two (2) bolts.
2. Attached the upper handle to the lower handle
using four (4) knobs, washers and bolts.
