9

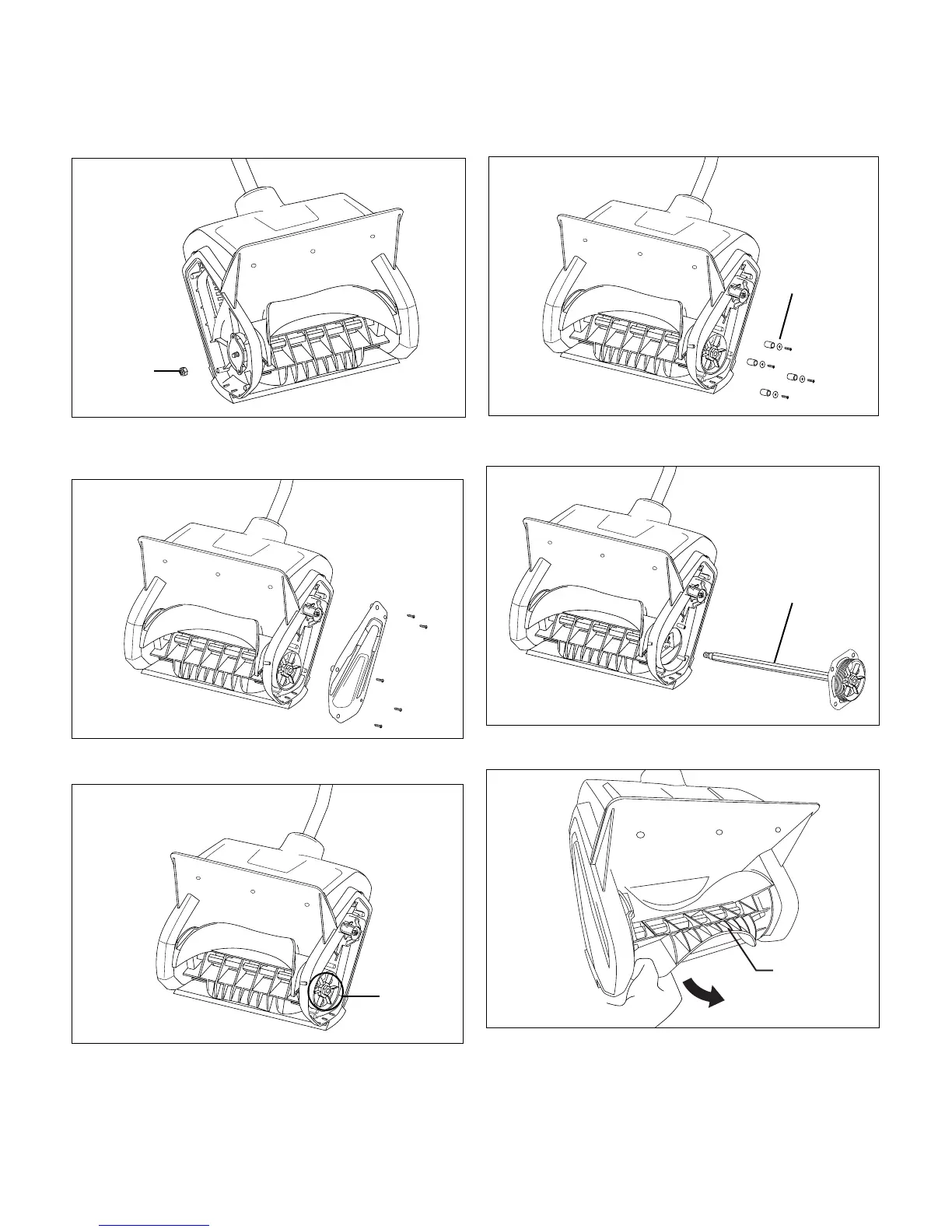

2. Secure the auger as you disassemble the auger assembly
nut (Fig. 12).
3. Disassemble the left side cover by removing the ve (5)
screws that hold it in place (Fig. 13).
4. Remove the belt from the drive wheel (Fig. 14).
5. Remove the screws and the bushings from the drive wheel
(Fig. 15).
6. Remove the auger axle set (Fig. 16).
7. Remove the old auger from the housing (Fig. 17).
Fig. 12
Auger
assembly
nut
Fig. 13
Fig. 14
Drive
wheel
Fig. 15
Screws and
bushings
Fig. 16
Auger axle set
Fig. 17
Auger
