SNOWJOE 323E - Replacing the Belt

10
8. Install the replacement auger by following the above steps
in reverse order (Fig. 18).
Replacing the Belt
mWARNING! Disconnect the power from the electric
snow shovel before performing this task.
1. Disassemble the right side cover by removing the ve (5)
screws that hold it in place (Fig. 11).
2. Disassemble the left side cover by removing the ve (5)
screws that hold it in place (Fig. 13).
3. Remove all housing screws and set the upper housing
apart from the lower housing (Fig. 19).
4. Remove the four (4) screws and two (2) nuts from the
motor support (Fig. 20).
5. Remove the motor support from the body (Fig. 21).
6. Remove the old belt from the body by slowly turning the
auger while lifting the belt (Figs. 22 & 23).

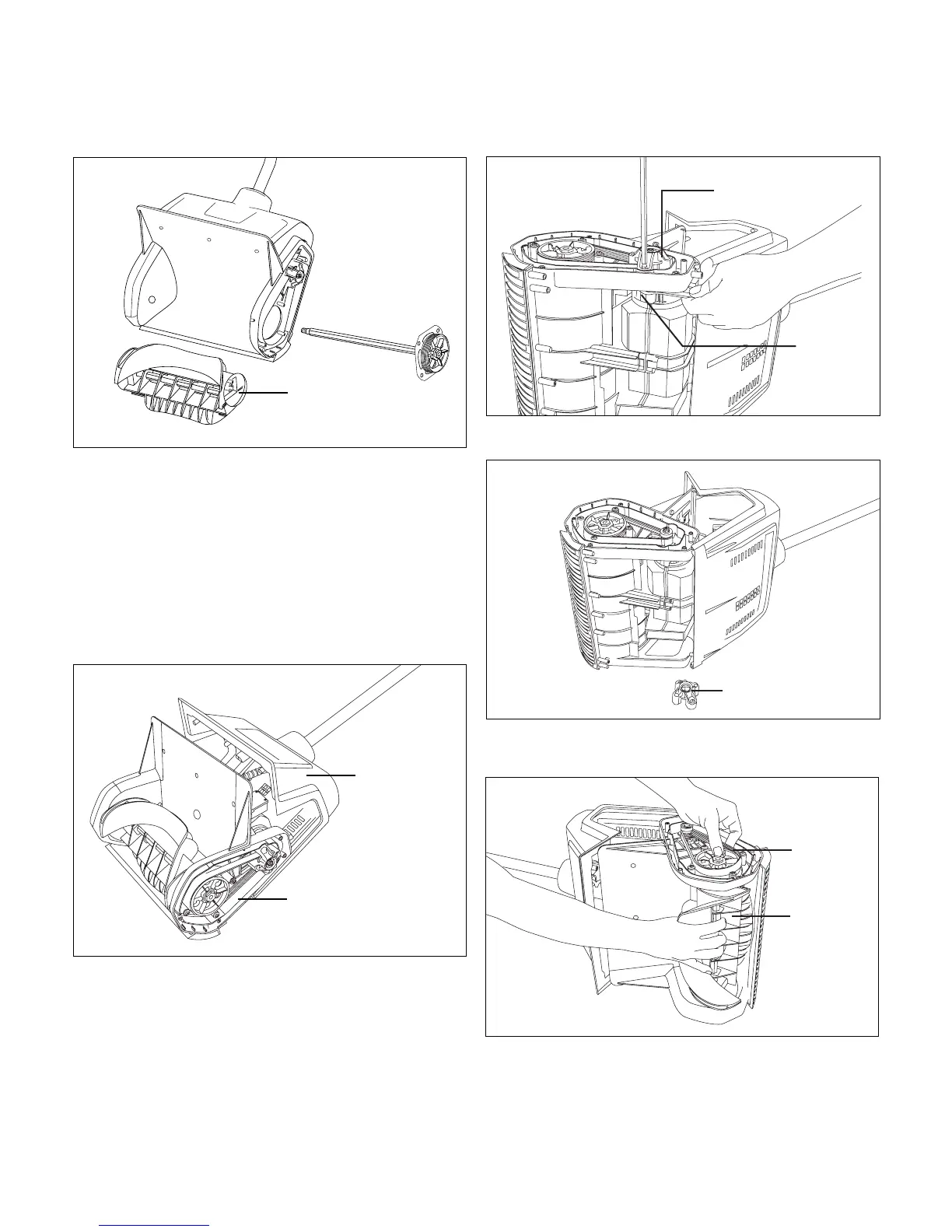

Fig. 18
Auger
Fig. 19
Upper housing
Lower housing
Fig. 20
Motor support
with 4 screws
2 nuts
Fig. 21
Motor support
Fig. 22
Belt
Auger
