ENGINE CONTROLS (LEVERS) (Figure 7.6.2)
Engine operation requires use of four levers located on pedestal console in
cabin :
– power lever (Item 2), and its detent for reverse (Item 6)
– propeller governor lever (Item 1),
– condition lever (Item 3),
–”MAN OVRD” emergency fuel regulation lever (Item 5),
NOTE :
Thumbwheel for lever friction (Item 4)

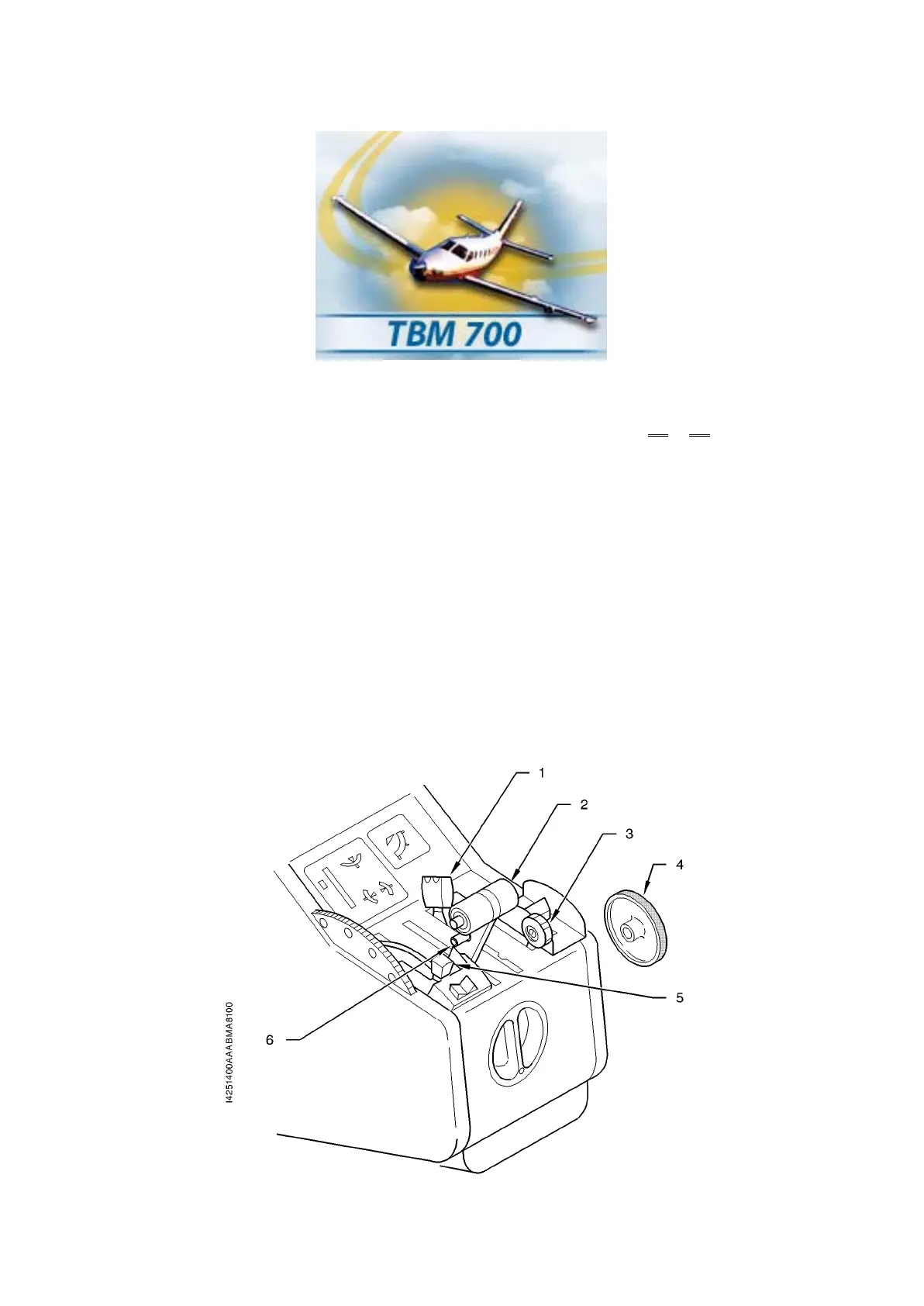

Figure 7.6.2 – ENGINE CONTROLS (LEVERS)
