3.3 Connecting the Speaker
All wiring should be carried out with 2-conductor stranded copper wire. The minimum wire
calibre is 18 AWG (1mm
2
). Wire size to be specified by the designer of the installation.
Follow local regulation for wiring requirements.

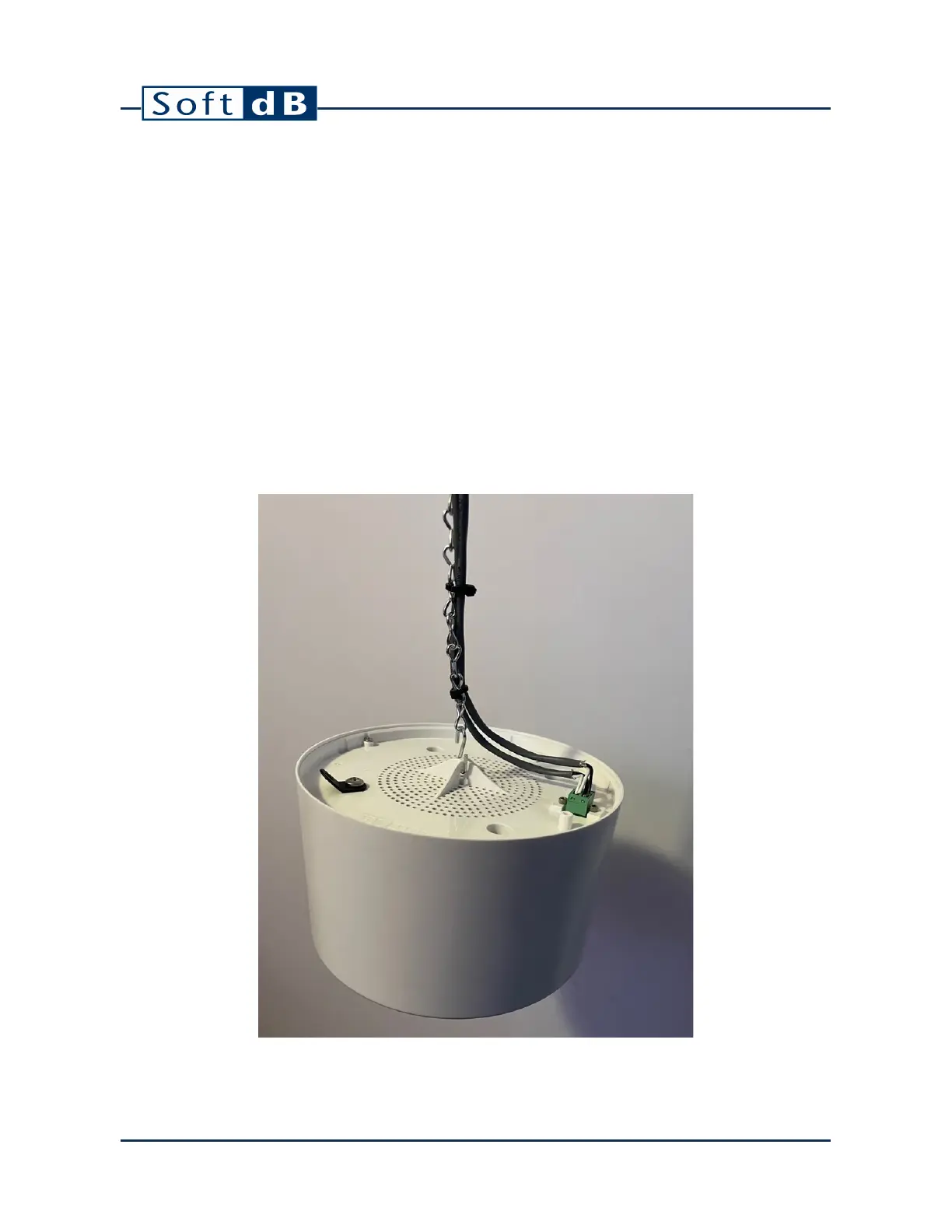

EXTERNAL CONNECTION:
The speakers are connected in parallel, in a daisy-chain configuration. Use the phoenix screw-
connector to connect the wire(s) to the speaker.
