Solace i Series - Relay Diagrams: Signal Manipulation; Adding Resistance Through Ground; Isolating a Wire for Multiplex Systems; Closing a Wire (Connecting Two Wires)

87
87A
85
30
86

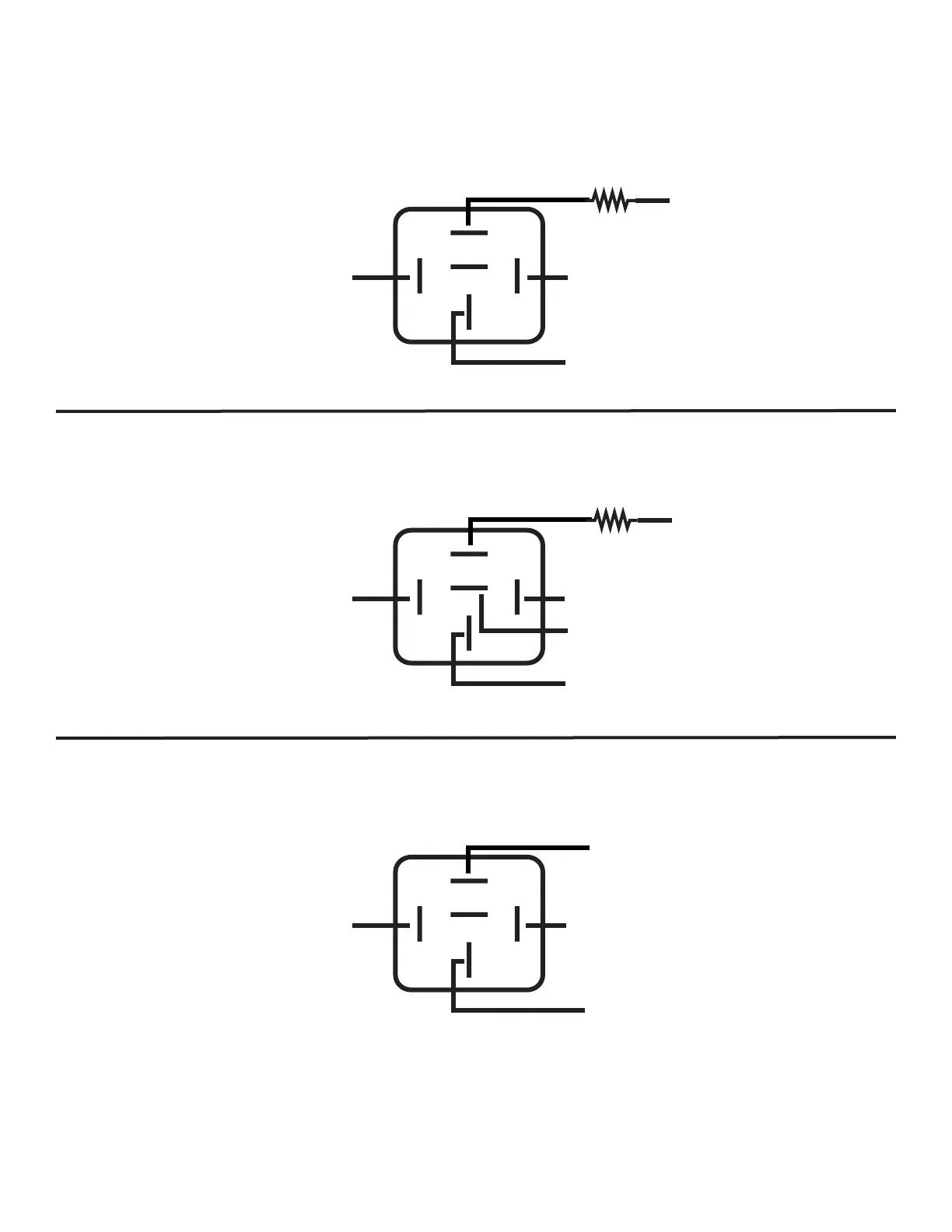

ADDING RESISTANCE THROUGH GROUND
NEGATIVE (-) SIGNAL FEED
CHASSIS GROUND (-)
TO (-) RESISTANCE CONTROLLED WIRE ON VEHICLE
RELAY DIAGRAMS CONTINUED
87
87A
85
30
86
ISOLATING A WIRE (5 WIRE) ALSO FOR MULTIPLEX SYSTEMS
NEGATIVE (-) SIGNAL FEED
POSITIVE(+) SIGNAL FEED
TO CAR SIDE OF CUT WIRE
87
87A
85
30
86
CLOSING A WIRE (CONNECTING 2 WIRES)
TO WIRE 1 TO BE CONNECTED
TO WIRE 2 TO BE CONNECTED
POSITIVE (+) SIGNAL FEED
TO SWITCH SIDE OF CUT WIRE
POSITIVE(+) SIGNAL FEED
NEGATIVE (-) SIGNAL FEED
USED FOR MULTIPLEX SYSTEMS
