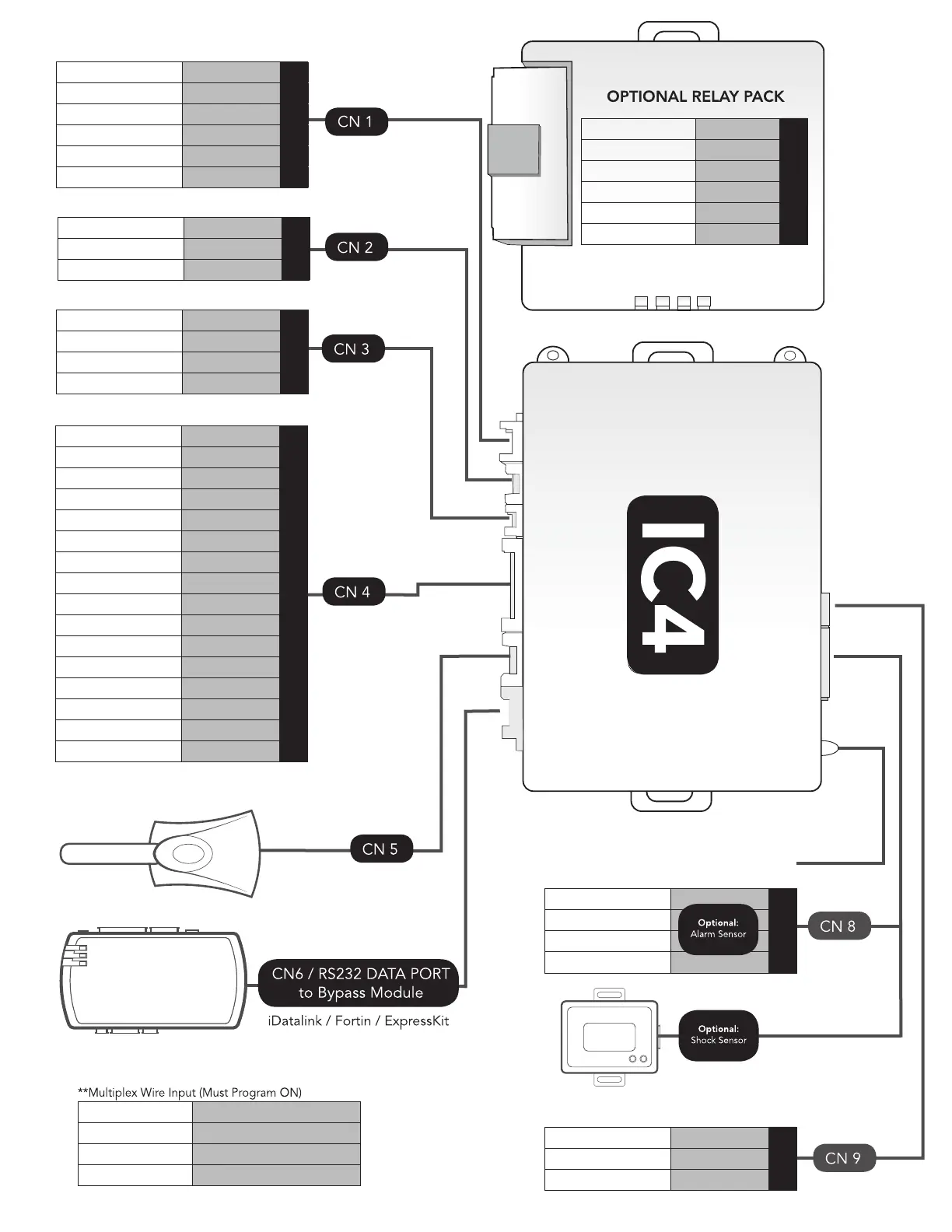

Solace i Series - Wiring Diagram and Component Overview; Main Connectors (CN1-CN5); Specialized Connectors (CN6, CN8, CN9); Optional Relay Pack

( - ) GROUND WHEN ARM 4
12V+ OUTPUT 3
WARN AWAY 2
INSTANT TRIGGER 1
GROUND AUX ALARM TRIGGER / GLOW PLUG
GROUND THROUGH 12K (-) TRIGGER START
GROUND THROUGH 27K ARM & LOCK
GROUND THROUGH 47K DISARM & UNLOCK
( - ) 325mA LOCK GREEN 1
( + ) 12V+ OUTPUT EMPTY 2
( - ) 325mA UNLOCK BLUE 3
* These Connections are PROGRAMMABLE
NOT USED BLACK/BROWN 1
NOT USED BLACK/GREEN 2
NOT USED BLACK/BLUE 3
NOT USED BLACK/YELLOW 4
( - ) 325mA GWR WHITE/PURPLE 1
( - ) 325mA GROUND BLACK 2
( + ) 12V+ OUTPUT RED 3
* ( - ) 325mA DISARM BLUE/WHITE 1
* ( - ) 325mA RE-ARM GREEN/WHITE 2
( - ) 325mA TRUNK RED/WHITE 3
( + ) BRAKE IN PINK 4
( - ) PARK BRAKE BLACK/WHITE 5
( - ) DOOR IN GREEN 6
( + ) DOOR IN PURPLE 7
(-) HORN BROWN/BLACK 8
( - ) HOOD SWITCH IN GRAY 9
( - ) MULTIPLEX INPUT **GRAY/BLACK 10
(AC) TACHOMETER IN PURPLE/WHITE 11
* ( - ) 325mA GWA/ AUX WHITE/PURPLE 12
* ( - ) 325mA IGNITION/ AUX PINK/BLACK 13
* ( - ) 325mA ACCESSORY/ AUX ORANGE/BLACK 14
* ( - ) 325mA STARTER/ AUX PURPLE/BLACK 15
* ( - ) 325mA PARK LIGHT/ AUX WHITE/BLACK 16
12V TO STARTER PURPLE 1
12V CONSTANT IN RED 2
*12V TO 2nd IGN/ACC/STRT/PROG PINK/WHITE 3
12V TO ACCESSORY ORANGE 4
12V CONSTANT IN RED / WHITE 5
12V TO IGNITION PINK 6
12V CONSTANT IN RED 1
( + ) 500mA 12V TO STARTER PURPLE 2
( + ) 500mA 12V TO IGNITION PINK 3
SYSTEM GROUND BLACK 4
( + ) 500mA 12V TO ACCESSORY ORANGE 5
(+) 500mA *12V TO 2nd IGN/AUX/STRT/SIREN PINK/WHITE 6
*
WIRE LOOP
UNCUT = MANUAL
CUT = AUTOMATIC
