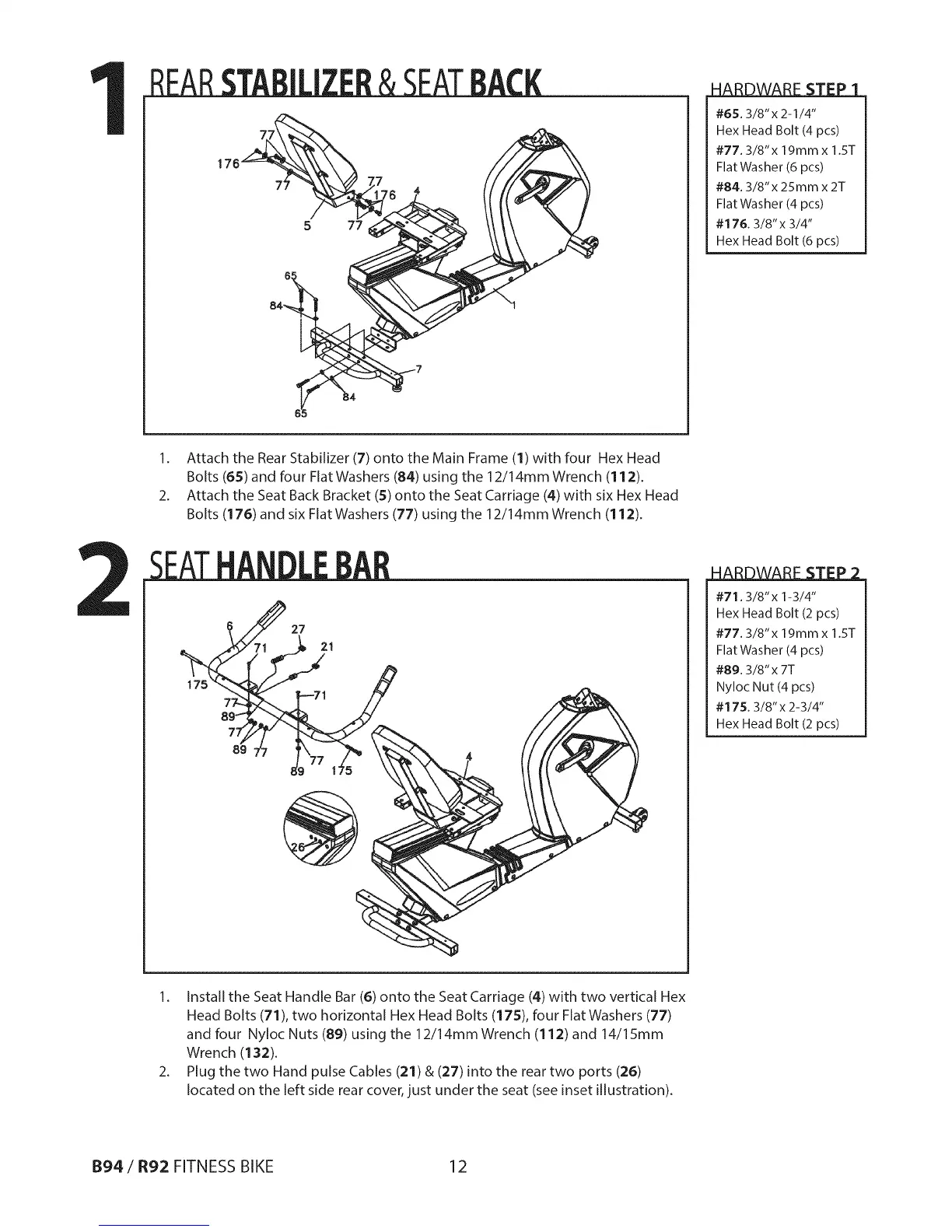

SOLE B94 - REAR STABILIZER & SEAT BACK (R92); SEAT HANDLE BAR (R92)

REARSTABiLiZER&SEATBACK
176 7777_
• i
#65.3/8"x 2-1/4"
Hex Head Bolt (4 pcs)
#77.3/8"x 19mm x 1.ST
Flat Washer (6 pcs)
#84.3/8"x 25ram x 2T
Flat Washer (4 pcs)
#176. 3/8"x 3/4"
Hex Head Bolt (6 pcs)
1. Attach the Rear Stabilizer (7) onto the Main Frame (1) with four Hex Head
Bolts (65) and four Flat Washers (84) using the 12/14mm Wrench (112).
2. Attach the Seat Back Bracket (5) onto the Seat Carriage (4) with six Hex Head
Bolts (176) and six Flat Washers (77) using the 12/14mm Wrench (112).
27
21
71
I
• i
#71.3/8"x 1-3/4"
Hex Head Bolt (2 pcs)
#77.3/8"x 19ram x 1.ST
Flat Washer (4 pcs)
#89.3/8"x 7T
Nyloc Nut (4 pcs)
#175.3/8"x 2-3/4"
Hex Head Bolt (2 pcs)
1. Install the Seat Handle Bar (6) onto the Seat Carriage (4) with two vertical Hex
Head Bolts (71), two horizontal Hex Head Bolts (175), four Flat Washers (77)
and four Nyloc Nuts (89) using the 12/14mm Wrench (112) and 14/15mm
Wrench (132).
2. Plug the two Hand pulse Cables (21) & (27) into the rear two ports (26)
located on the left side rear cover, just under the seat (see inset illustration).
B94 / R92 FITNESS BIKE 12
