#139. 3/8"x 1-3/4"
Button Head Socket
Bolts (4 pcs)
#113. _10 x2T
Split Washers (4 pcs)

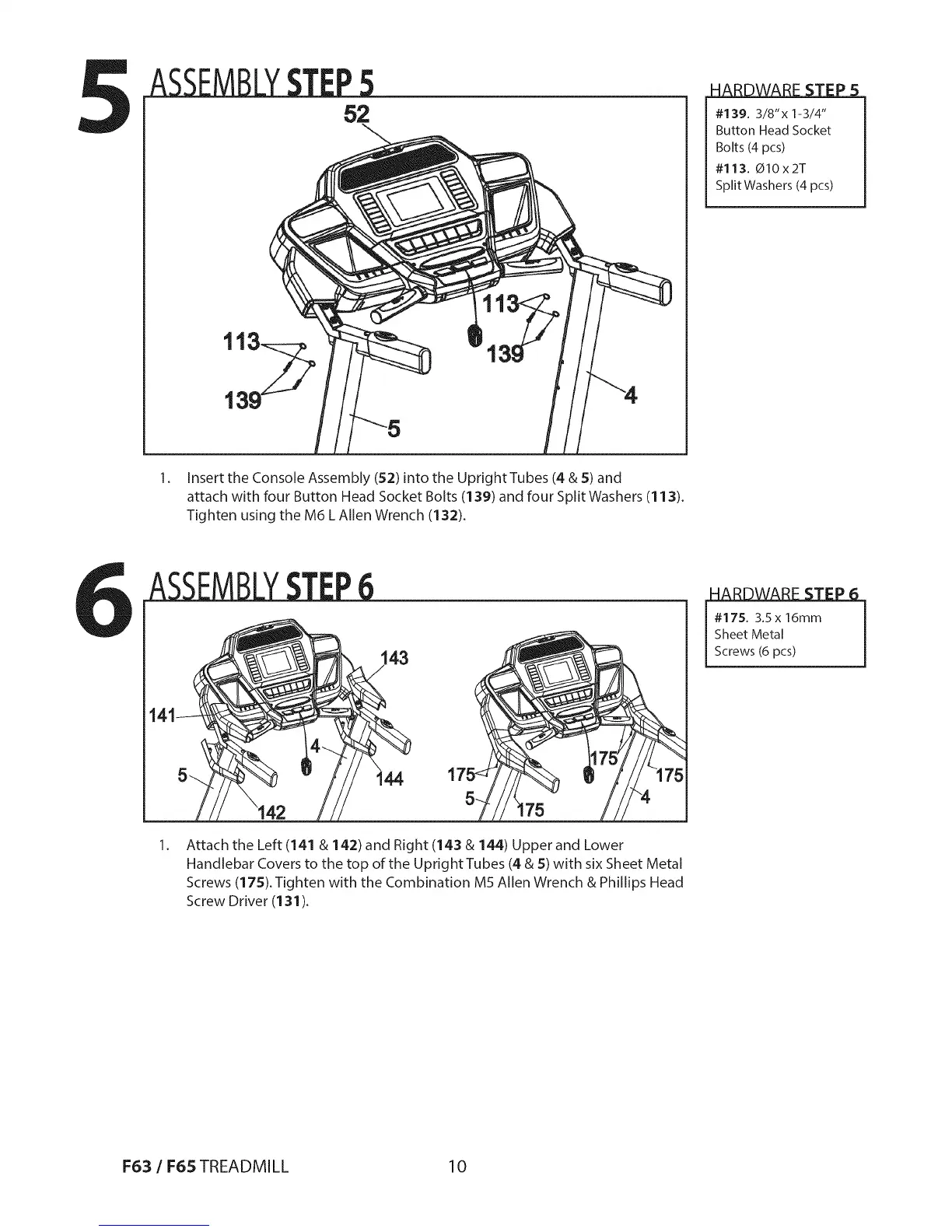

1. Insert the Console Assembly (52) into the Upright Tubes (4 & 5) and
attach with four Button Head Socket Bolts (139) and four Split Washers (113).
Tighten using the M6 L Allen Wrench (132).
#175. 3.5x 16mm
Sheet Metal
Screws (6 pcs)
1.
Attach the Left (141 & 142) and Right (143 & 144) Upper and Lower
Handlebar Covers to the top of the Upright Tubes (4 & 5) with six Sheet Metal
Screws (175). Tighten with the Combination M5 Allen Wrench & Phillips Head
Screw Driver (131 ).
F63 / F65 TREADMILL 10
