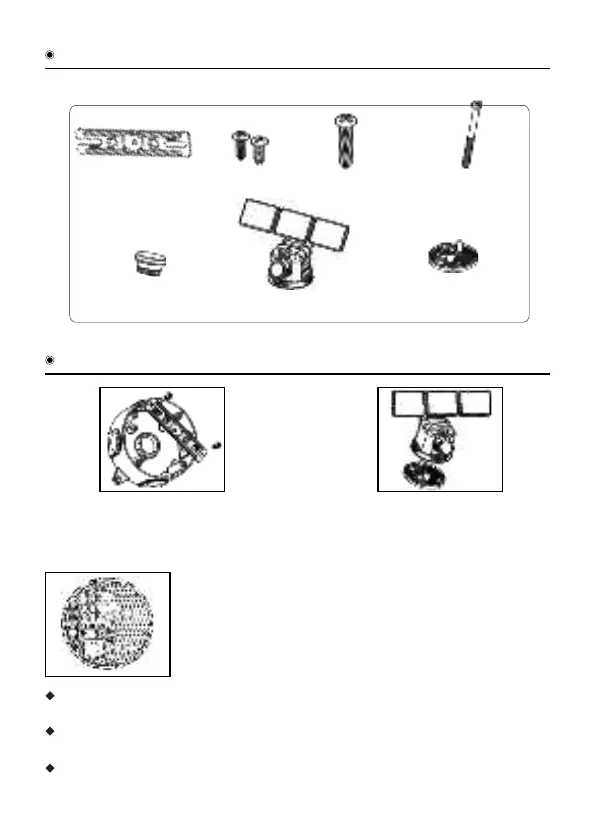

INSTALLATION
Mounting Accessories
A.Iron Plate x 1
B.Screw x 2C.Screw x 1D.Screw x 1
E.Silicone plug x 1F.Light Fixture x 1
G.Wiring Cover x 1
Installation Procedure
1.Install the Iron Plate (A) on the
junction box in right direction and
tight it with screws (B).
2.Remove the Wiring Cover (G)
from the light.
3.Wiring the Light Fixture
CAUTION: Make sure polarity is correct as shown
below.
■ The ends of the mains cable should leave enough
length to make it easy to make connections.
■ Connect the mains cable to the Connector Block.
Insert the blue wire from the original power supplier into the terminal
marked "N".
Insert the brown wire from the original power supplier into the terminal
marked "L".
Insert the green/yellow earth wire from the original power supplier into
the terminal marked "〨 ".
- 3 -
