AVS30 INPUT
L (Live) to L
N (Neutral) to N
E (Earth) to E
AVS30 OUTPUT
L (Live) to L out
N (Neutral) to N out
E (Earth) to E out if used

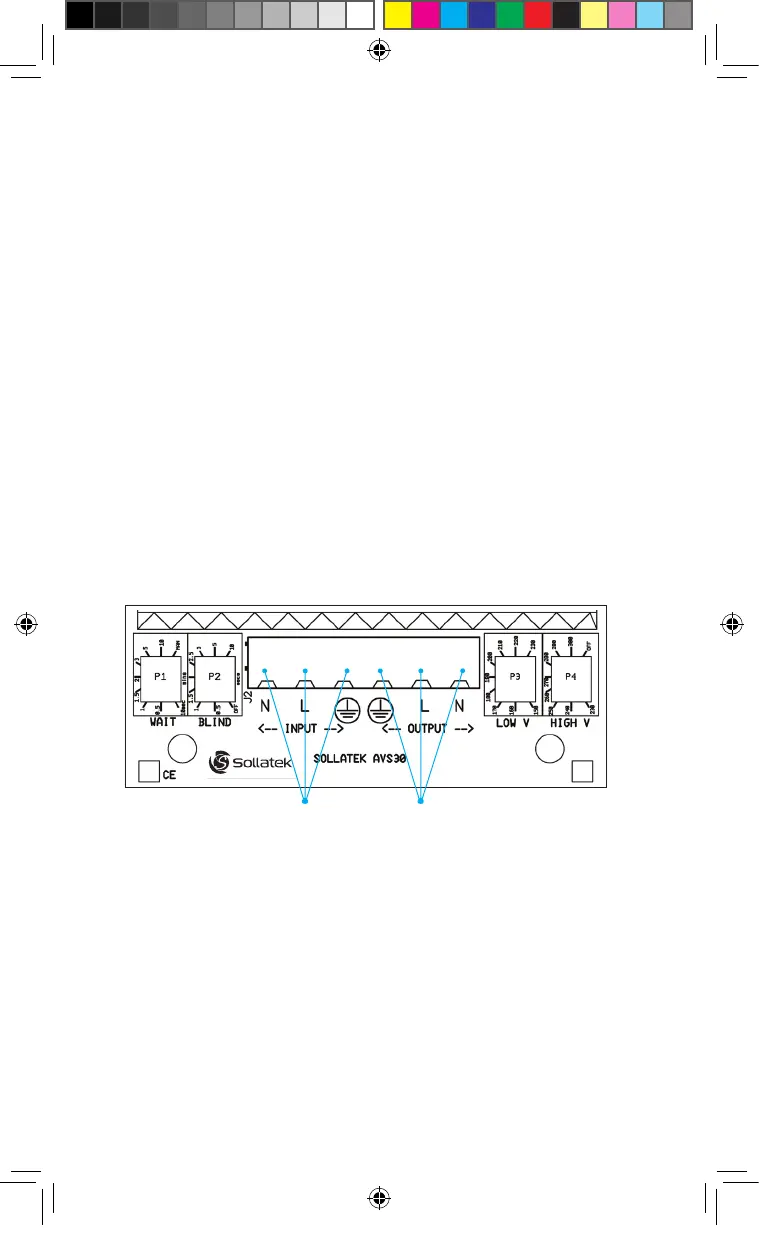

AVS30 CONNECTION TERMINALS LAYOUT
OPERATION
1. Make sure that your load does not exceed the rating of the AVS30 which is 30Amps.
2. The limits of the AVS30 as a standard are set for a window of 190-260 volts.
3. The AVS30 has to be wired to the mains supply and to the equipment it is supplying.
Please refer to the wiring diagram below.
4. On first switching on, there will be no output for the wait time of approximately three
minutes while the AVS30 monitors the mains.
a) To by-pass the wait time, press the re-set button on the front panel of the AVS30.
b) If a different wait time is required, then change the settings on potentiometer
marked WAIT. Settings are available in increments up to 10 minutes. You can also
set the WAIT dial to MAN. While on MAN the AVS30 will not reconnect the mains
unless the Reset button is pressed. For that period the yellow LED indicates that
the mains are within acceptable limits, after which the green LED goes on and the
load is connected.
5. A different blind time can be set if a different under voltage disconnect limit is
required. Under voltage blind time means the AVS30 ignores any undervoltage
conditions during this time. The AVS30 will not switch off unless the under voltage
last longer than the blind time.
6. It is recommended that the AVS30 is kept switched on, and the appliance switched on
and off to prevent activating the time delay every time the appliance is switched on.
