Hg5
®
Mini Amalgam Separator

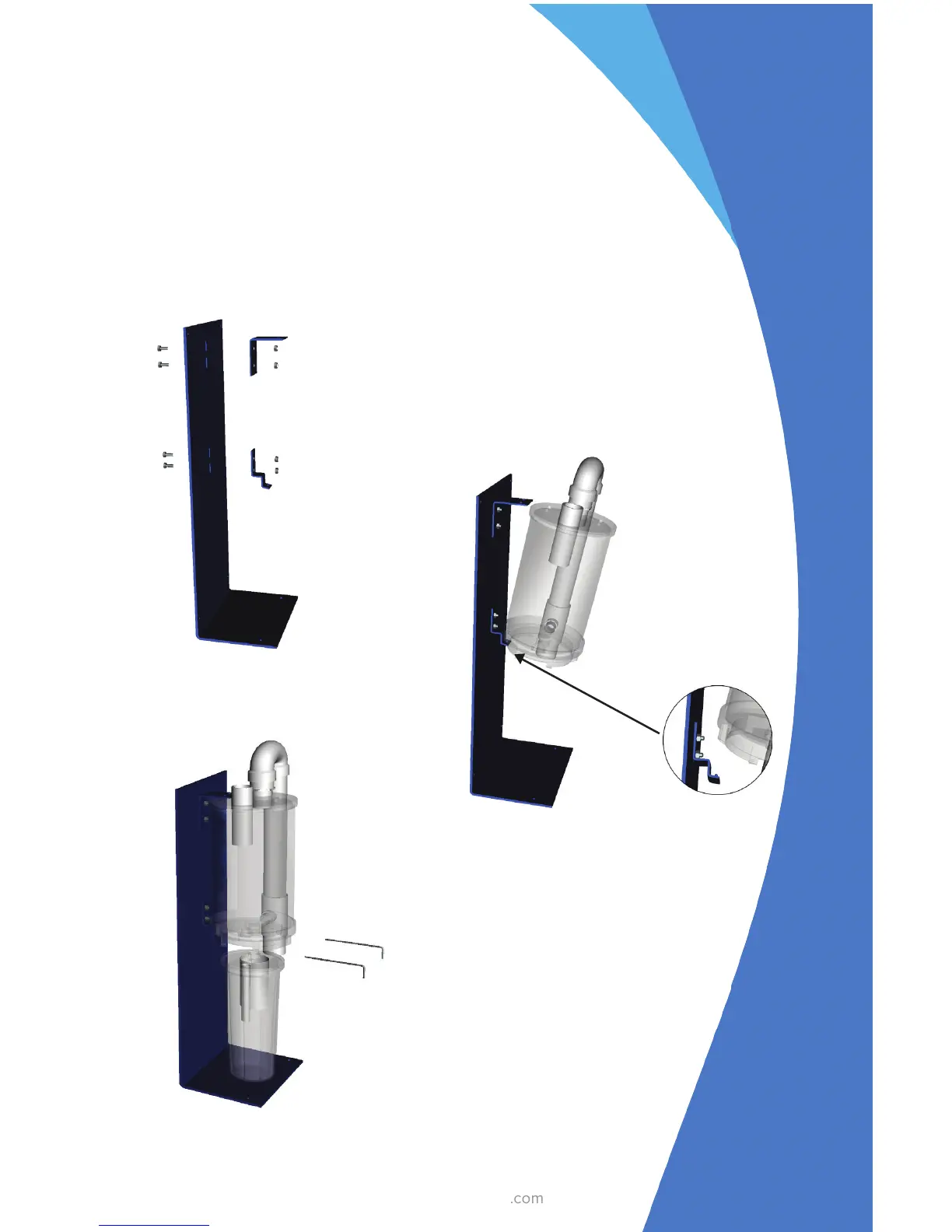

Initial Set-Up
TOP BRACKET
Leave bolts loose
enough to adjust
bracket height.
BOTTOM BRACKET
Slide to highest
position and tighten
until snug.
Attach collection
container to Hg5
®
Mini
Lock into place with
retaining pins.
A. Engage slot on pin
(see detail). Rotate
assembly into place
(keeping slot engaged
on pin). Push top
bracket down over
tabs until unit is
secured in place.
B. Tighten top bracket
bolts until snug.
Detail: Slot must
fully engage pin on
lower bracket.
When installing the collection
container: remove red caps
from the top of the collection
container, if applicable.
The Hg5® Mini Amalgam Separator is a Type 2 device
with a maximum flow of 1000 ml/min and maximum
fillable volume of 950 ml.
2.
1.
3.
