Mini Installation tips
Installation tips:
• Place in an easily accessed location for replacement
of collection container.
• Place between treatment rooms and vacuum source. DO
NOT connect to outlet of separating tank or water ring pump.
• The Hg5® Mini should be installed so that the outlet is
higher than the tank or pump inlet.
Environmental Specifications:
• Overall Dimensions: 11" W x 21.5" H x 8" D
• One Hg5® will serve up to 4 chairs.
• Minimize water lift height.
• Maximum Temperature = 120
o
F (52
o
C)
• Maximum Vacuum = 15" Hg (51 kPa)
• For dental use ONLY.
• Use provided inlet and outlet couplings. DO NOT glue
plumbing to the Hg5® Mini inlet and outlet.

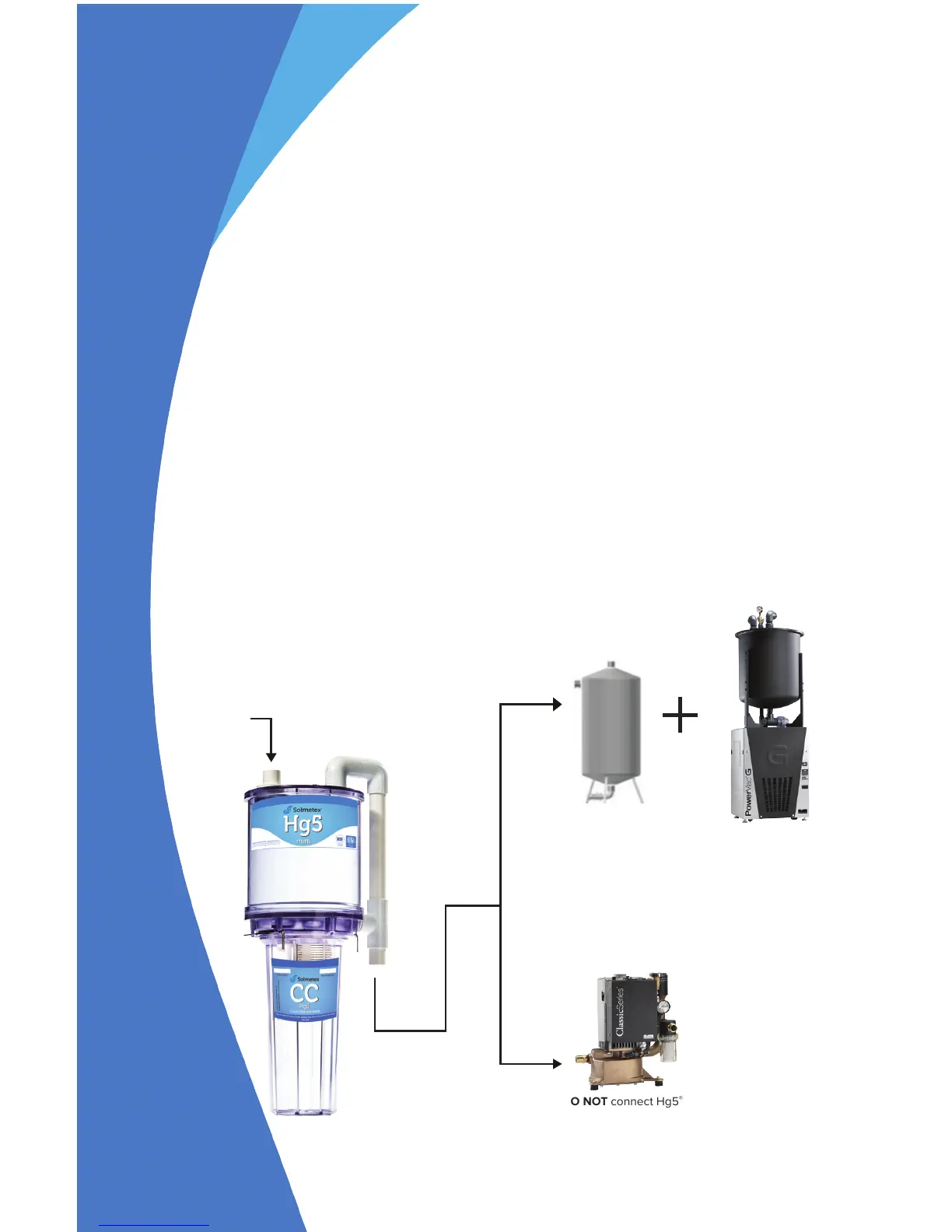

Treatment
Rooms
Hg5
®
Mini Inlet
Hg5
®
Mini Outlet
Tank
Inlet
Pump
Inlet
Dry Vacuum Unit
OR
DO NOT connect Hg5
®
Mini to outlet of tank.
DO NOT connect Hg5
®
Mini to
outlet of the water ring pump.
• Securely mount or support the baseplate.
• If mounting to a wall, use the four (4) plastic standos
(included), one on the back of each hole in the baseplate.
• Complete the registration form and return to Solmetex.
Functional with 15, 30, or 50 Gallon Tank
And with Single or Dual Wet Ring Pumps
• Write the installation date on the collection container.
• If attaching to the floor, the four (4) plastic standos will not
be required to be used.
