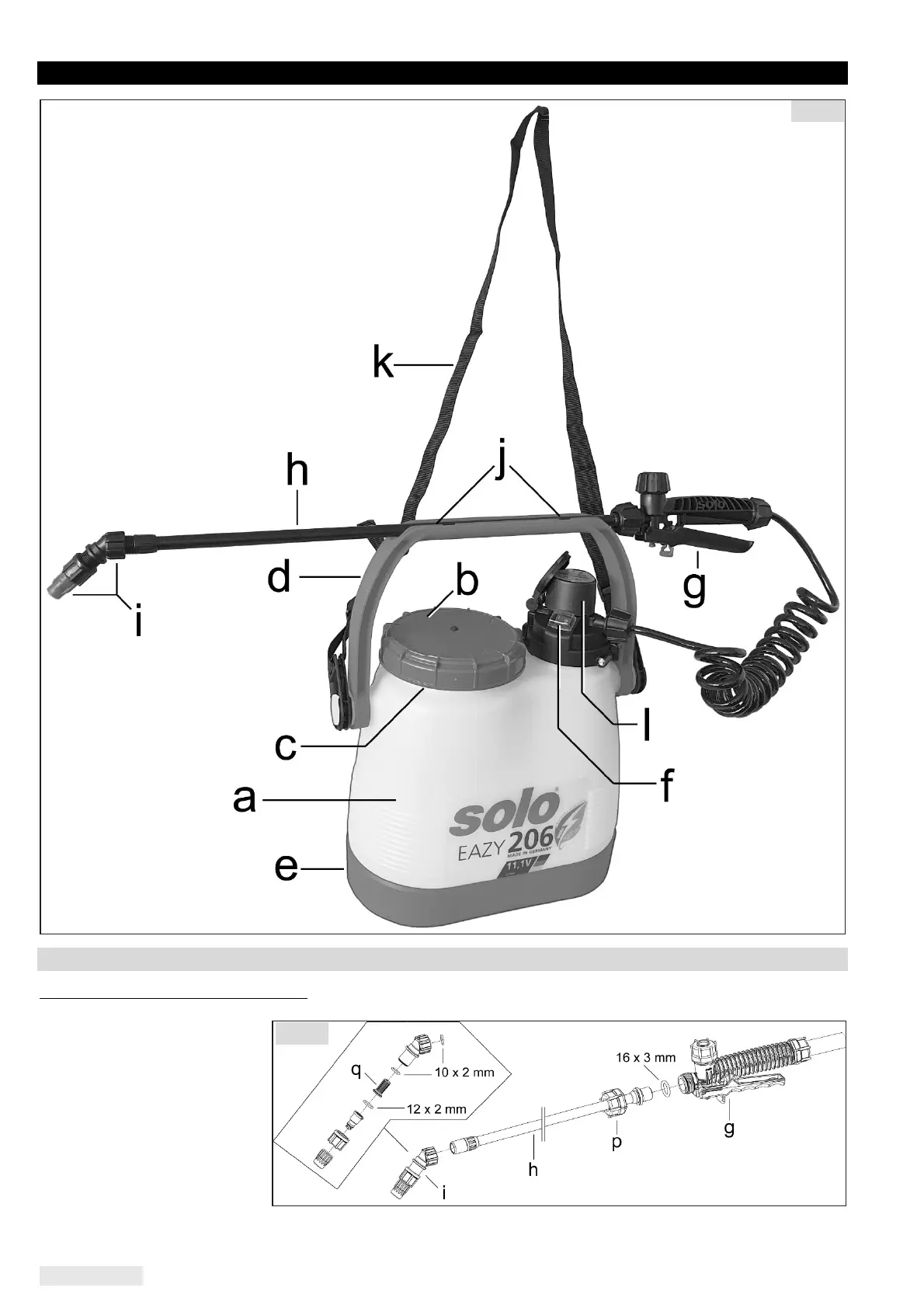

7 Work preparation
a. Spray tank
b. Tank lid screwed to the filling socket (c)
d. Carry handle
e. Standing foot
f. On/off switch
g. Hand valve
h. Spray wand
i. Nozzle attachment
j. Spray tube holder
k. Carrying belt
l. Rechargeable battery
Outside of work, the spraying wand (h)
is attached to the spraying wand holder (j)
in the handle (d).
7.1 Assembly
Assembly of the spraying wand (h):
 Start the cap nut (p)
evenly and screw the
spray tube with the
Spritzrohr mit
O-ring (16x3 mm) onto
the hand valve (g)
hand-tight without tools.
 Screw the nozzle
attachment (i) onto
the spray tube hand-tight
without tools.
Fig. 2
Fig. 1
