7

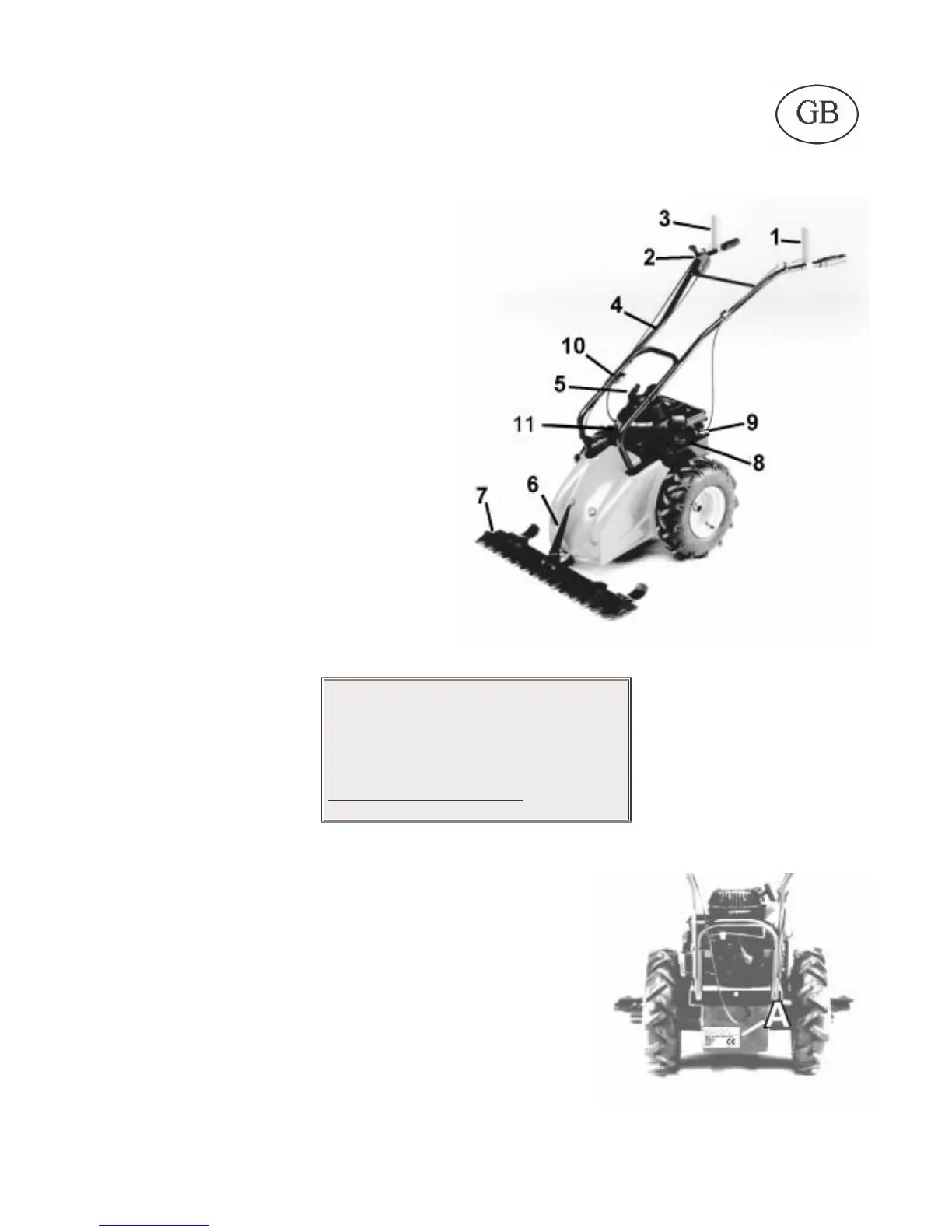

LIST OF MACHINE PARTS
1. Wheel engage-release lever
2. Accelerator hand lever
3. Lever for blade motion
4. Handles
5. Motor ignition
6. Grass divider
7. Central cutting blade
8. Fuel inlet
9. “Primer” push-button
10. Handlebar regulator
11. Motor oil cap
-Fig. n°1-
IDENTIFICATION AND TECHNICAL CHARACTERISTICS
Model: SOLO 530
Weight: 49 Kg.
Motor: 4 stroke
Make: BRIGGS & STRATTON SPRINT 40
Model: 10D902
Swept volume: 158 cc.
Max. pow er to driving shaft:
HP: 4 (Kw 2,94) at 3.200 rpm/1’
• Motor fuel: unleaded petrol -Fig. n°2-
• Complete with self-winding start-up device
• Safety device on handles to stop machine
• Dry air filter
• Consumption at 3600 r.p.m.: 0.8 Kg/hour
• Motor oil: AGIP DIESEL SIGMA SAE 30
• Oil quantity in gearbox : 0.6 lt
• Gearbox: oil bath single gear
• Gearbox oil: SHELL TELLUS T22
• Mowing speed : 2,15 Km/h
• Manually controlled wheel release and cutting bar
• Steering handles mounted on vibration-damping supports
• "Tractor" type rubber wheels 330 x 95 (3.50-6)
• Central mowing unit with bar cm.71
• Clutch with belt tightening pulley.
For machine identification (serial number, motor, weight, power) refer to the
data plate as shown in the photo. See Ref. "A in Fig. 2.
