Solo 546 - Page 5

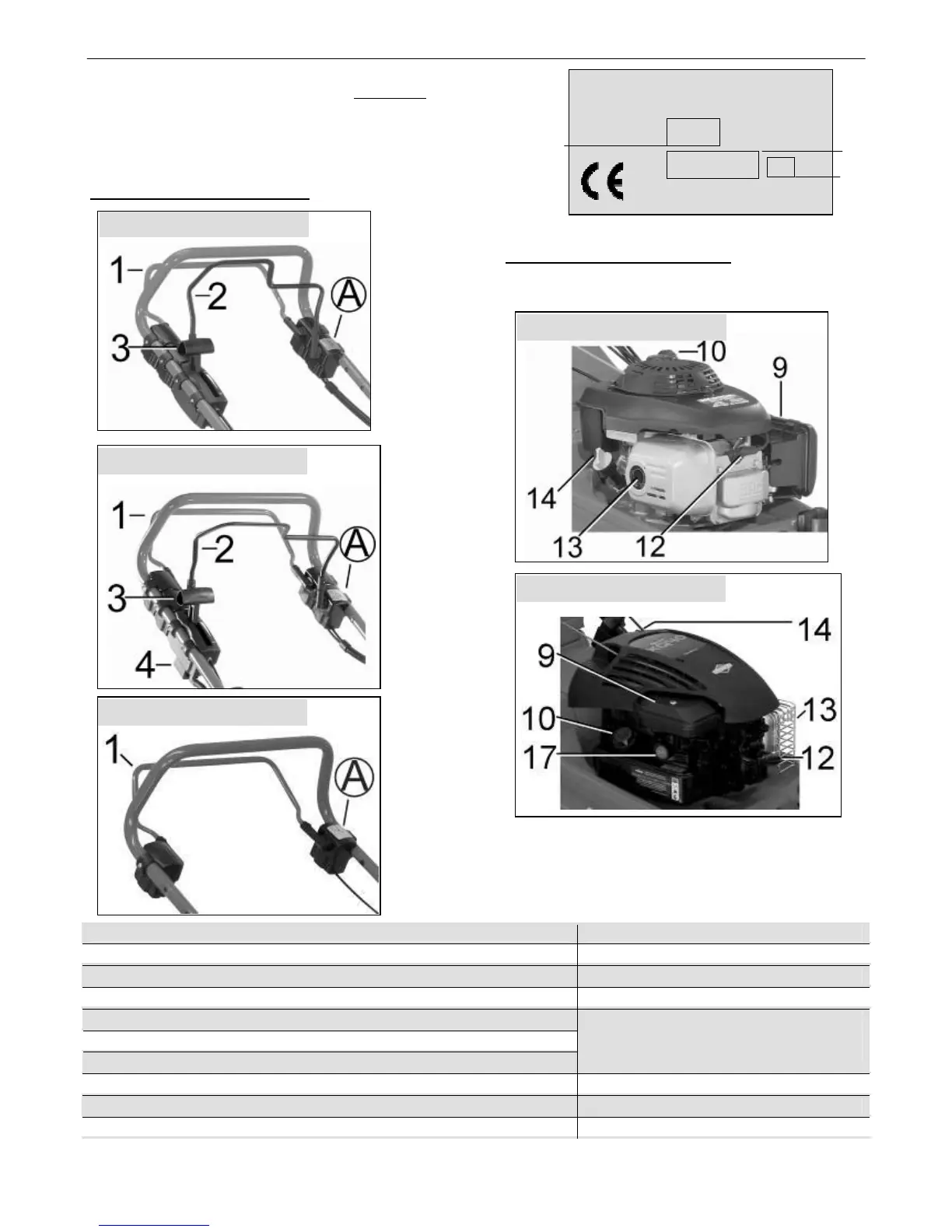

Control and function elements
ENGLISH 5
Type plate:
a: Type designation
b: Serial number
c: Build year (07 Î 2007)
Controls that are subject to model:
Engines that are subject to model_
models 546R and 546RS as per model 546 (Fig.1)
1. Brake lever, engine brake 11. Central height adjustment
2. Drive lever, self-propelled (546R, 546HR, 546RS) 12. Spark plug
3. Throttle lever (546, 546R, 546HR, 546RS) 13. Muffler
4. Key for electrical start-up (546RS) 14. Oil filler pipe
5. Starter grip
6. Grascatching device
7. Ejection shield
15. - Battery (546RS)
and
- Gear box (546R, 546HR, 546RS)
8. Pinning lever 17. Primer (546-60)
9. Air filter
10. Fuel tank
Fig. 2b: 546RS
Fig. 2a: 546R, 546HR
Fig. 2c: 546-60
Fig. 2e: Engine 546-60
Fig. 2d: Engine 546HR
SOLO KLEINMOTOREN GmbH
71069 SINDELFINGEN
Typ 546 28kg
Nr. xxxxxx yy .
Made in Germany
a
b
c
