out of the way of traffic and sheltered from severe weather exposure.
The mounting surface should be fairly flat. Be sure to allow
clearance for the cables. The unit is weather-proof, not waterproof,
so try not to mount it in a location where it will be submerged
or exposed to the extreme forces of wave impact during severe
conditions.

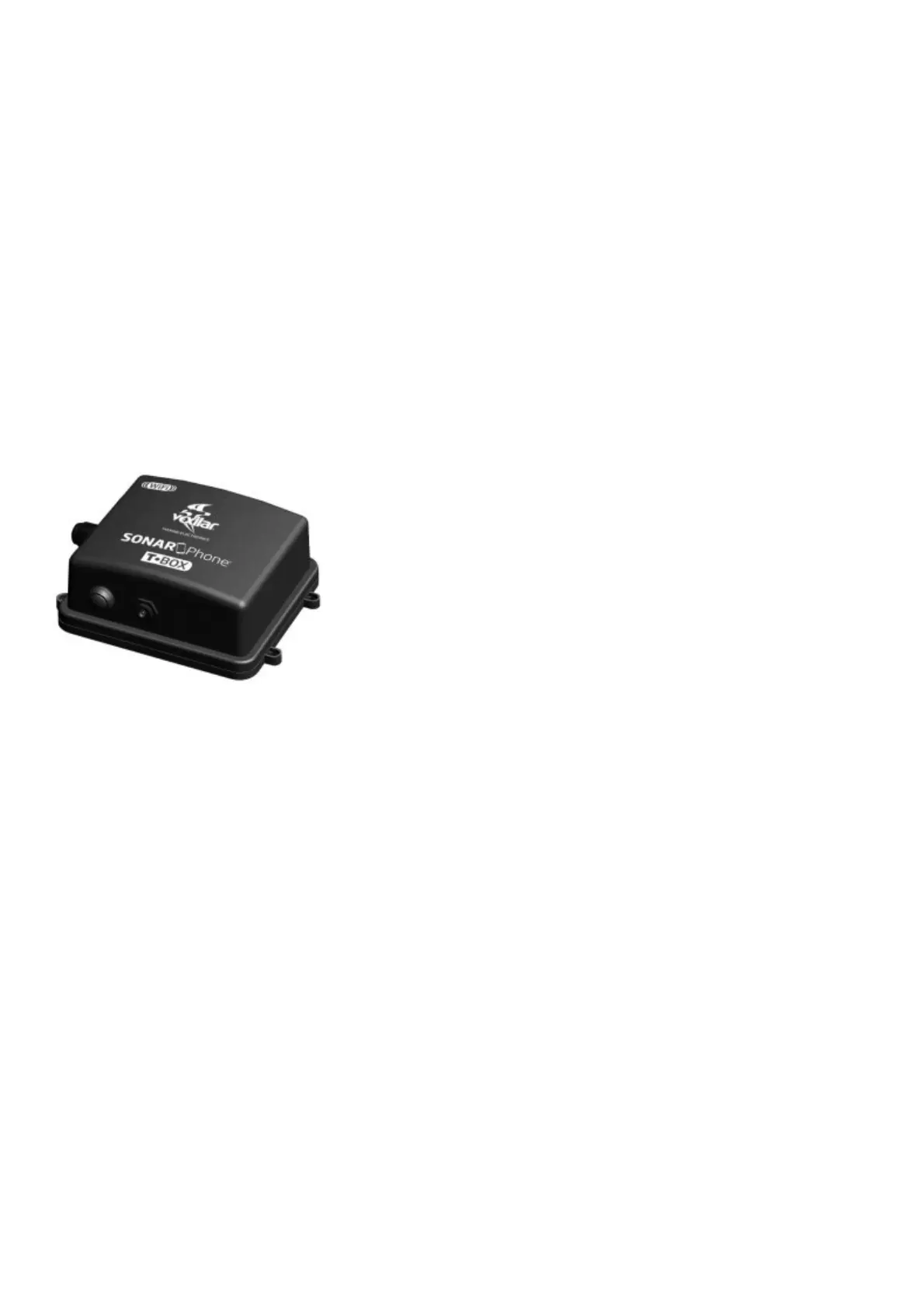

Mounting the SP200
1. Obtain four appropriate fasteners for your mounting location.
2. Position the SP200 in your intended mounting location.
3. Mark the four holes and drill each using the appropriate drill size.
4. Attach the SP200/SP300 using your four fasteners. Tighten securely.
5. Insert the power cable jack and tighten the transducer cable connection securely.
Ensure there is good clearance for the connectors.
SP200 Power Connection
SP200 requires a 12 volt power source to operate. A connection can
be made directly to a battery or a connection can be tapped into
a boat’s electrical system.
