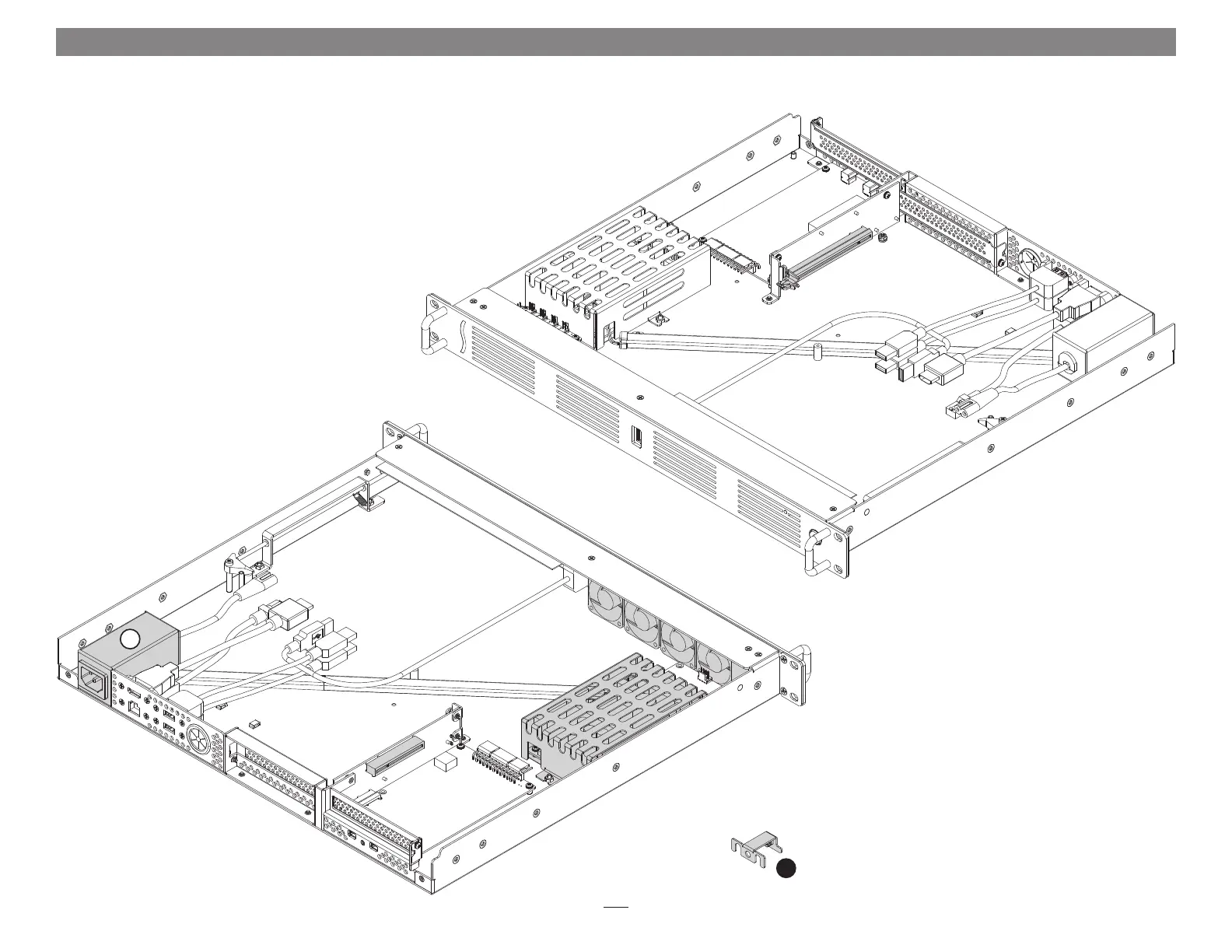

Chapter 2 – xMac mini Server 2H Description

➊

➋

➌

➍

➎

1 – PCIe Slot 1

This slot accepts up to an x16 mechanical, half-length,

full-height, single-width PCIe 2.0 card, and is also

compatible with PCIe 1.1 cards

2 – Power Hub

This hub routes power to the Mac mini and to the xMac

mini Server 2H’s power supply

3 – PCIe Slot 2

This slot accepts an x8 mechanical, half-length, full-height

PCIe 2.0 card, and is also compatible with PCIe 1.1 cards.

4 – Power Supply

This user-replaceable part provides power to the xMac

mini Server 2H’s PCIe slots, fans, and assorted printed

circuit boards

5 – Fan Assembly

This user-replaceable part provides airﬂow to cool the Mac

mini, installed PCIe cards, and other components inside

the enclosure

A – Thunderbolt Connector Lock

This lock secures Thunderbolt connectors when plugged

into the xMac mini Server’s Thunderbolt ports to prevent

accidental disconnection
