Grill Assembly

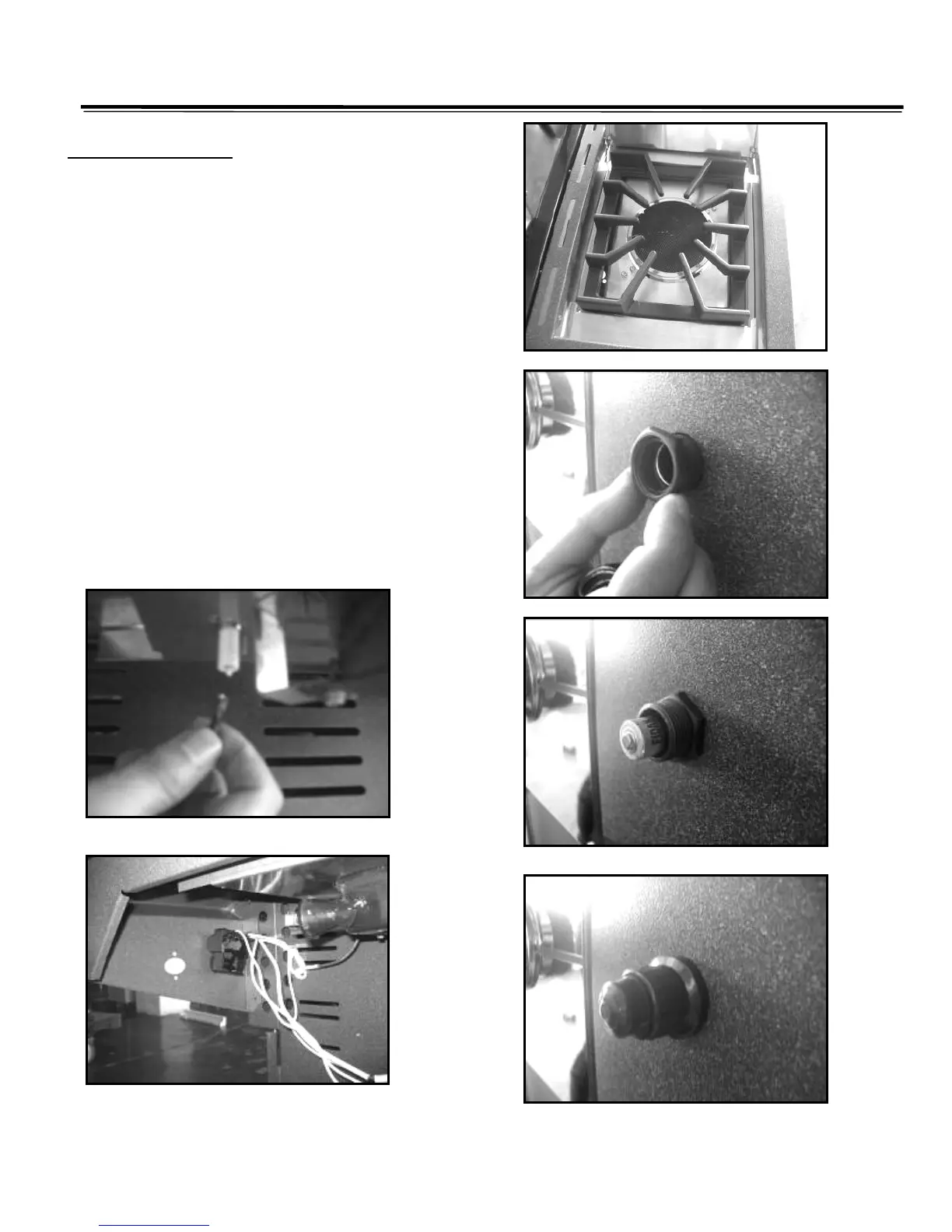

IGNITER ASSEMBLY
1. The battery, igniter cap must be installed before using.
2. Slide the threaded part of the igniter through the mounting
bracket and then through the igniter hole in the front of the
side burner shelf, then install the locknut. (See Fig. 14)
3. Install the battery, positive side outside. (See Fig. 15)
4. Screw igniter cap onto igniter. (See Fig. 16)
5. Attach one end of the side burner wire to the terminal
spade of the side burner electrode. (See Fig. 17)
7. Attach the four (4) wires coming out from the side of the grill
and the side burner wire to the igniter terminals.
(See Fig. 18)
NOTE: It does not matter which wire goes to which
terminal on the igniter.
Fig. 14
Fig. 15
Fig. 17
Fig. 16
Fig. 18
Fig. 13
