Sonos Ray User Manual

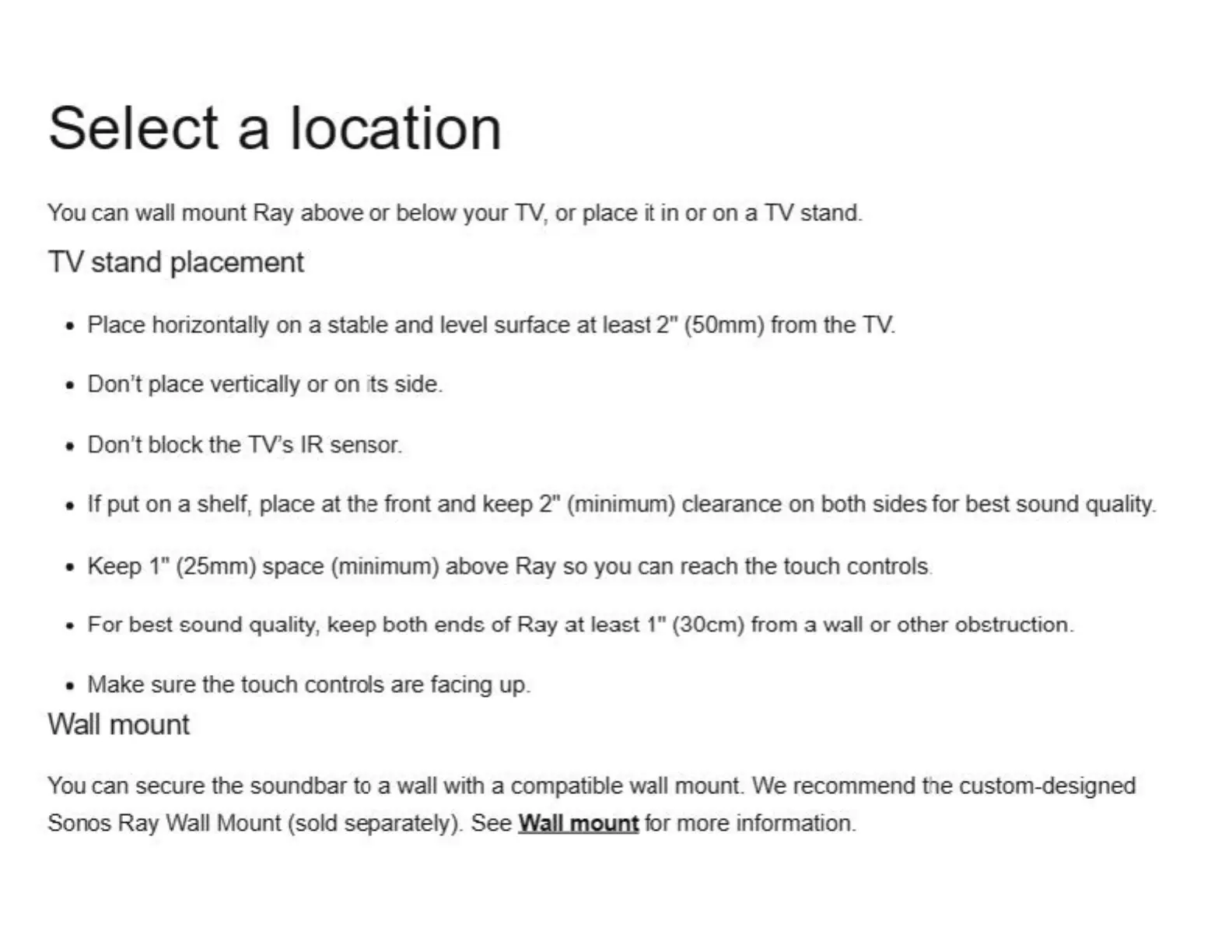

Select a location
You can wall mount Ray abo ve or below yo ur TV , or place it in or on a TV stand.
TV stand placement
• Place ho ri zontally on a stable and level surface at least 2" (50mm) from the TV.
• Don't place verti ca lly or on its side.
• Don't block the TV's IR sensor.
• If put on a shelf, place at the front and keep 2" (mi ni mum) clearance on both sides for best sound quality.
• Keep 1" (25mm) space (m in imum) abo ve Ray so you can reach the to uch co ntrols.
• For best so und quali ty , keep both ends of Ray at least 1" (30c m) fr om a wall or other obstruction.
• Make sure the touch controls are facing up.
Wa ll mount
You can secure the soundbar to a wa ll with a co mpatible wall moun t. We recomm en d th e custom-design ed
Sones Ra y Wall Mount (sold separately). See Wall mount for more inf ormation.

Sonos Ray Specifications

General

RMS rated power	- W
Audio output channels	- channels
Subwoofer included	No
Color name	Black with matte finish
Product color	Black
Virtual assistant	Amazon Alexa & Google Assistant
Apple AirPlay 2 support	Yes
Cables included	AC, Optical
Number of products included	1 pc(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
HDMI ports quantity	-
Connectivity technology	Wired & Wireless

Weight and Dimensions

Depth	95 mm
Width	559 mm
Height	71 mm
Cord length	2 m
Soundbar weight	1950 g
