5. ELECTRICAL DESCRIPTION
34
LZ T 123 7605 P1C
5.5 SIM Card Reader

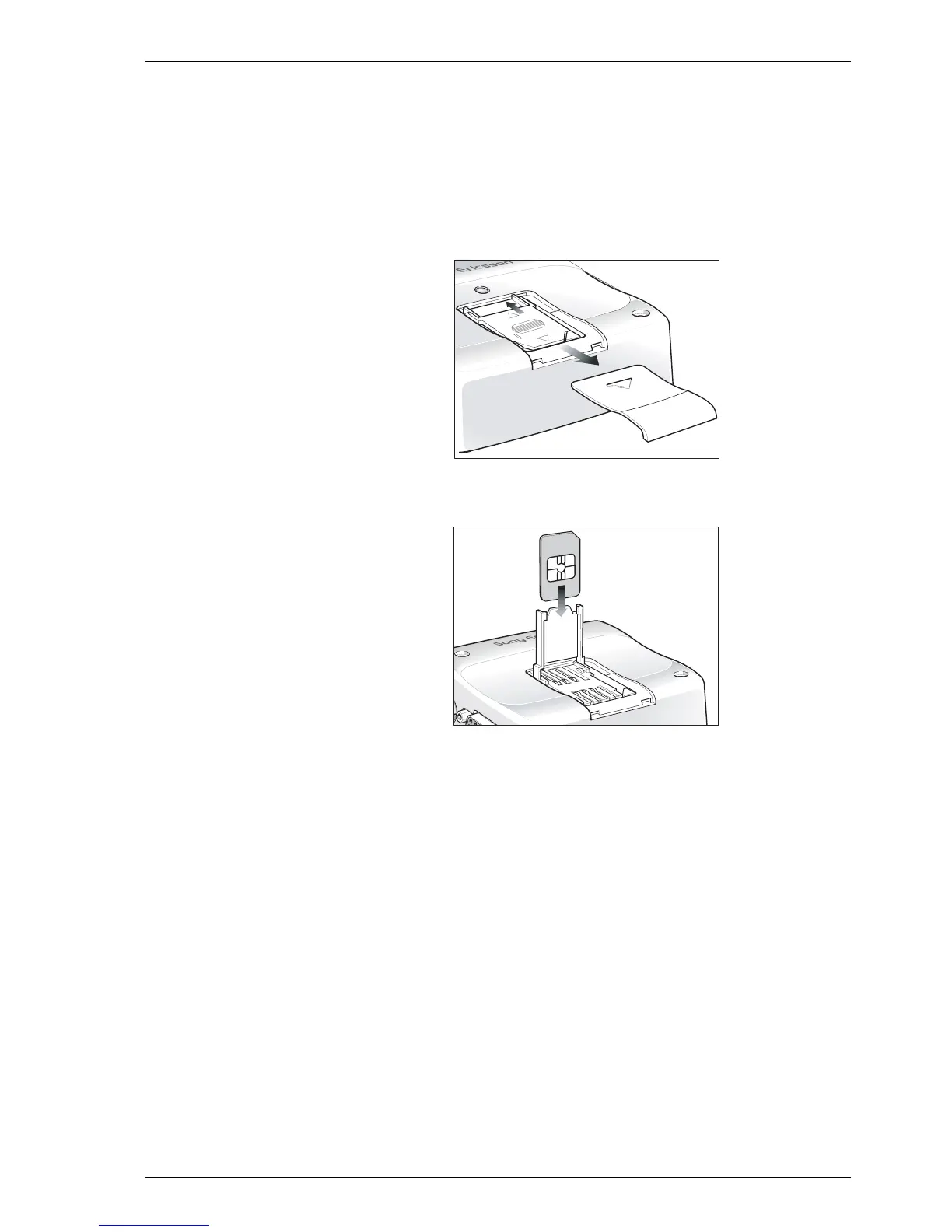

The module is fitted with a SIM card reader designed for 3V and 5V SIM
cards. It is the flip-up type which is lockable in the horizontal position and
is accessed through a removable panel as shown below.
The SIM card reader incorporates a SIM presence switch which detects
whether a SIM card is inserted. The full operation of the Control Terminal
relies on a SIM card being inserted.
Caution! Some Control Terminal functionality may be lost if you try to operate it
without a SIM card.
The SIM presence switch also ensures that when a SIM card is inserted or
removed the unit is reset, as long as the Control Terminal is switched ON.
Loggin with the SIM In
TBA
Logging with the SIM Out
TBD
