GB
10
G Control dial
H Multi/Micro USB Terminal
*
• Supports Micro USB compatible
device.
I Charge lamp
J HDMI micro jack
K
m (Microphone) jack
• When an external microphone is
connected, the microphone is
turned on automatically. If the
external microphone is a plug-in-
power type, the power of the
microphone is supplied by the
camera.
* For details on compatible accessories
for the multi interface shoe and the
Multi/Micro USB Terminal, visit the
Sony web site, or consult your Sony
dealer or local authorized Sony
service facility. You can also use
accessories that are compatible with
the accessory shoe. Operations with
other manufacturers’ accessories are
not guaranteed.

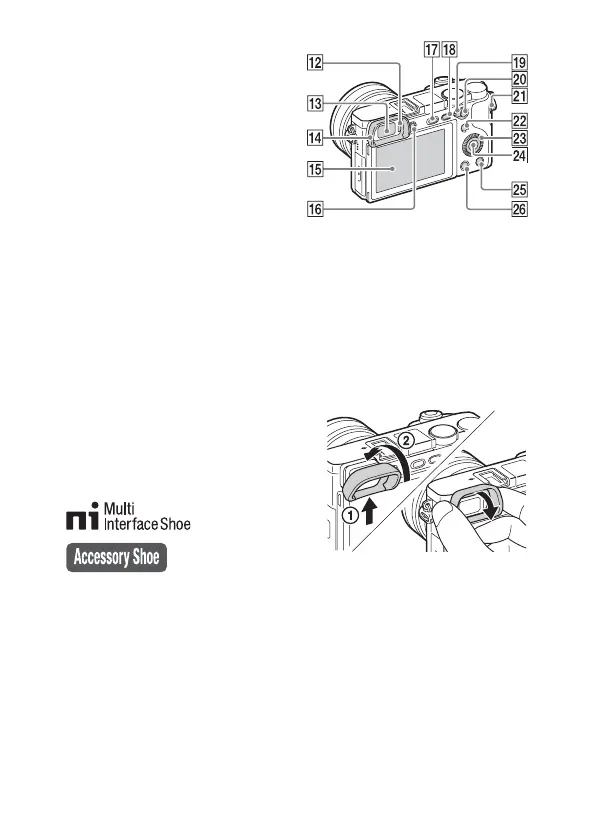

L Eye sensor
M Viewfinder
N Eyepiece cup
• Not attached to the camera at the
factory. It is recommended that
you attach the eyepiece cup when
you intend to use the viewfinder.
Attaching/removing the
eyepiece cup
• Remove the eyepiece cup when
you attach an accessory (sold
separately) to the Multi Interface
Shoe.
To Next Page
