KDL-48W700C / 40W700C / 32W700C
4-562-078-11(1)
LAN
HDMI 3 AUDIO IN
For HDMI 3 analogue audio connection.
DIGITAL AUDIO OUT (OPTICAL)
VIDEO IN 1 /
For a composite connection.
VIDEO IN 2 ,
COMPONENT IN /
• For a composite connection: Use VIDEO
IN 2 , and (L/R) or COMPONENT IN
/*.
• For a component connection: Use Y, PB,
P
R, and (L/R).
HDMI IN 1/MHL
You can connect your MHL (Mobile High-
definition Link) device using an HD quality
MHL cable.
AUDIO OUT /
To listen to the TV’s sound through the
connected equipment, press HOME. Select
[Settings] [Sound] [Headphone/Audio
Out] and then select the desired item.
USB 1/2
Connecting a large USB device may interfere
with other connected devices beside it.
HDMI IN 2/3/4
• If connecting a digital audio system that is
compatible with Audio Return Channel
(ARC) technology, use HDMI IN 2. If not, an
additional connection with DIGITAL AUDIO
OUT (OPTICAL) is necessary.
• If the device has a DVI jack, connect it to
HDMI IN 3 through a DVI-HDMI adaptor
interface (not supplied).
CABLE/ANTENNA
Connect to your cable or antenna (aerial).
* When connecting mono equipment, connect to the L
(MONO) audio jack.

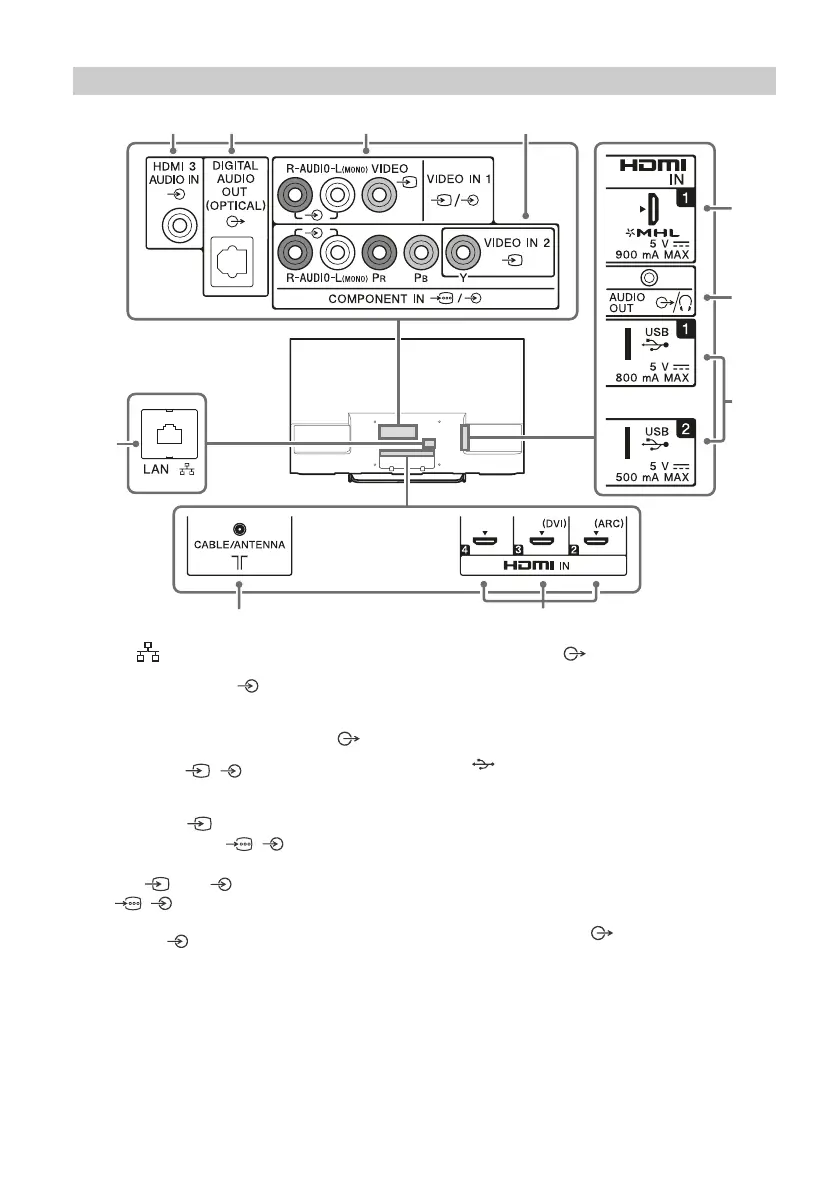

Inputs and Outputs
