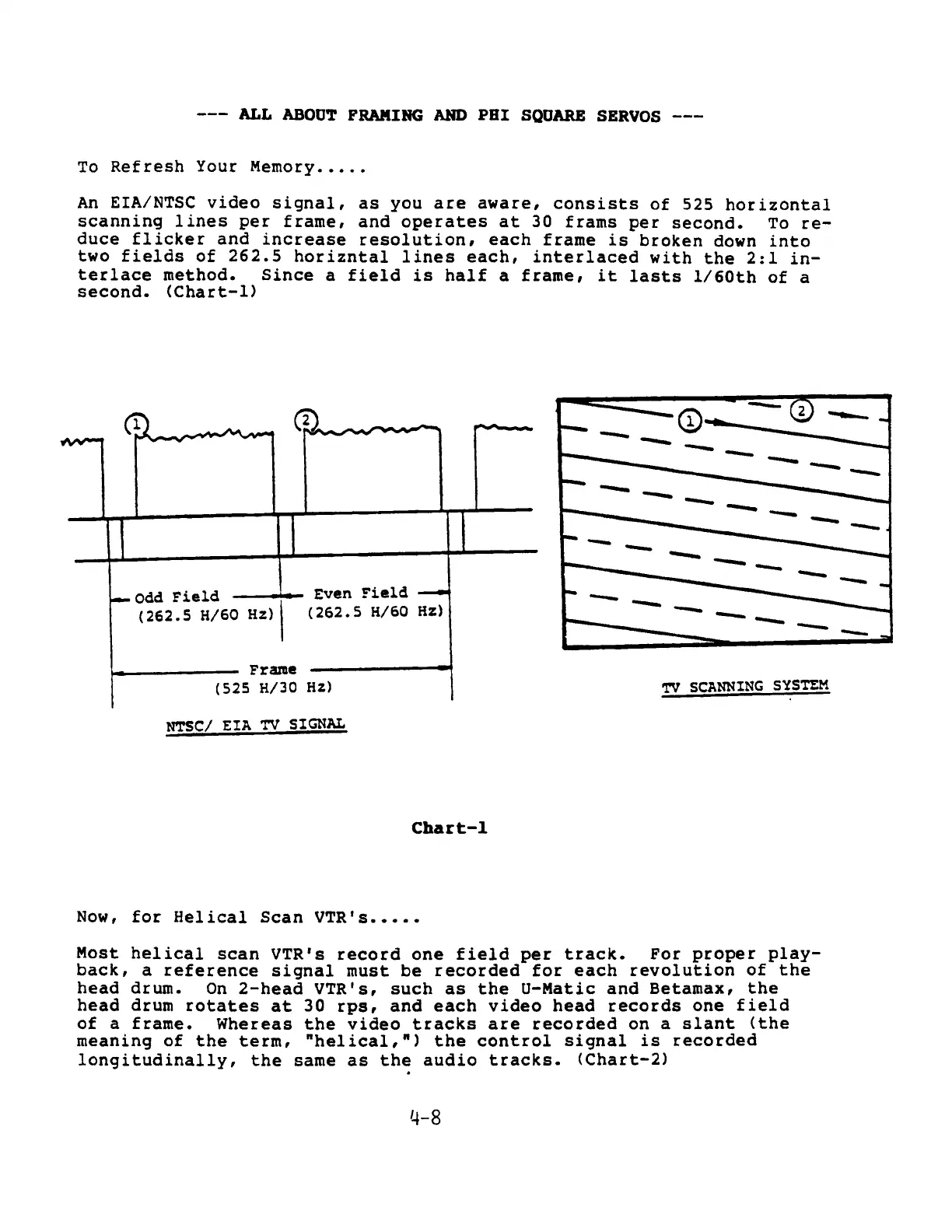

--- ALL ABOUT FRAMING AND PHI SQUARE SERVOS ---
To Refresh Your Memory.....
An EIA/NTSC video Signal, as you are aware, consists of 525 horizontal
scanning lines per frame, and operates at 30 frams per second. To re-
duce flicker and increase resolution, each frame is broken down into
two fields of 262.5 horizntal lines each, interlaced with the 2:1 in-
terlace method. Since a field is half a frame, it lasts 1/60th of a
second. (Chart-l)
re—___
“=
—_
|
1
(2)
™
—
O—-—_
=
5
—=
Ep
“em
ene
~
>
See
"sem
—-
eons
—..,
=
Pe
—
eee
“sey
a
.
=
a,
_
Odd
Field
———emw—
Even
Field
—=¥
=
(262.5
H/60
Hz)
(262.5
H/60
Hz)
—
es
a
——_o
—
|
Frame
=
(525
H/30
Hz)
TV
SCANNING
SYSTEM
NTSC/
EIA
TV_SIGNAL
Chart-1l
Now, for Helical Scan VTR's.....
Most helical scan VTR's record one field per track. For proper play-
back, a reference signal must be recorded for each revolution of the
head drum. On 2-head VTR's, such as the U-Matic and Betamax, the
head drum rotates at 30 rps, and each video head records one field
of a frame. Whereas the video tracks are recorded on a slant (the
meaning of the term, "helical,") the control signal is recorded
longitudinally, the same as the audio tracks. (Chart-2)
4-8
