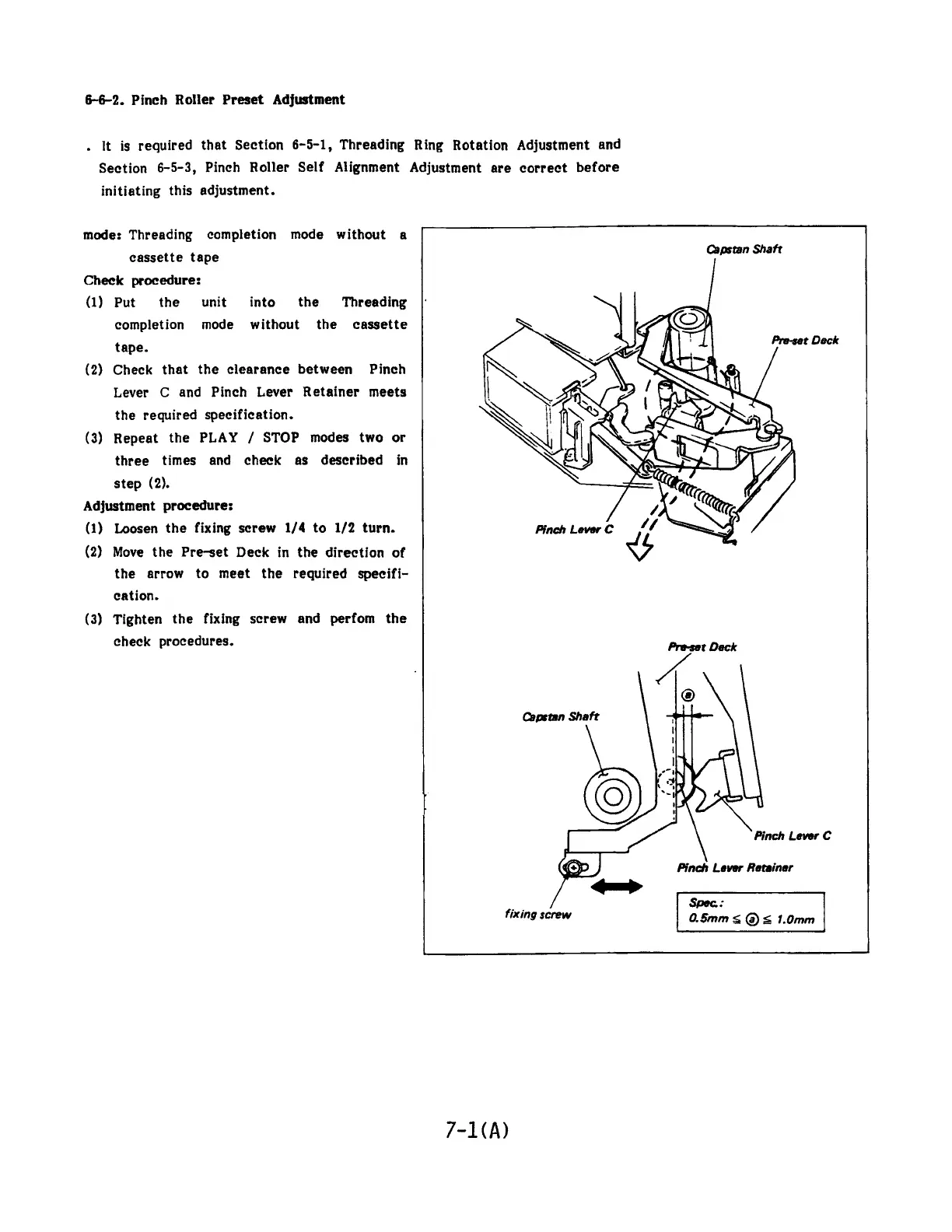

6-6-2. Pinch Roller Preset Adjustment
. It is required that Section 6-5-1, Threading Ring Rotation Adjustment and
Section 6-5-3, Pinch Roller Self Alignment Adjustment are correct before
initiating this adjustment.
mode: Threading completion mode without a
cassette tape
Check procedure:
(1) Put the unit into the
the cassette
Threading
completion mode _ without
tape.
(2) Check that the clearance between Pinch
Lever C and Pinch Lever Retainer meets
the required specification.
(3) Repeat the PLAY / STOP modes two or
three times and check as described in
step (2).
Adjustment procedure:
(1) Loosen the fixing screw 1/4 to 1/2 turn.
(2) Move the Pre-set Deck in the direction of
the arrow to meet the required specifi-
cation.
(3) Tighten the fixing screw and perfom the
check procedures.
Capstan Shaft
Pinch LeverC 204
Capstan Shaft
Pinch Lever C
Pinch Lever Retainer
fixing screw
Spec. :
0.5mm s @ Ss 1.0mm
7-1(A)
