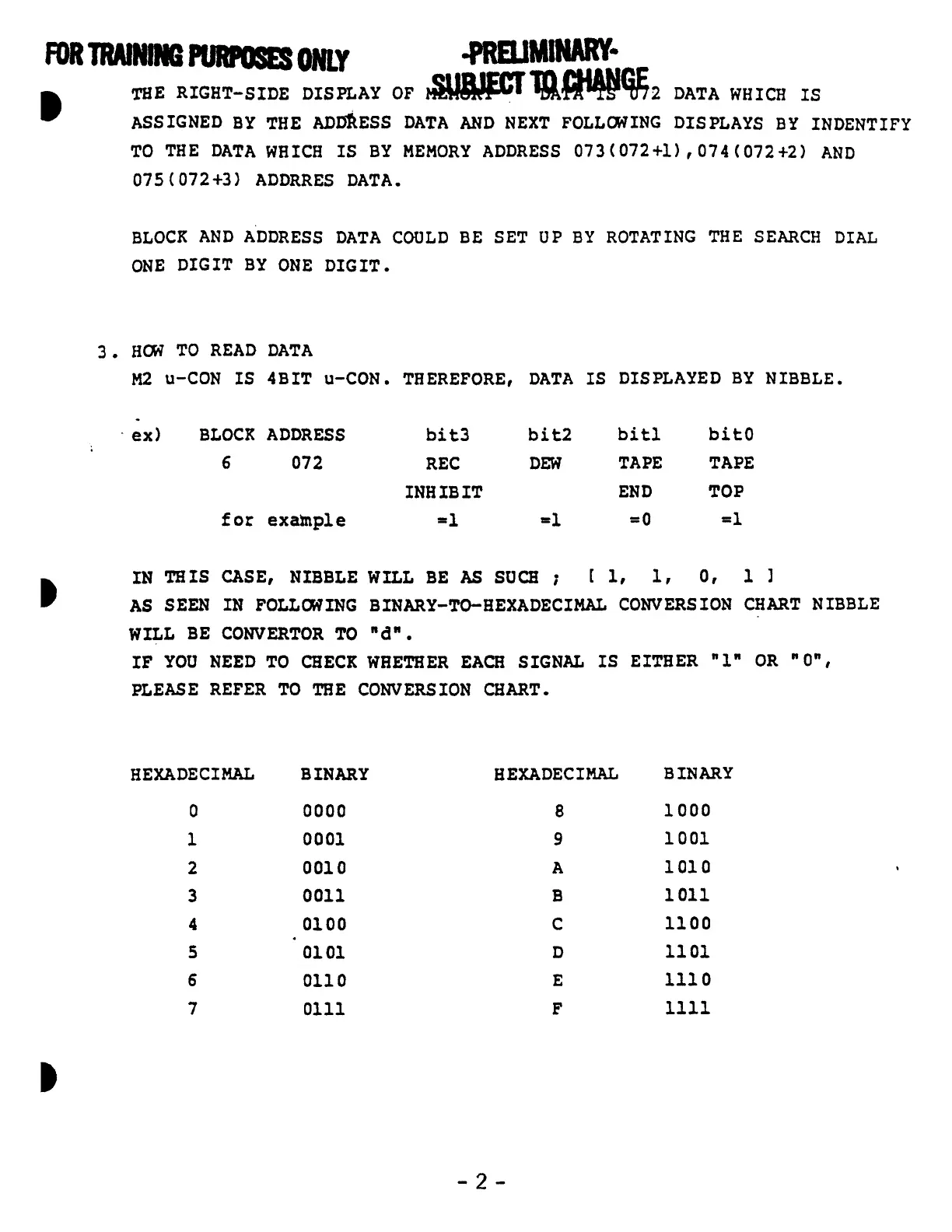

THE RIGHT-SIDE DISPLAY OF SUBJECT TO CHANGE DATA WHICH IS
ASSIGNED BY THE ADDRESS DATA AND NEXT FOLLOWING DISPLAYS BY INDENTIFY
TO THE DATA WHICH IS BY MEMORY ADDRESS 073(072+1) ,074(072+2) AND
075(072+3) ADDRRES DATA.
BLOCK AND ADDRESS DATA COULD BE SET UP BY ROTATING THE SEARCH DIAL
ONE DIGIT BY ONE DIGIT.
HOW TO READ DATA
M2 u-CON IS 4BIT u-CON. THEREFORE, DATA IS DISPLAYED BY NIBBLE.
-ex) | BLOCK ADDRESS bit3 bit2 bitl bite
6 072 REC DEW TAPE TAPE
INHIBIT END TOP
for example =] =] =0 =]
IN THIS CASE, NIBBLE WILL BE AS SUCH; [1, 1, 0, 11]
AS SEEN IN FOLLOWING BINARY-TO-HEXADECIMAL CONVERSION CHART NIBBLE
WILL BE CONVERTOR TO "d".
IF YOU NEED TO CHECK WHETHER EACH SIGNAL IS EITHER "1" OR "0",
PLEASE REFER TO THE CONVERSION CHART.
HEXADECIMAL § BINARY HEXADECIMAL BINARY
0 0000 8 1000
1 0001 9 1001
2 0010 A 1010
3 0011 B 1011
4 0100 C 1100
5 “0101 D 1101
6 0110 E 1110
7 0111 F 1111
