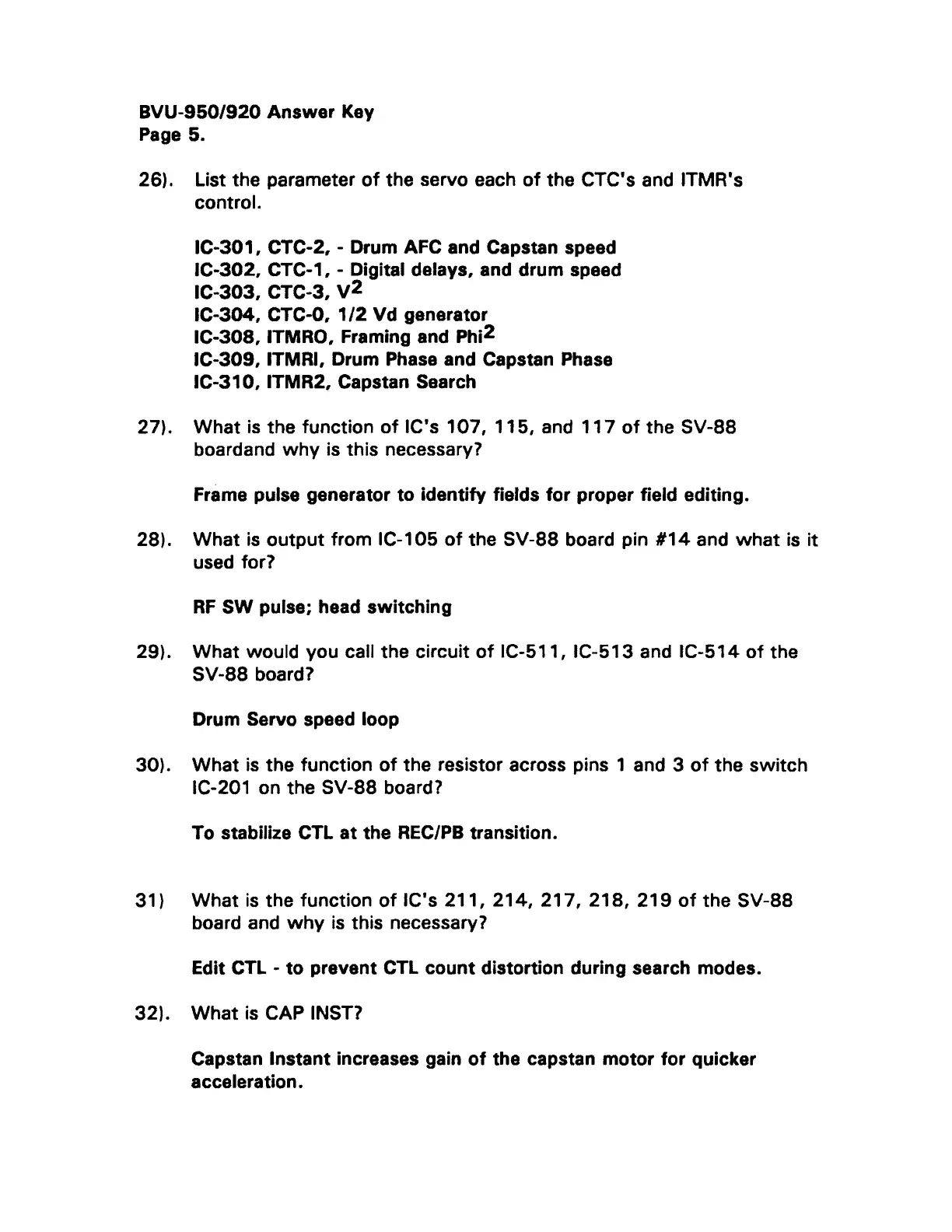

BVU-950/920
Answer
Key
Page
5.
26).
27).
28).
29).
30).
31)
32).
List
the
parameter
of
the
servo
each
of
the
CTC's
and
ITMR's
control.
IC-301,
CTC-2,
-
Drum
AFC
and
Capstan
speed
IC-302,
CTC-1,
-
Digital
delays,
and
drum
speed
IC-303,
CTC-3,
V2
IC-304,
CTC-O,
1/2
Vd
generator
IC-308,
ITMRO,
Framing
and
Phi2
IC-309,
ITMRI,
Drum
Phase
and
Capstan
Phase
IC-310,
ITMR2,
Capstan
Search
What
is
the
function
of
IC's
107,
115,
and
117
of
the
SV-88
boardand
why
is
this
necessary?
Frame
pulse
generator
to
identify
fields
for
proper
field
editing.
What
is
output
from
IC-105
of
the
SV-88
board
pin
#14
and
what
is
it
used
for?
RF
SW
pulse;
head
switching
What
would
you
call
the
circuit
of
IC-511,
IC-513
and
IC-514
of
the
SV-88
board?
Drum
Servo
speed
loop
What
is
the
function
of
the
resistor
across
pins
1
and
3
of
the
switch
IC-201
on
the
SV-88
board?
To
stabilize
CTL
at
the
REC/PB
transition.
What
is
the
function
of
IC's
211,
214,
217, 218,
219
of
the
SV-88
board
and
why
is
this
necessary?
Edit
CTL
-
to
prevent
CTL
count
distortion
during
search
modes.
What
is
CAP
INST?
Capstan
Instant
increases
gain
of
the
capstan
motor
for
quicker
acceleration.
