Sony BVU-950 - Page 90

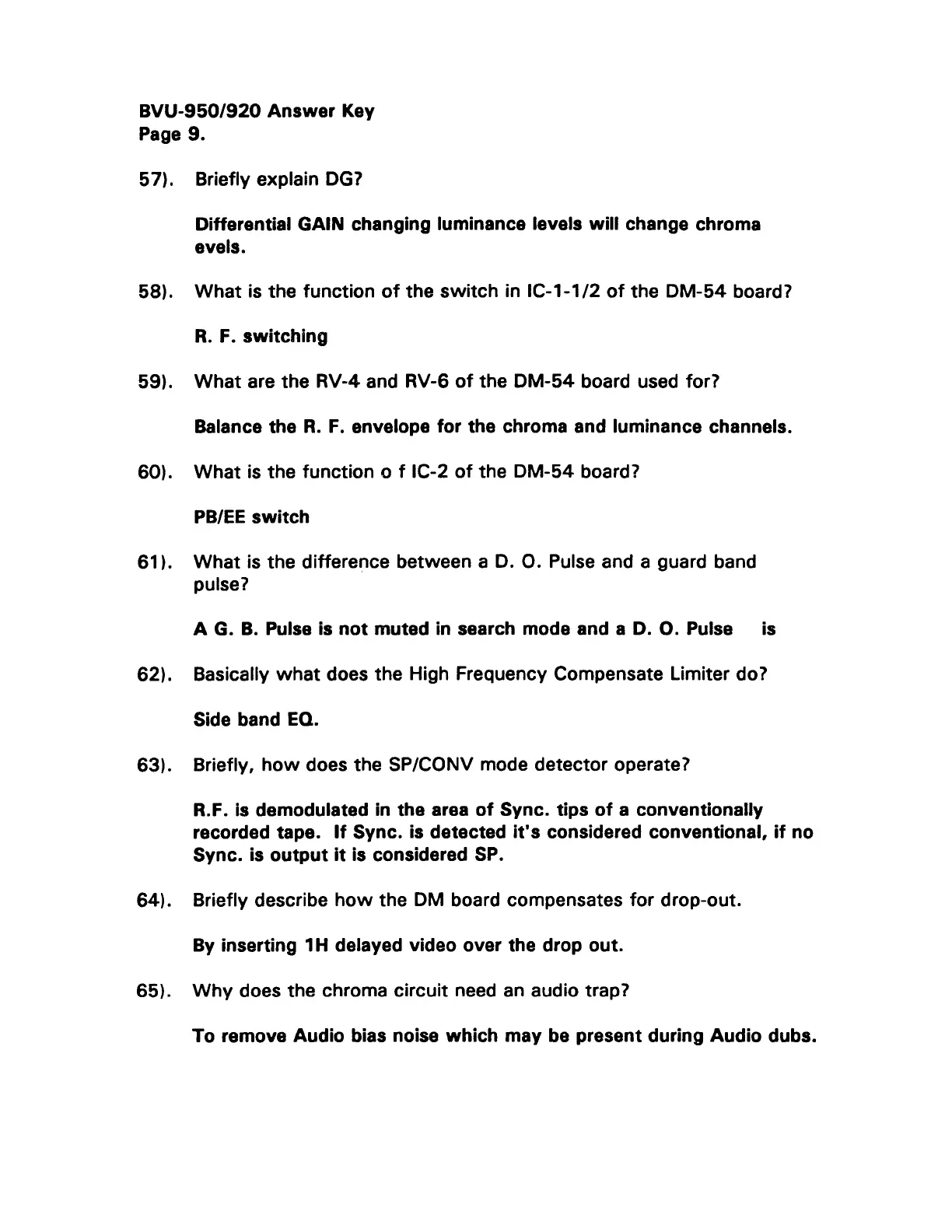

BVU-950/920 Answer Key
Page 9.
57).
58).
59).
60).
61).
62).
63).
64).
65).
Briefly explain DG?
Differential GAIN changing luminance levels will change chroma
eveils.
What is the function of the switch in IC-1-1/2 of the DM-54 board?
R. F. switching
What are the RV-4 and RV-6 of the DM-54 board used for?
Balance the R. F. envelope for the chroma and luminance channels.
What is the function o f IC-2 of the DM-54 board?
PB/EE switch
What is the difference between a D. QO. Pulse and a guard band
pulse?
A G. B. Pulse is not muted in search mode and a D. QO. Pulse _ is
Basically what does the High Frequency Compensate Limiter do?
Side band EQ.
Briefly, how does the SP/CONV mode detector operate?
R.F. is demodulated in the area of Sync. tips of a conventionally
recorded tape. If Sync. is detected it's considered conventional, if no
Sync. is output it is considered SP.
Briefly describe how the DM board compensates for drop-out.
By inserting 1H delayed video over the drop out.
Why does the chroma circuit need an audio trap?
To remove Audio bias noise which may be present during Audio dubs.
