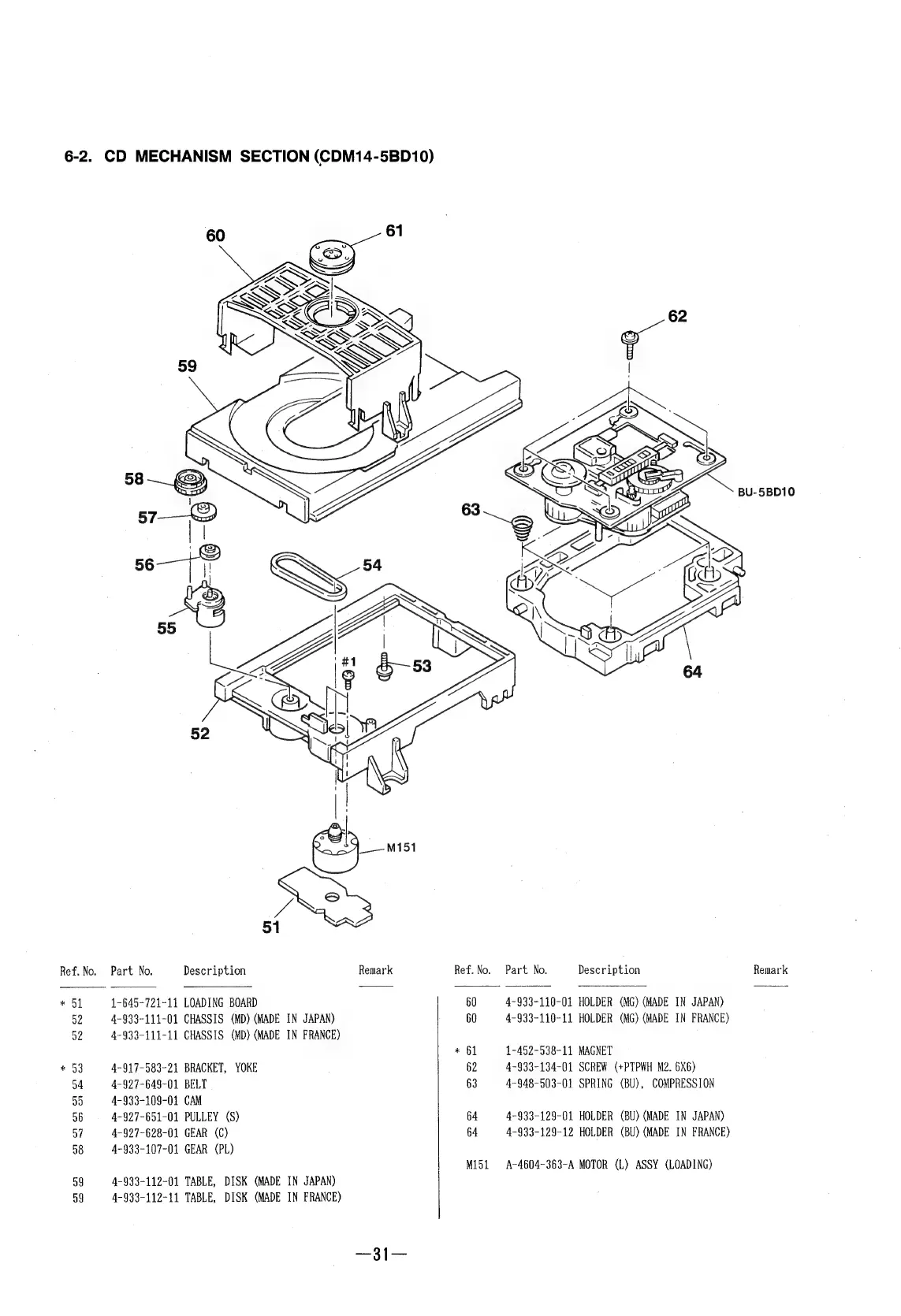

6-2. CD MECHANISM SECTION (CDM14-5BD10)
Remark
4-933-111-11 CHASSIS (MD) (MADE IN FRANCE)
Ref. No. Part No. Description
* Oo] 1-645-721-11 LOADING BOARD
52 4-933-111-01 CHASSIS (MD) (MADE IN JAPAN)
52
* 53 4-917-583-21 BRACKET, YOKE
54 4-927-649-01 BELT
55 4-933-109-01 CAM
56 4-927-651-01 PULLEY (S)
57 4-927-628-01 GEAR (C)
58 4-933-107-01 GEAR (PL)
59 4-933-112-01 TABLE, DISK (MADE IN JAPAN)
59
4-933-112-11 TABLE, DISK (MADE IN FRANCE)
Ref. No.
60
60
+ 61
62
63
64
64
M151
Part No. Description Remark
4~933-110-01 HOLDER (MG) (MADE IN JAPAN)
4-933-110-11 HOLDER (MG) (MADE IN FRANCE)
1-452-538-11 MAGNET
4-933-134-01 SCREW (+PTPWH M2. 6X6)
4-948-503-01 SPRING (BU), COMPRESSION
4-933-129-01 HOLDER (BU) (MADE IN JAPAN)
4-933-129-12 HOLDER (BU) (MADE IN FRANCE)
A-4604-363-A MOTOR (L) ASSY (LOADING)
